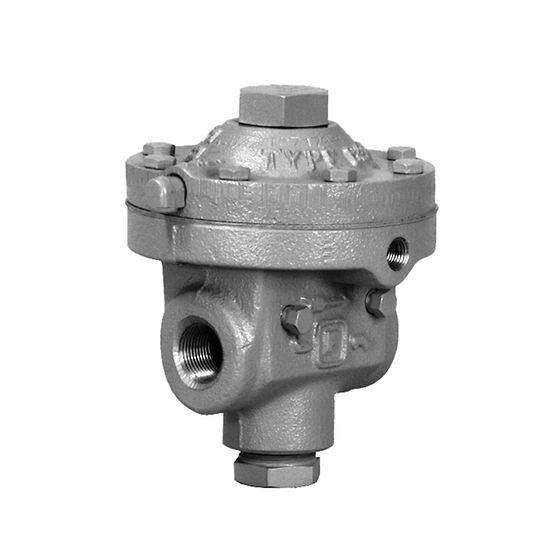

Fisher 634 Series High-Pressure Shutoff Valves
Rp123000.00
The Fisher Types 634 and 634M high-pressure shutoff valves are designed to provide effective overpressure protection by containment. The Type 634 shutoff valve, featuring internal pressure registration, is typically installed between a pressure-reducing regulator and downstream equipment. In contrast, the Type 634M shutoff valve, with external pressure registration, requires a control line and is installed upstream of a pressure-reducing regulator.
Key Features
Overpressure Protection Without Gas Discharge: Ensures safety by containing overpressure conditions.
Positive Shutoff: Provides reliable sealing to prevent leaks.
Versatile Applications: Suitable for various high-pressure systems.
Easy Maintenance: Simplified servicing for reduced downtime.
Specifications
Body Sizes and Connection Types: Available in 3/4-inch or 1-inch NPT.
Maximum Inlet Pressure: Rated up to 1500 psig (103 bar).
Maximum Outlet (Casing) Pressure:
Type 634: 150 psig (10.3 bar).
Type 634M: 1500 psig (103 bar).
Pressure Registration:
Type 634: Internal registration.
Type 634M: External registration (requires a control line).
Temperature Range: Operates in temperatures from -40°F to 180°F (-40°C to 82°C).
Weight: Approximately 10 pounds (4 kg).
