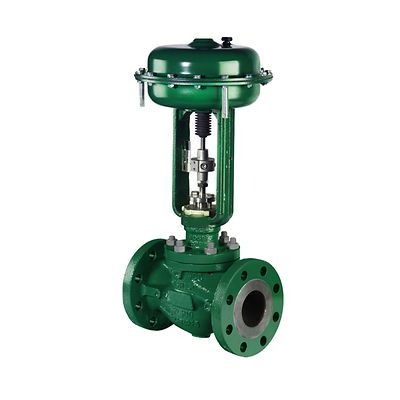

Fisher 3024C Pneumatic Diaphragm Actuator
Rp123000.00
The Fisher 3024C actuator is a compact, spring-opposed pneumatic diaphragm actuator designed for general-purpose operation of globe valves. It features a robust cast yoke mounting and positions the valve plug in response to varying pneumatic signals from controllers or valve positioners applied to the diaphragm. The actuator can be configured as either direct-acting or reverse-acting, offering reliable on/off or throttling control for automatic control valves.
Specifications
Actuation: Linear, Manual
Certifications: CUTR
Control Type: On/Off, Positioning, Throttling
Operating Temperature: Standard Temperature
Power Source: Pneumatic
Process Control: On/Off, Throttling
Valve Compatibility: Globe Valve
Additional Configurations: For more details or specific configurations, contact your local Emerson business partner or sales office.
Features
Versatile Configurations: Eight available sizes to suit various application needs.
Reversible Action: Easily switch between direct-acting and reverse-acting configurations without additional parts.
High Pressure Capacity: Molded diaphragm and durable casings support a maximum casing pressure of 6 bar, delivering high stem thrust for the diaphragm size.
Efficient Stem Connection: Split block stem connection ensures accurate motion transfer, easy installation, and eliminates lost motion or inaccuracies caused by linkages.
Robust Construction: Cast steel yoke and heavy-duty steel casings offer stability, corrosion resistance, long life, and protection against harsh conditions.
Material Selection: Designed for use across a wide range of ambient temperatures, ensuring adaptability.
Compact Design: Minimizes weight and space requirements, making it suitable for installations with limited space.
