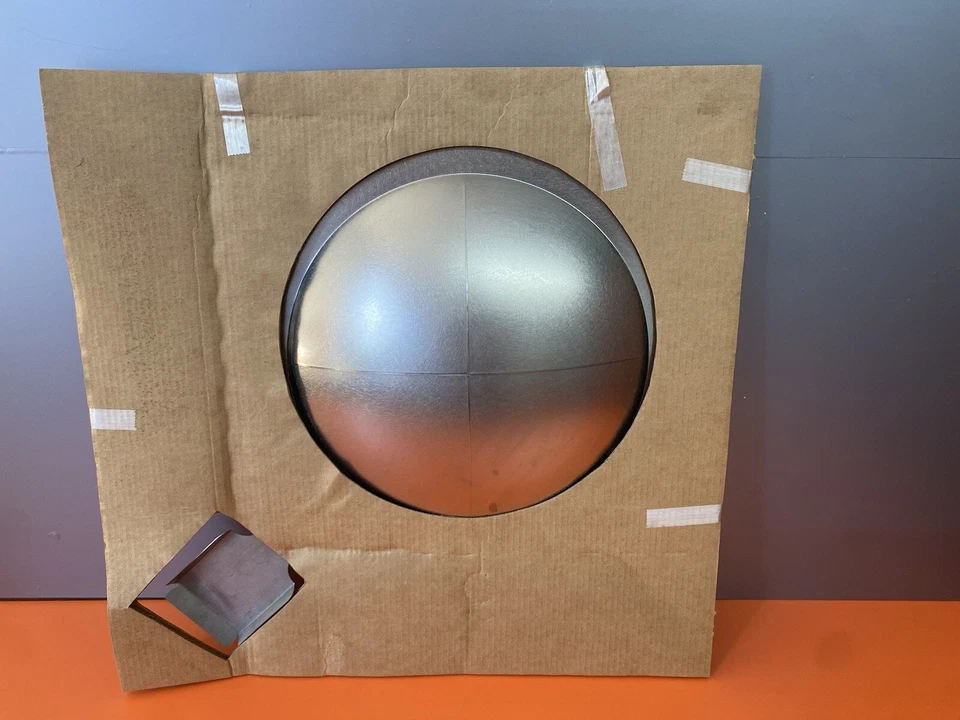

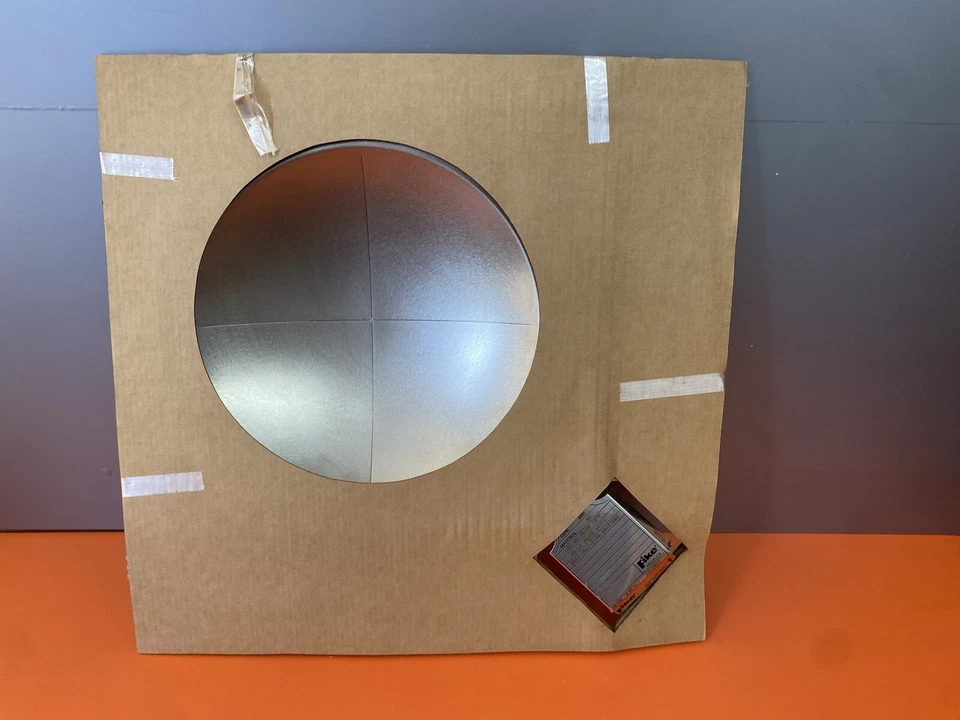

FIKE RUPTURE DISC 8" 101.5 PSIG SS
Rp123000.00
The Fike Rupture Disc is a pressure relief device designed to instantly and reliably rupture at a pre-defined burst pressure to protect equipment and personnel from overpressure conditions. With decades of industry leadership and patented G2 manufacturing technology, Fike rupture discs provide superior burst precision, longer service life, and increased operating ratios, reducing unplanned downtime and maximizing safety.

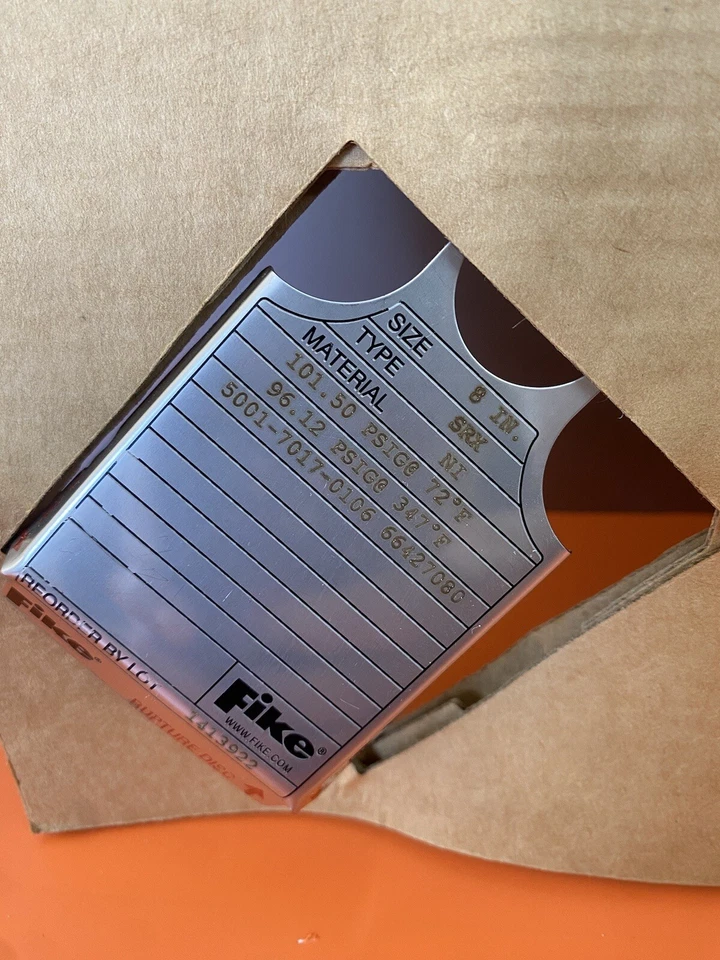

This specific unit is designed to rupture at 101.50 PSIG (7.00 BARG) at 72°F (22°C) with a nominal disc size of 8 inches (DN200). It is ideal for applications involving vapor, gas, or liquid media in a wide range of industries, including oil & gas, chemical processing, and industrial pressure systems.
Technical Specifications
Parameter | Specification |
Manufacturer | Fike |
Disc Type | Reverse Acting or Forward Acting (depending on model selection) |
Disc Size | 8" (DN200) |
Burst Pressure | 101.50 PSIG (7.00 BARG) at 72°F (22°C) |
Burst Tolerance | ± up to 5% (depending on disc series, per ASME specs) |
Operating Ratio | Up to 95% of minimum burst pressure (for advanced G2 models like AXIUS®/ATLAS®) |
Vacuum Resistance | Yes |
Fragmentation | Non-fragmenting (most models) |
Material Availability | Stainless Steel, Nickel Alloy, Monel, Hastelloy, Inconel (based on application) |
Temperature Rating | Suitable for ambient and elevated temperatures (range dependent on material) |
Process Media | Compatible with liquid, vapor, and gas |
Application Type | Overpressure Protection, Safety Relief, Pressure Activation |
Certifications | ASME UD stamp available, CE marked, ISO 4126, PED compliant |
