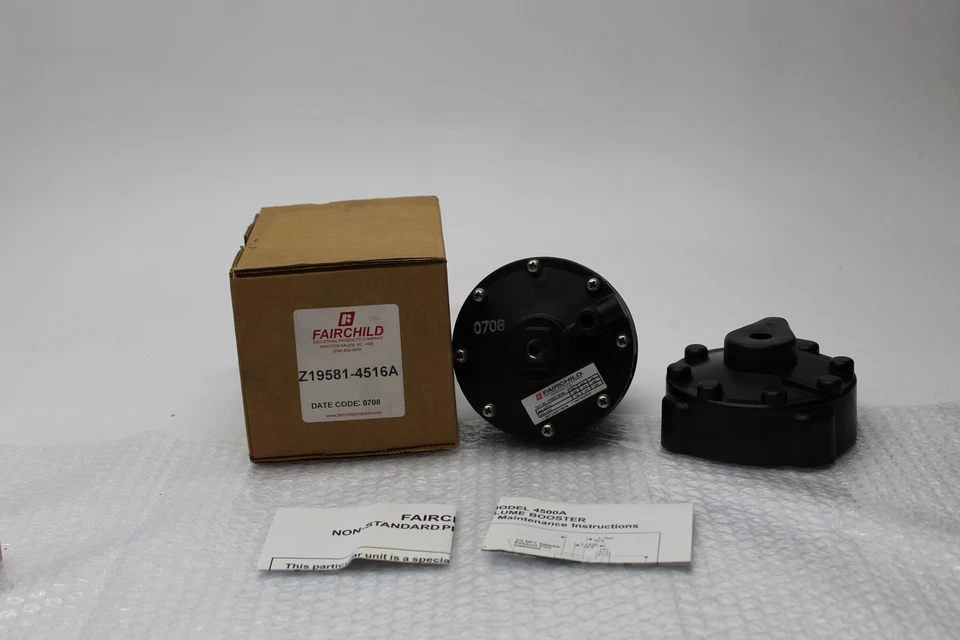

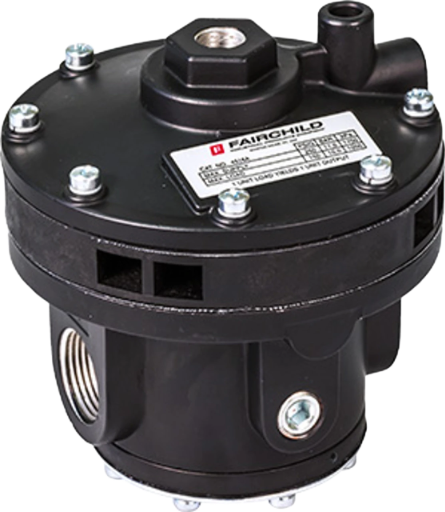

Fairchild Model 4516A Pneumatic Volume Booster

Description
The Fairchild Model 4516A Pneumatic Volume Booster, part of the 4500 Series, is engineered to provide high flow capacity and fast response in pneumatic control systems. Its pilot-operated regulator design allows it to handle supply pressures up to 250 psig (17 BAR) while maintaining precise signal-to-output pressure ratios. Compact, rugged, and highly reliable, this volume booster is ideal for improving the speed and responsiveness of control valves and other pneumatic actuators.

Specifications

• Manufacturer/Brand: Fairchild Products (Rotork)

• Model: 4516A (4500A Series)

• Type: Pneumatic Volume Booster

• Signal-to-Output Ratio: 1:1

• Accuracy: ±0.50 psi

• Sensitivity: 1 in. WC

• Ratio Accuracy: ±3% of 100 psi output span

• Flow Capacity: 150 SCFM (255 m³/hr) @ 100 psi supply / 20 psi set

• Exhaust Capacity: 40 SCFM (65.2 m³/hr) when downstream pressure is 5 psi above 20 psi setpoint

• Flow Coefficient (Cv): 3.0

• Maximum Supply Pressure: 250 psig (17 BAR)

• Maximum Output Pressure: 150 psig (10 BAR)

• Pressure Range: 0–150 psi

• Media: Clean, dry air or inert gases

• Connection Size: 3/4" FPT line and signal, 1/4" FPT gauge

• Body Material: Aluminum

• Elastomer: Nitrile on Dacron

• Exhaust Type: Straight (Standard)

• Mounting: Wall-mounted (requires bracket 20555-1)

• Ambient Temperature Range: -40°F to 200°F (-40°C to 93.3°C)

• Operation: Pneumatic pilot signal

• Options: None
