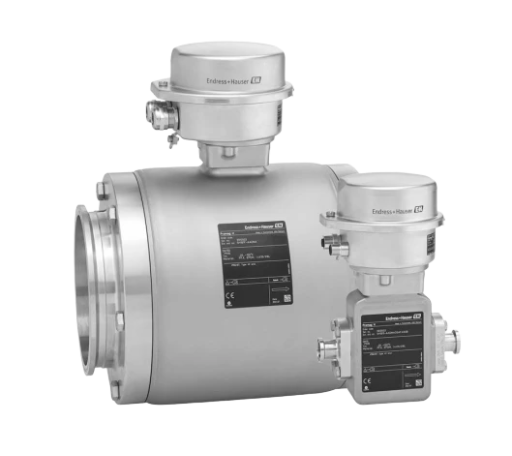

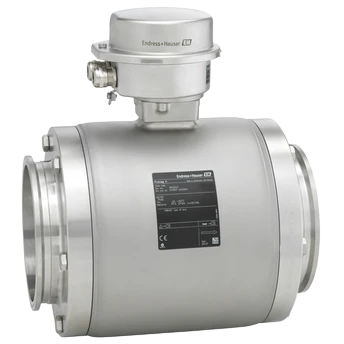

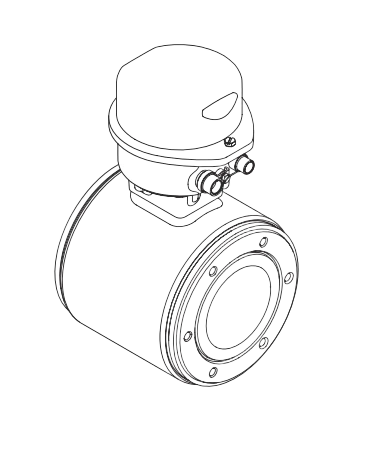

Endress+Hauser Proline Promag H 100 Electromagnetic Flowmeter
Rp123000.00
Endress+Hauser Proline Promag H 100 Electromagnetic Flowmeter
Product Description
The Endress+Hauser Proline Promag H 100 is a compact electromagnetic flowmeter specifically developed for hygienic applications. Equipped with an ultra-compact and robust transmitter, this device is ideal for installations with limited space while still delivering reliable and precise measurements.
Designed for the food & beverage and life sciences industries, the Promag H 100 supports multivariable measurement, including flow, temperature, and conductivity. All wetted parts are CIP/SIP cleanable and fully compliant with international hygienic standards, ensuring safe and contamination-free operation in demanding sanitary processes.
Measuring Principle
Electromagnetic
Application
Liquid measurement
Hygienic and sanitary processes
Food and beverage production
Pharmaceutical and life sciences industries
Key Benefits
Specialist flowmeter for hygienic applications
Ultra-compact transmitter for space-saving installation
Multivariable measurement: flow, temperature, and conductivity
No pressure loss and maintenance-free operation
Fully CIP/SIP cleanable wetted materials
High protection rating up to IP69
Integrated Heartbeat Technology for verification and traceability
Sensor Features
Flexible installation with a wide range of hygienic process connections
Energy-efficient measurement with unrestricted flow cross-section
No moving parts for maintenance-free operation
Integrated temperature measurement
Stainless steel sensor housing compliant with EHEDG and 3-A standards
Wetted materials suitable for CIP and SIP cleaning
Transmitter Features
Ultra-compact and robust transmitter design
Full functionality with minimal footprint
Integrated web server for fast commissioning and configuration
No additional software or hardware required
Integrated Heartbeat Technology
High degree of protection up to IP69
Optional local display
Technical Specifications
Nominal Diameter Range
DN 2 to DN 150 (¹⁄₁₂" to 6")
Measured Variables
Volume flow
Temperature
Conductivity
Mass flow
Corrected volume flow
Corrected conductivity
Measuring Range
0.06 dm³/min to 600 m³/h
(0.015 to 2,650 gal/min)
Measurement Accuracy
Standard: ±0.5 % of reading ± 1 mm/s (0.04 in/s)
Optional: ±0.2 % of reading ± 2 mm/s (0.08 in/s)
Wetted Materials
Liner: PFA
Electrodes:
1.4435 (316L)
Alloy C22 / 2.4602 (UNS N06022)
Tantalum
Platinum
Process Connections:
Stainless steel 1.4404 (316L)
PVDF
PVC adhesive sleeve
Seals:
O-ring seals (EPDM, FKM, Kalrez)
Aseptic molded seals (EPDM, FKM, silicone)
Grounding Rings:
1.4435 (316L)
Alloy C22 / 2.4602
Tantalum
Process Conditions
Medium Temperature Range
–20 to +150 °C (–4 to +302 °F)
Maximum Process Pressure
PN 40
ASME Class 150
JIS 20K
Ambient Temperature Range
–40 to +60 °C (–40 to +140 °F)
Housing Materials
Sensor Housing
Stainless steel 1.4301 (304), corrosion resistant
Transmitter Housing
Compact: AlSi10Mg, coated
Compact / ultra-compact: Stainless steel 1.4301 (304)
Degree of Protection
Standard: IP66/67, Type 4X enclosure
Optional: IP69
Display and Operation
Optional 4-line backlit display (no local operation)
Configuration via web browser and operating tools
Outputs
4–20 mA HART (active)
Pulse / frequency / switch output (passive)
Inputs
None
Digital Communication
HART
PROFIBUS DP
Modbus RS485
EtherNet/IP
PROFINET
Power Supply
DC 20 to 30 V
Approvals and Certifications
Hazardous Area Approvals
ATEX, IECEx, cCSAus, INMETRO, EAC
Product Safety
CE, C-Tick
Metrological Approvals
Calibration according to ISO/IEC 17025
Heartbeat Verification compliant with ISO 9001 requirements (TÜV attestation)
Marine Approvals
LR, DNV, ABS, BV
Pressure Approvals
PED, CRN
Material Certificate
EN 10204 3.1
Hygienic Approvals
EHEDG
3-A
FDA-compliant liner and seals
cGMP compliant
