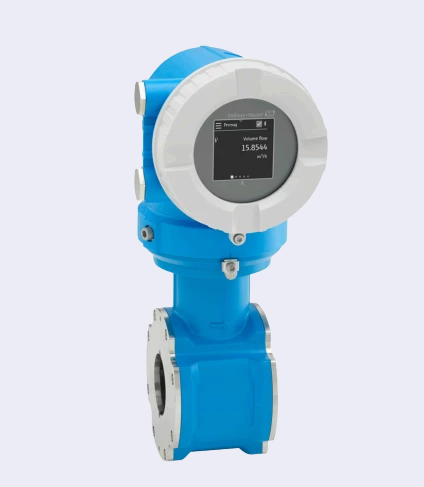

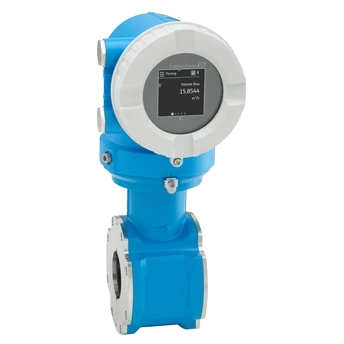

Endress+Hauser Proline Promag D 10 Electromagnetic Flowmeter

Endress+Hauser Proline Promag D 10 Electromagnetic Flowmeter

Product Description

The Endress+Hauser Proline Promag D 10 is a highly cost-effective electromagnetic wafer flowmeter designed for basic water applications. With its compact design and simple operating concept, it is especially suitable for installations with limited space and plastic piping systems.

This flowmeter provides reliable and accurate measurement while maintaining maintenance-free operation, as it has no moving parts and causes no pressure loss. Easy installation, intuitive operation, and international drinking water approvals make the Promag D 10 an ideal solution for economical water flow measurement.

Measuring Principle

Electromagnetic

Application

• Liquid measurement

• Basic water applications

• Utility water systems

• Installations with limited space

• Plastic pipe systems

Key Benefits

• Cost-effective solution for water flow measurement

• Compact wafer design with short face-to-face length

• No pressure loss and maintenance-free operation

• Easy and fast sensor centering

• Lightweight design for simple installation

• Intuitive operation via display or mobile device

• Integrated Heartbeat Technology for verification

Sensor Features

• Innovative housing design for easy and precise centering

• Energy-efficient measurement without flow restriction

• Maintenance-free design with no moving parts

• Short installation length and low sensor weight

• Integrated stainless steel grounding disks

• International drinking water approvals

Transmitter Features

• User-friendly operation via touch display or push buttons

• Mobile operation using SmartBlue App

• Guided parameterization for fast commissioning

• Integrated Heartbeat Technology for device verification

• Available in compact or remote versions

• HART communication support

Technical Specifications

Nominal Diameter Range

• DN 25 to DN 100 (1" to 4")

Measured Variables

• Volume flow

• Mass flow

Measuring Range

• 9 dm³/min to 282 m³/h

• (2.5 to 1,250 gal/min)

Measurement Accuracy

• ±0.5 % of reading ± 1 mm/s (0.04 in/s)

Wetted Materials

• Liner: Polyamide

• Electrodes: 1.4435 (316L)

Process Conditions

Medium Temperature Range

• 0 to +60 °C (+32 to +140 °F)

Maximum Process Pressure

• PN 16

• ASME Class 150

• JIS 10K

Ambient Temperature Range

• –40 to +60 °C (–40 to +140 °F)

Housing Materials

Sensor Housing

• DN 25 to 100: AlSi10Mg, coated

Transmitter Housing

• Polycarbonate

• AlSi10Mg, coated

Degree of Protection

• Compact version: IP66/67, Type 4X

• Remote sensor version: IP66/67, Type 4X

Display and Operation

• LCD display with touch function and auto-rotate

• Local operation and mobile device configuration supported

Outputs

• 4–20 mA HART (active/passive)

• Pulse / frequency / switch output

• Modbus RS485

• 4–20 mA

Digital Communication

• HART

• Modbus RS485

Power Supply

• DC 24 V

• AC 100 to 230 V

• AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals and Certifications

Hazardous Area Approvals

• CSA

• General Purpose (GP)

Metrological Approvals

• Calibration according to ISO/IEC 17025

• Heartbeat Technology compliant with ISO 9001:2015 (TÜV SÜD)

Hygienic / Drinking Water Approvals

• International drinking water approvals
