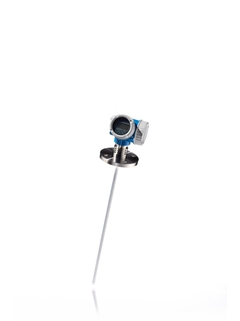

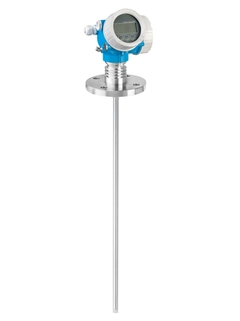

Endress+Hauser Levelflex FMP52 – Guided Radar Level Transmitte
Rp123000.00
Description
The Endress+Hauser Levelflex FMP52 is a premium guided radar level transmitter designed for continuous measurement of liquids, pastes, and slurries, including interface applications. Equipped with a chemically resistant, gap-free PFA-coated probe, all wetted parts are FDA-listed materials, ensuring compliance with hygienic and food industry requirements. The device delivers reliable measurements even in challenging process conditions, such as changing media properties, fluctuating temperatures, gas blankets, vapors, or agitated surfaces. Available with rod or rope probes, the FMP52 offers maximum versatility for tanks up to 45 m in height. Advanced features such as Heartbeat Technology, Multi-Echo Tracking, HistoROM data management, and optional Bluetooth® connectivity ensure ease of commissioning, diagnostics, and maintenance, while meeting SIL3 and WHG safety standards.
Technical Specifications
Parameter | Specification |
Measuring Principle | Guided radar (Time-of-Flight) |
Applications | Continuous level measurement of liquids, pastes, slurries; interface measurement; suitable for aggressive/corrosive media |
Probes | Rod probe (up to 4 m), Rope probe (up to 45 m) |
Accuracy | Rod probe: ±2 mm (0.08 in) |
Max. Measuring Distance | Rod: 4 m (13 ft), Min. DK > 1.6 |
Ambient Temperature | −40 to +80 °C (−40 to +176 °F) |
Process Temperature | −50 to +200 °C (−58 to +392 °F) |
Process Pressure / Max. Overpressure | Vacuum to 40 bar (Vacuum to 580 psi) |
Main Wetted Materials | Rod probe: 304, 304L, 316L, PTFE, PFA |
Process Connections | Flange: ASME 1-1/2"…6", DN50…DN100, JIS 10K |
Communication | 4–20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Bluetooth® (optional) |
Safety & Design Approvals | SIL (IEC 61508 up to SIL3), WHG overfill prevention, EN 10204-3.1, ASME B31.1/B31.3, AD2000 |
Hygienic Approvals | 3A, EHEDG |
Marine Approvals | GL, ABS, LR, BV, DNV |
Certificates / Approvals | ATEX, FM, CSA C/US, IECEx, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex |
Special Features | Heartbeat Technology, Multi-Echo Tracking, HistoROM, RFID tag, Bluetooth® SmartBlue App support, Gas-tight feed-through, Remote sensor option (3 m cable) |
