Endress Hauser LevelFlex M FMP40
Rp123000.00

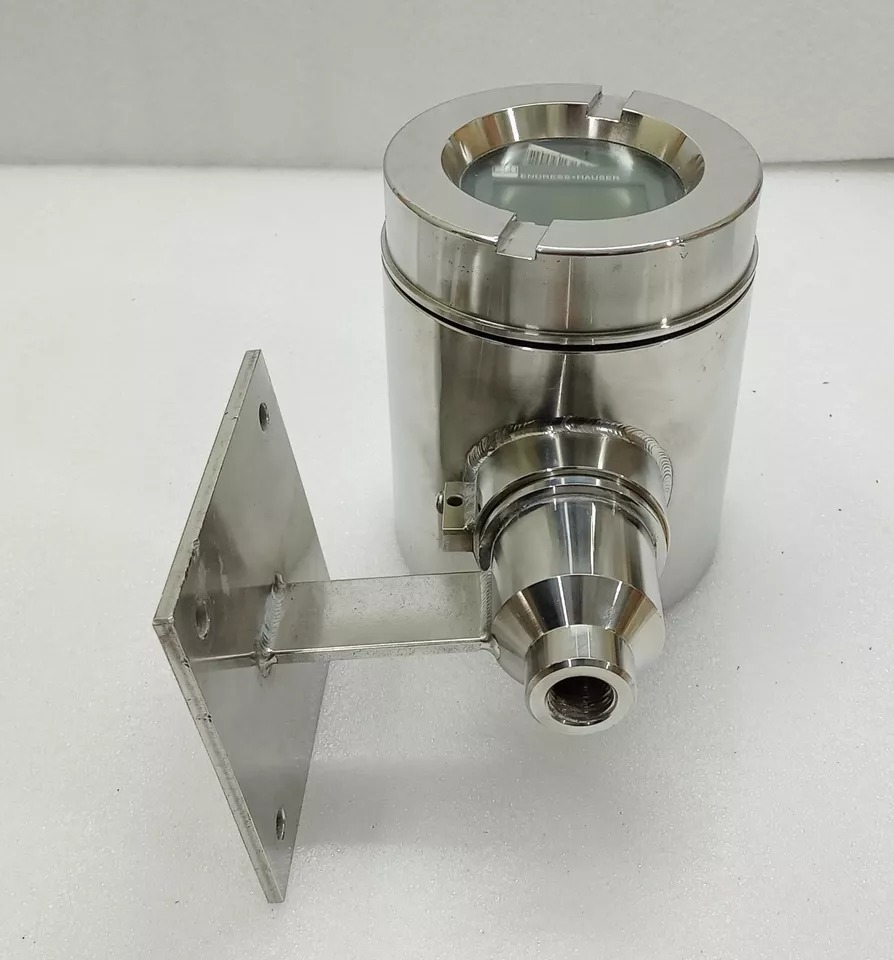

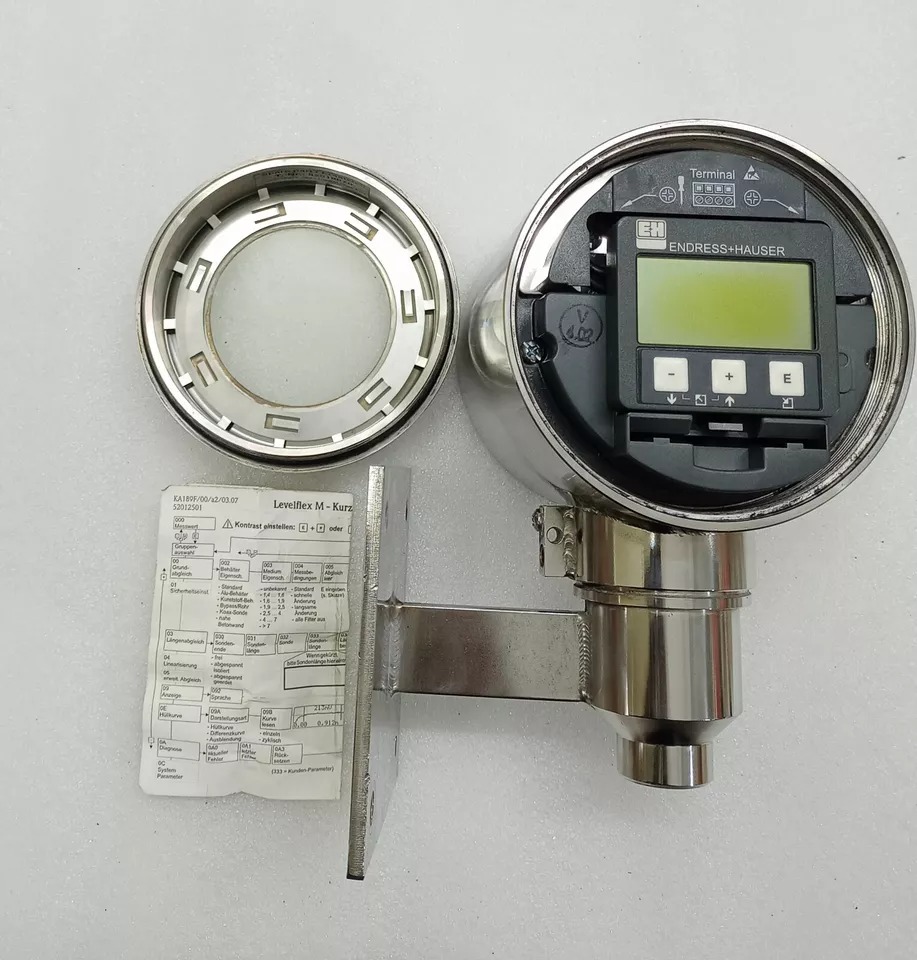

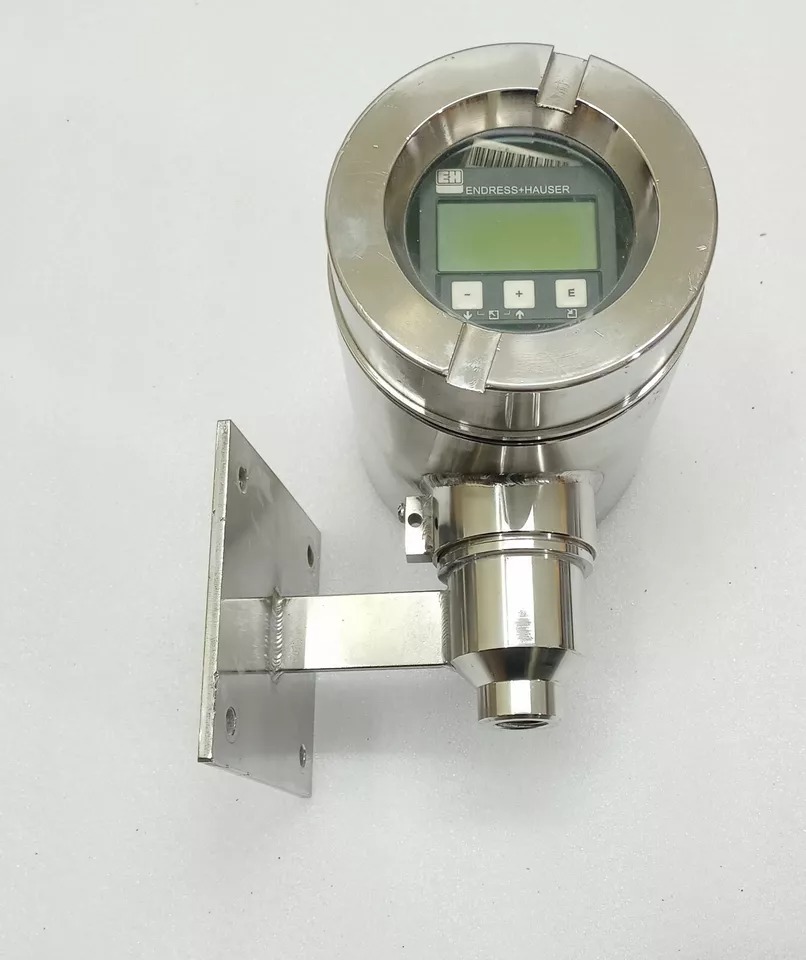

Endress Hauser LevelFlex M FMP40 Guided Wave Radar Level Transmitter
The Endress Hauser LevelFlex M FMP40 is a guided wave radar (GWR) level transmitter designed for precise and reliable level measurement of liquids, slurries, and solids in challenging process conditions. The LevelFlex M FMP40 offers a robust solution for continuous level measurement in industrial applications where high accuracy and durability are essential.
Leveraging guided wave radar technology, the FMP40 offers excellent performance even in the presence of vapors, foam, or agitation, providing accurate and reliable level measurement regardless of changing process conditions. It is widely used in industries such as chemicals, water and wastewater, food and beverage, and oil and gas.
Product Features
Guided Wave Radar Technology: The FMP40 uses high-frequency radar pulses that travel along the probe. When these pulses encounter the liquid or solid surface, they are reflected back to the sensor, enabling precise level measurement.
Non-Contact Measurement: This technology does not physically contact the medium, ensuring minimal wear and tear and reducing maintenance costs compared to mechanical or contact-based sensors.
Versatile Probe Options: The FMP40 offers a variety of probe configurations (coaxial, single rod, or twin rod) and lengths up to 30 meters, allowing it to suit a wide range of tank sizes and applications.
Suitable for a Wide Range of Applications: It is ideal for use in liquids, slurries, and solids measurement, including challenging applications with high temperatures, pressures, and corrosive substances.
Compact and Robust Design: With a rugged design, the FMP40 is built to withstand harsh industrial environments and provides reliable operation even in the most demanding conditions.
Minimal Maintenance: With no moving parts, the FMP40 minimizes maintenance requirements, offering a long service life and high operational reliability.
Wide Process Temperature and Pressure Ranges: The FMP40 is capable of withstanding temperatures up to 200°C (392°F) and pressures up to 40 bar (580 psi), making it suitable for a variety of process conditions.
Self-Diagnostics: The transmitter is equipped with self-diagnostics that continuously monitor the system's health, providing alerts for any issues that may arise, ensuring maximum uptime.
Multiple Output Options: The FMP40 supports 4-20 mA output with HART communication, along with Profibus PA and FOUNDATION Fieldbus options for seamless integration into existing control systems.
Simple Setup and Configuration: It features a local display for easy setup and configuration, allowing users to directly monitor and adjust the device settings without the need for additional tools.
Hazardous Area Approvals: The LevelFlex M FMP40 comes with certifications such as ATEX, FM, CSA, and IECEx, ensuring safe operation in hazardous environments.
Specifications
Model: Endress Hauser LevelFlex M FMP40
Measurement Technology: Guided Wave Radar (GWR)
Frequency Range: 6 GHz
Accuracy: ±5 mm (typical)
Measuring Range: Up to 30 meters (depending on probe configuration)
Process Temperature: -40°C to 200°C (-40°F to 392°F)
Process Pressure: Up to 40 bar (580 psi)
Probe Types: Coaxial, single rod, or twin rod
Probe Length: Customizable, up to 30 meters
Process Connection: Flanged, threaded, or custom configurations
Enclosure Rating: IP66/IP67 (or equivalent)
Power Supply: 24V DC (typical)
Output Signal: 4-20 mA with HART communication, Profibus PA, or FOUNDATION Fieldbus
Display: Local display for setup and diagnostics
Safety Certifications: ATEX, FM, CSA, IECEx, and other hazardous area approvals
Self-Diagnostics: Built-in diagnostics for system monitoring and issue detection
Temperature Compensation: Automatic temperature compensation for accurate measurements in varying conditions
Applications
The LevelFlex M FMP40 is perfect for continuous level measurement in a wide range of industrial processes, including:
Chemical Processing: For accurate liquid and slurry level measurement in reactors, storage tanks, and pipelines.
Oil & Gas: Level measurement in separators, storage tanks, and pipelines for oil and gas production.
Water & Wastewater: Level measurement in clarifiers, sedimentation tanks, and sludge management applications.
Food & Beverage: For level measurement in fermenters, brewing tanks, and storage vessels.
Pharmaceuticals: Monitoring liquid levels in reactors, storage tanks, and bioreactors.
Power Generation: Measuring levels in cooling towers, boiler feedwater tanks, and condensate storage.
Mining & Metals: For measuring slurry and solid levels in mining and smelting processes
