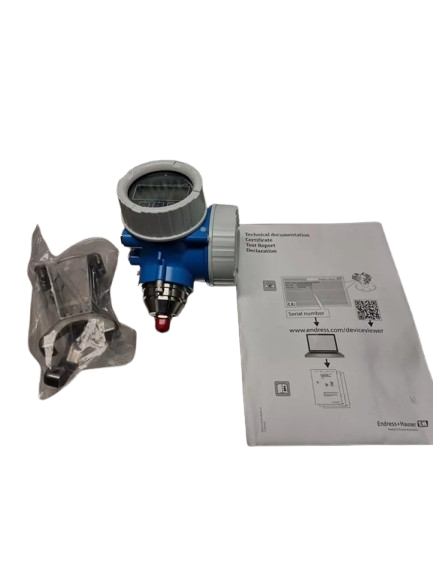

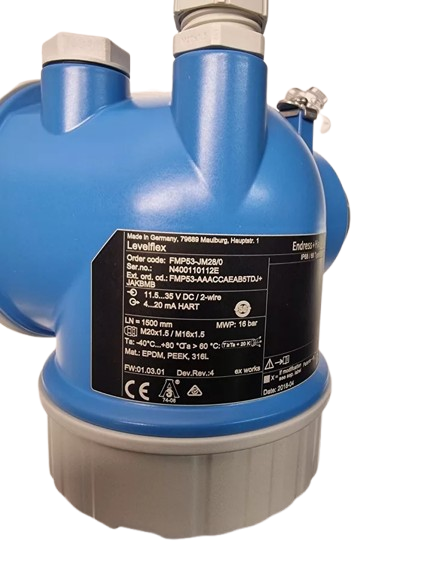

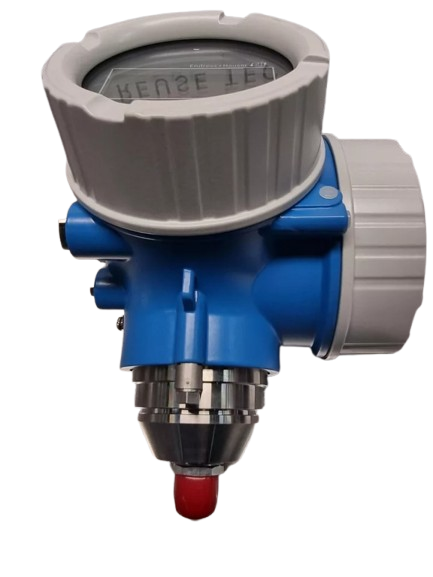

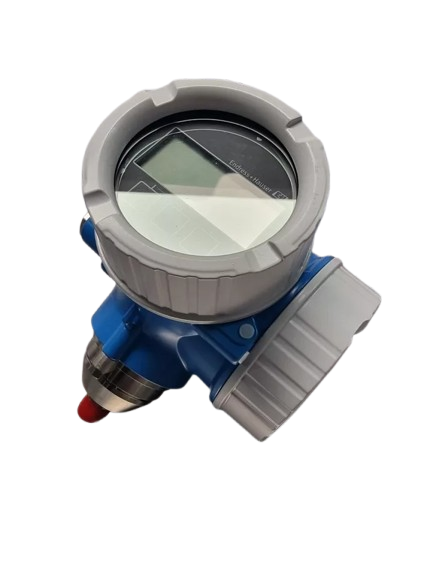

Endress Hauser Levelflex FMP53 Liquid Level Transmitter
Rp123000.00
The Endress Hauser Levelflex FMP53 is a guided wave radar (GWR) liquid level transmitter, designed to provide precise and reliable level measurements for liquid applications across various industries. It utilizes high-frequency radar waves, transmitted along a probe, to offer accurate, continuous liquid level measurement even in challenging process conditions. The FMP53 is part of the Levelflex series, a trusted name in level measurement technology, renowned for its ruggedness, flexibility, and performance.
This transmitter is widely used in industries such as chemical processing, oil & gas, water treatment, and food and beverage, where maintaining precise liquid level control is crucial for optimal operation and safety.
Product Features
Guided Wave Radar (GWR) Technology: The FMP53 uses radar technology, where electromagnetic pulses are sent along a probe. The time it takes for the pulses to reflect back from the liquid surface is measured to calculate the level accurately.
Non-Contact Measurement: As the radar pulses do not physically touch the liquid, this technology eliminates wear and tear issues associated with contact-based sensors, increasing the lifespan and reliability of the sensor.
High Accuracy and Reliability: The Levelflex FMP53 offers highly precise measurements, with an accuracy of ±5mm, providing real-time level data critical for process control.
Suitable for Challenging Applications: The FMP53 excels in measuring liquid levels in challenging process conditions such as extreme temperatures, high pressures, and aggressive chemicals, making it ideal for use in industrial applications.
Advanced Diagnostics: Equipped with built-in diagnostics, the transmitter ensures the early detection of issues, which allows for predictive maintenance and reduced downtime.
Flexible Installation: The FMP53 is available with different probe configurations, such as coaxial, single rod, or twin rod, to suit various installation requirements. Probe lengths can be customized to meet specific needs, with a maximum measurement range of up to 30 meters.
Versatile Output Options: The device provides 4-20 mA output with HART communication for easy integration into existing control systems. Optional communication protocols like Profibus PA and FOUNDATION Fieldbus are also available.
User-Friendly Interface: The Levelflex FMP53 features a local display that allows for simple setup and real-time monitoring of the device’s performance. This interface makes it easier to configure, adjust parameters, and perform diagnostics directly on-site.
Enhanced Performance in Liquids: The FMP53 is specifically designed for accurate level measurement in liquids, whether in storage tanks, reactors, or pipelines, providing consistent performance for various liquid types, including low-dielectric liquids.
Intrinsically Safe: It is certified for use in hazardous areas with ATEX, FM, and other international certifications, ensuring safe operation in environments where explosive atmospheres may exist.
Specifications
Model: Endress Hauser Levelflex FMP53 Liquid Level Transmitter
Measurement Technology: Guided Wave Radar (GWR)
Frequency Range: 6 GHz
Accuracy: ±5mm (typical)
Measuring Range: Up to 30 meters (depending on probe type and configuration)
Process Pressure: Up to 40 bar (580 psi)
Process Temperature: Typically up to 200°C (392°F), depending on the probe type
Probe Types: Coaxial, single rod, or twin rod
Process Connection: Flanged or threaded, with customizable configurations
Output Signal: 4-20 mA with HART communication (optional Profibus PA or FOUNDATION Fieldbus)
Enclosure Rating: IP66/IP67 (or equivalent)
Power Supply: 24V DC (typical)
Material Compatibility: Suitable for a wide range of liquid types, including aggressive chemicals and low-dielectric liquids
Communication: HART, Profibus PA, or FOUNDATION Fieldbus
Display: Local display for setup, monitoring, and diagnostics
Self-Diagnostics: Built-in diagnostics for early issue detection
Safety Certifications: ATEX, FM, CSA, IECEx, and other certifications for use in hazardous areas
Calibration: Automatic calibration function for optimal performance
Temperature Compensation: Automatic temperature compensation for consistent measurements across a wide temperature range
Applications
The Levelflex FMP53 is ideal for a variety of liquid level measurement applications in industries such as:
Chemical Processing: Accurate level control in reaction vessels, storage tanks, and pipelines for a wide range of chemical liquids.
Oil & Gas: Level measurement in separators, storage tanks, and other critical process areas.
Water & Wastewater: Ensuring precise level control in treatment tanks, clarifiers, and reservoirs for water and wastewater management.
Food & Beverage: Monitoring liquid levels in fermentation tanks, ingredient storage, and processing tanks in food production facilities.
Pharmaceuticals: Suitable for level measurement in bioreactors, mixing vessels, and storage tanks in pharmaceutical manufacturing.
Power Generation: Used for measuring liquid levels in cooling systems, boiler feedwater, and condensate tanks.
