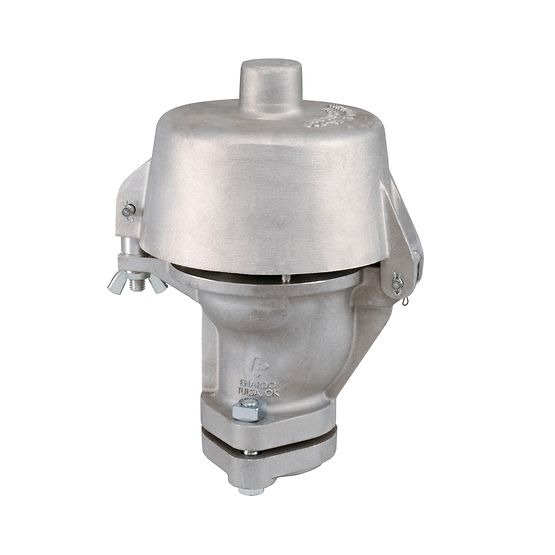

Enardo Series ES-905-PSO End-of-Line Pressure Vents

The Enardo™ ES-905 end-of-line vent valves are advanced, high-performance solutions for tank venting applications. These valves are designed to ensure tight sealing and complement the renowned Enardo ES-665 Series thief hatch product line. They offer exceptional durability and efficiency, meeting stringent industry standards.

Specifications

• Sizes: 2 inches to 4 inches

• Housing Materials: Aluminum

• Leakage Rate: Maximum of 0.1 SCFH at 90% of the set point

• Weight Materials: Zinc-plated carbon steel, lead

• Pallet Materials: Aluminum

• Seal and Gasket Materials: Buna-N, Viton

• Pressure Settings: Adjustable from 1.0 to 16.0 oz/sq in

Features

• Ultra-low leakage rate (≤ 0.1 SCFH at 90% of the set point)

• Multiple pressure setting options for versatile applications

• Viton gaskets available for handling corrosive environments

• Certified flow capacities compliant with API standards

• Optional coatings for enhanced protection in harsh environments
