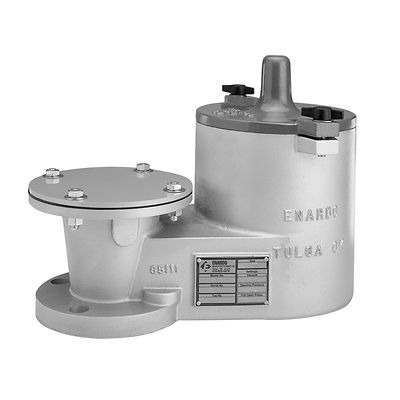

Enardo Series 952 High-Performance Top-Mount Vacuum Relief Valve
Rp123000.00
The Enardo Series 952 is a high-performance vacuum relief valve designed to provide reliable protection against positive overpressure, prevent air intake, and reduce evaporative product loss. This valve is engineered to contain odorous and hazardous vapors, making it particularly suitable for vent-to-atmosphere applications. Its robust construction and advanced technologies allow it to perform in extreme conditions, such as very cold ambient environments or when dealing with sticky materials.
Key Features
PPS Internal Parts: Offers superior corrosion protection, extending the life of the valve in harsh conditions.
Saber Guide System: Provides precise valve stroke control for enhanced reliability and accuracy.
Exceeds Leakage Standard: Designed to outperform standard valves, with leakage rates exceeding the 1 SCFH @ 90% set point.
Replaceable Pallet and Seat Assemblies: Allows for easy maintenance and long-term operation.
Flange Options: Available with ANSI, DIN, and JIS flanges to suit various installation requirements.
Certified: Compliant with EN 13463-1 and EN 13463-5 standards, ensuring high safety and performance standards.
Specifications
Sizes: 2 inches to 12 inches
Housing Materials: Aluminum, Ductile Iron, Stainless Steel, Carbon Steel
Leakage Rate: Exceeds the leakage standard of 1 SCFH @ 90% set point
Weight Materials: Zinc Plated Carbon Steel, Stainless Steel, Lead, Resin-Coated Stainless Steel
Seat and Pallet Materials: PPS, 316 Stainless Steel
Seal and Gasket Materials: Buna-N, FEP Teflon, Viton
Vacuum Settings: 0.5 to 32 oz/sq in
Options: Special Coating, Weight Material, Hardware, Gasket Material, FRP Resins, Steam Jacket, or Trace
