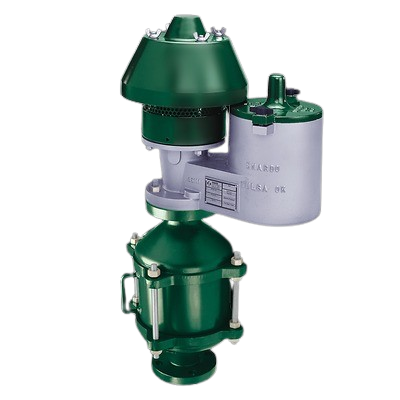

Enardo Series 950 Pressure Vacuum Relief Valve With Series 7 Flame Arrestor
Rp123000.00
The Enardo Series 950 is a high-performance pressure vacuum relief valve designed to surpass standard market offerings, particularly in extreme cold conditions and applications involving sticky materials. This valve ensures pressure and vacuum relief for normal venting while maintaining safe internal pressure levels, effectively reducing routine waste gas emissions into the atmosphere.
Features
Corrosion Resistance: PPS internal components provide superior protection against corrosion.
Precision Stroke Control: Saber Guide System ensures precise and reliable valve operation.
Leakage Performance: Exceeds industry leakage standards with 1 SCFH @ 90% of the set point.
Ease of Maintenance: Fully replaceable pallet and seat assemblies for extended service life.
Flange Compatibility: Available with ANSI, DIN, and JIS flanges for broad compatibility.
Certified Standards: Complies with EN 13463-1 and EN 13463-5 certifications for safety and performance.
Specifications
Sizes: 2 inches to 12 inches
Housing Materials: Aluminum, Ductile Iron, Stainless Steel, Carbon Steel
Leakage Rate: Exceeds 1 SCFH @ 90% set point
Weight Materials: Zinc Plated Carbon Steel, Stainless Steel, Lead, Resin Coated Stainless Steel
Seat and Pallet Materials: PPS, 316 Stainless Steel
Seal and Gasket Materials: Buna-N, FEP Teflon, Viton
Pressure Settings: 0.5 to 32 oz/sq in
Vacuum Settings: 0.5 to 32 oz/sq in
Available Options: Smart wireless monitoring, special coatings, weight material customizations, hardware options, gasket material variants, FRP resins, and steam jacket or trace options.
