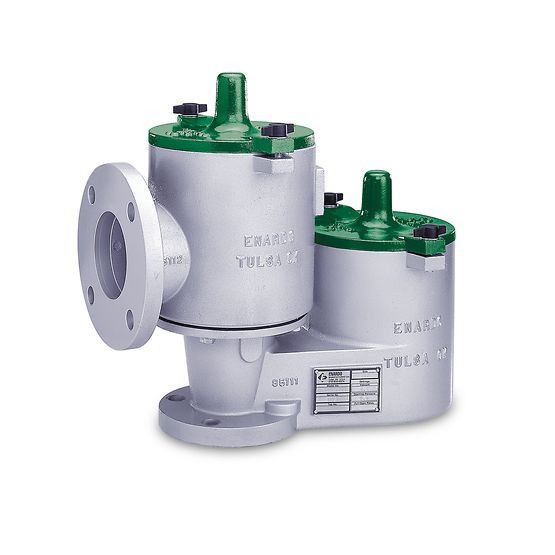

Enardo Series 850 High-Performance Pipe-Away Pressure Vacuum Relief Valves
Rp123000.00
The Enardo Series 850 is a high-performance pressure vacuum relief valve designed for applications where hazardous vapors need to be safely piped away, rather than released into the atmosphere. This valve excels in extremely cold ambient conditions and in applications involving sticky materials. It is ideal for industries requiring effective pressure and vacuum relief while minimizing environmental impact and ensuring safety.
Key Features
Superior Corrosion Protection: PPS internal parts provide excellent resistance to corrosion, ensuring longevity and reliability in harsh conditions.
Saber Guide System: A precision guide system for the valve stroke, ensuring smooth operation and reducing wear.
Low Leakage Rate: Exceeds the standard leakage rate of 1 SCFH at 90% set point, offering better performance than standard valves.
Replaceable Pallet and Seat Assemblies: The valve design allows for easy maintenance with fully replaceable pallet and seat components.
Certification: Meets EN 13463-1 and EN 13463-5 standards for explosion-proof applications.
Flange Options: Available with ANSI, DIN, and JIS flanges for diverse installation needs.
Smart Monitoring: Can be equipped with smart wireless monitoring for enhanced operational control.
Specifications
Sizes: 2" through 12"
Housing Materials: Aluminum, Ductile Iron, Stainless Steel, Carbon Steel
Leakage Rate: Exceeds the leakage standard of 1 SCFH @ 90% set point
Weight Materials: Zinc Plated Carbon Steel, Stainless Steel, Lead, Resin Coated Stainless Steel
Seat and Pallet Materials: PPS, 316 Stainless Steel
Seal and Gasket Materials: Buna-N, FEP Teflon, Viton
Pressure Settings: 0.5 to 32 oz/sq in
Vacuum Settings: 0.5 to 32 oz/sq in
Options:
Smart Wireless Monitoring
Special Coatings
Various Weight Materials
FRP Resins
Steam Jacket or Trace Heating
