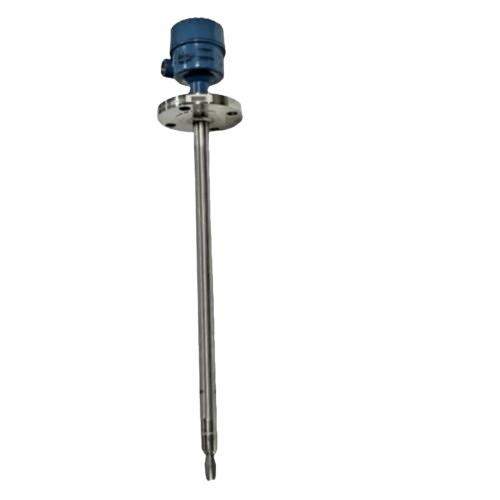

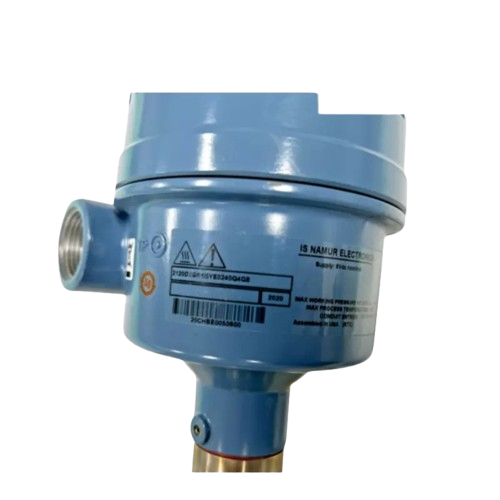

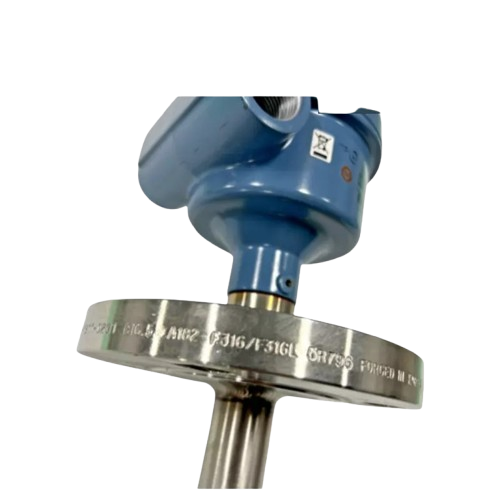

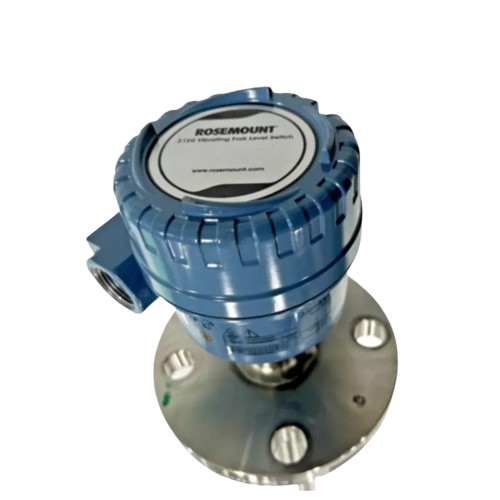

Emerson Rosemount 2120 Vibrating Level Switch
Rp123000.00
Description:
The Emerson Rosemount 2120 Vibrating Level Switch is a highly reliable, easy-to-install, and versatile instrument designed to provide precise level detection for both solids and liquids in a wide range of industrial applications. Utilizing vibrating fork technology, this switch offers quick response times and is ideal for monitoring levels in tanks, silos, and vessels.
The Rosemount 2120 is particularly suited for applications involving bulk solids, viscous liquids, and slurries. Its vibrating fork principle ensures high accuracy, minimal maintenance, and low susceptibility to changes in process conditions like density, pressure, and temperature. This makes the 2120 an excellent choice for applications in industries such as chemical processing, oil and gas, food and beverage, pharmaceutical, and water treatment.
Key Features:
Vibrating Fork Technology: Provides reliable and continuous level measurement for both solids and liquids, ensuring accurate switching.
Quick Response: Fast response time to level changes, making it ideal for critical level detection applications.
Versatile Application: Suitable for a wide range of materials, including bulk solids, slurries, and viscous liquids.
Reliable Performance: Minimizes false triggers and ensures stable operation in harsh environments with varying process conditions.
Easy Installation: Simple setup with no need for calibration, offering reduced installation time and costs.
Robust Design: Resistant to build-up and coating on the sensor, ensuring long-term reliability even in tough conditions.
Fail-Safe Design: Features a fail-safe design that ensures safe operation in the event of a system malfunction.
Flexible Mounting: Can be mounted in a variety of positions including top, side, or bottom of tanks and vessels.
Low Maintenance: Minimal moving parts and no need for regular calibration or adjustment.
User-friendly: The device is easy to operate, offering intuitive configuration via external controls.
Technical Specifications:
Technology: Vibrating Fork (Vibrating Level Switch)
Process Temperature: -40°C to 150°C (-40°F to 302°F)
Process Pressure: Up to 40 bar (580 psi)
Switching Output: SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) depending on the model.
Material Wetted Parts: Available in 316L Stainless Steel, Hastelloy C, PTFE, and other materials for corrosion resistance.
Power Supply: 24 VDC or 115/230 VAC (depending on model)
Signal Output: Relay output, available with either a NO (Normally Open) or NC (Normally Closed) configuration.
Mounting Type: Threaded, flanged, or hygienic mounting options
Enclosure Rating: IP66 (Dust and water protection)
Process Connection: 1-1/2" NPT, flanged, or tri-clamp
Fork Length: Multiple lengths available for different tank and vessel sizes
Approvals: CE, ATEX, FM, and other relevant certifications based on model and application.
Diagnostics: Real-time diagnostics for reliable operation and minimal downtime.
Fork Material: Typically made from 316 Stainless Steel with optional coatings for corrosion resistance.
Applications:
Bulk Solids: Level detection in silos, hoppers, and storage bins for materials such as grains, powders, and pellets.
Liquids and Slurries: Ideal for monitoring levels in tanks and vessels containing liquids, chemicals, and slurries.
Food & Beverage: Used for monitoring ingredients, liquids, and powders in food processing applications.
Chemical Processing: Suitable for controlling and monitoring hazardous chemicals in reactors, storage tanks, and pipelines.
Oil & Gas: Level monitoring in separators, storage tanks, and pipelines in upstream and downstream applications.
Water & Wastewater: Detects high and low levels in tanks, sumps, and clarifiers for water treatment.
Pharmaceutical: Used in applications where sanitary conditions are essential, such as pharmaceutical tanks and mixing vessels.
