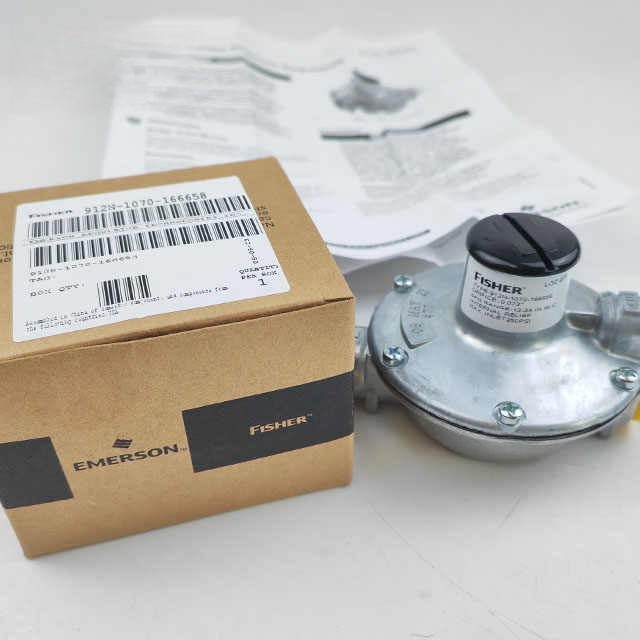

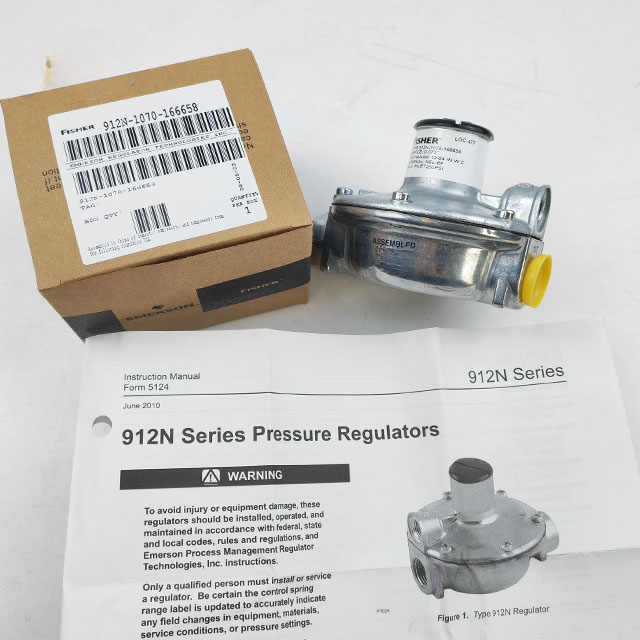

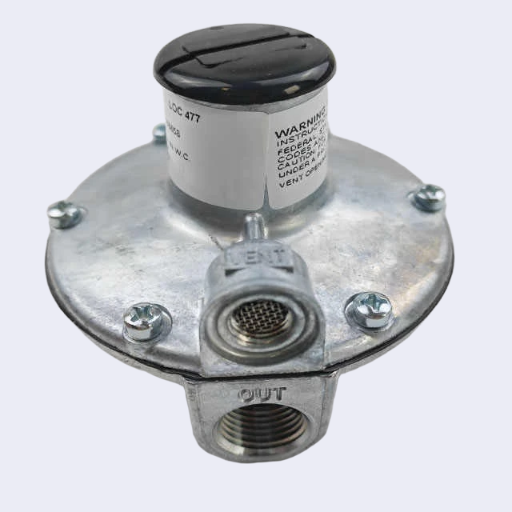

Emerson Fisher Accurate and Sensitive Control 912N Series Pressure Regulators

The Emerson Fisher 912N Series Pressure Regulators are engineered for high-precision pressure regulation in a variety of industrial applications. Designed with accuracy and sensitivity in mind, these regulators maintain constant pressure control even under varying flow conditions, ensuring that processes operate smoothly and efficiently. The 912N Series is ideal for applications where consistent and reliable pressure control is crucial, including in industries such as chemical processing, oil and gas, and general manufacturing.

These regulators are available in a wide range of pressure settings, making them suitable for both low and medium-pressure systems. The durable construction and flexible design of the 912N Series ensure long-lasting performance and minimal maintenance requirements. These regulators feature a direct-operated diaphragm design, which allows for rapid response times and stable pressure regulation. The Fisher 912N Series regulators provide the control needed to protect sensitive equipment, enhance process efficiency, and improve overall system safety.

Specifications

• Model: Fisher 912N Series

• Regulator Type: Direct-operated pressure regulator

• Application: Suitable for gas and liquid pressure control in industrial applications

• Body Material: Aluminum or optional stainless steel for corrosion resistance

• Diaphragm Material: Fabric-reinforced elastomer for long-lasting durability

• Inlet Pressure Range:

  • Minimum: 25 psi (1.7 bar)

  • Maximum: 250 psi (17.2 bar)

• Outlet Pressure Range: Adjustable from 1 psi to 20 psi (0.07 to 1.38 bar)

• Flow Capacity:

  • Maximum Flow Rate: Up to 1,000,000 BTU/hr (depending on application)

• Connection Size:

  • Inlet: 1" NPT

  • Outlet: 3/4" NPT

• Operating Temperature Range: -40°F to +160°F (-40°C to +71°C)

• Relief Valve: Integral relief valve to prevent overpressure conditions

• Certifications: UL listed, CSA certified

• Mounting Position: Can be installed in any orientation for ease of use

Key Features

• Precise Pressure Control: Provides accurate and stable regulation across a wide range of pressure settings, ideal for applications requiring sensitive control.

• Durable Construction: The 912N Series is designed with robust materials for longevity and resistance to environmental factors.

• Quick Response Time: The direct-operated diaphragm design ensures fast reaction to pressure changes, enhancing process stability.

• Minimal Maintenance: Built to require minimal upkeep, reducing downtime and maintenance costs.

• Integral Relief Valve: Protects against overpressure by automatically venting excess pressure, ensuring safe operation.

• Versatile Application: Suitable for a broad range of pressure control applications, from low to medium-pressure systems.


The Fisher 912N Series Pressure Regulators offer highly accurate and sensitive control, providing superior pressure regulation in both gas and liquid systems. Their reliable performance and durable design make them an ideal choice for a wide variety of industrial applications.
