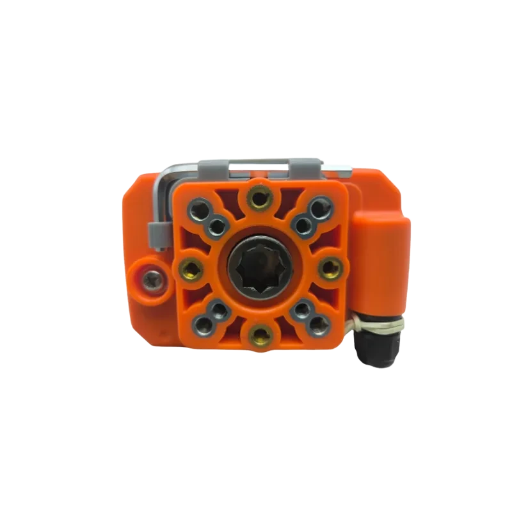

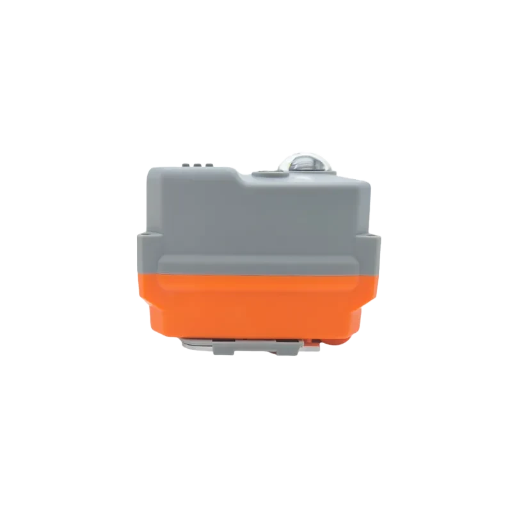

YNTO Fast-Acting Electric Valve Actuator
Rp123000.00
YNTO Fast-Acting Electric Valve Actuator
PT Karya Manaru Energi — Authorized Distributor Ynto in Indonesia
Overview
The YNTO Fast-Acting Electric Valve Actuator is engineered for reliable, high-speed on/off and modulating control of ball and butterfly valves. Compact and corrosion-resistant, the actuator is suitable for coal chemical, petrochemical, rubber, paper, pharmaceutical and general industrial pipelines. Its upper-mounted structure reduces stress on valve body bolts for large-diameter/high-pressure installations, improving valve reliability and overcoming system-weight effects.

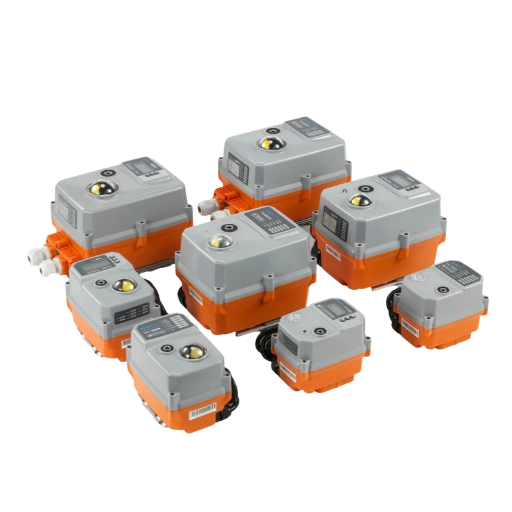

Models & Voltage Options
Product models: Standard Switch, Smart Switch, Smart Quick-Acting, Smart Bus Controller, Smart Adjustable Controller, Smart Wireless (LoRa).
Voltage: 110V, 220V, 230V, 240V, DC12V, DC24V, and wide AC 95–265V.
Key Benefits
Fast, accurate on/off and modulating control
Compact ABS housing (-20°C to 80°C), corrosion resistant
Long lifespan: 30,000–50,000 cycles (typical)
Upper-mount design reduces valve body stress on large valves

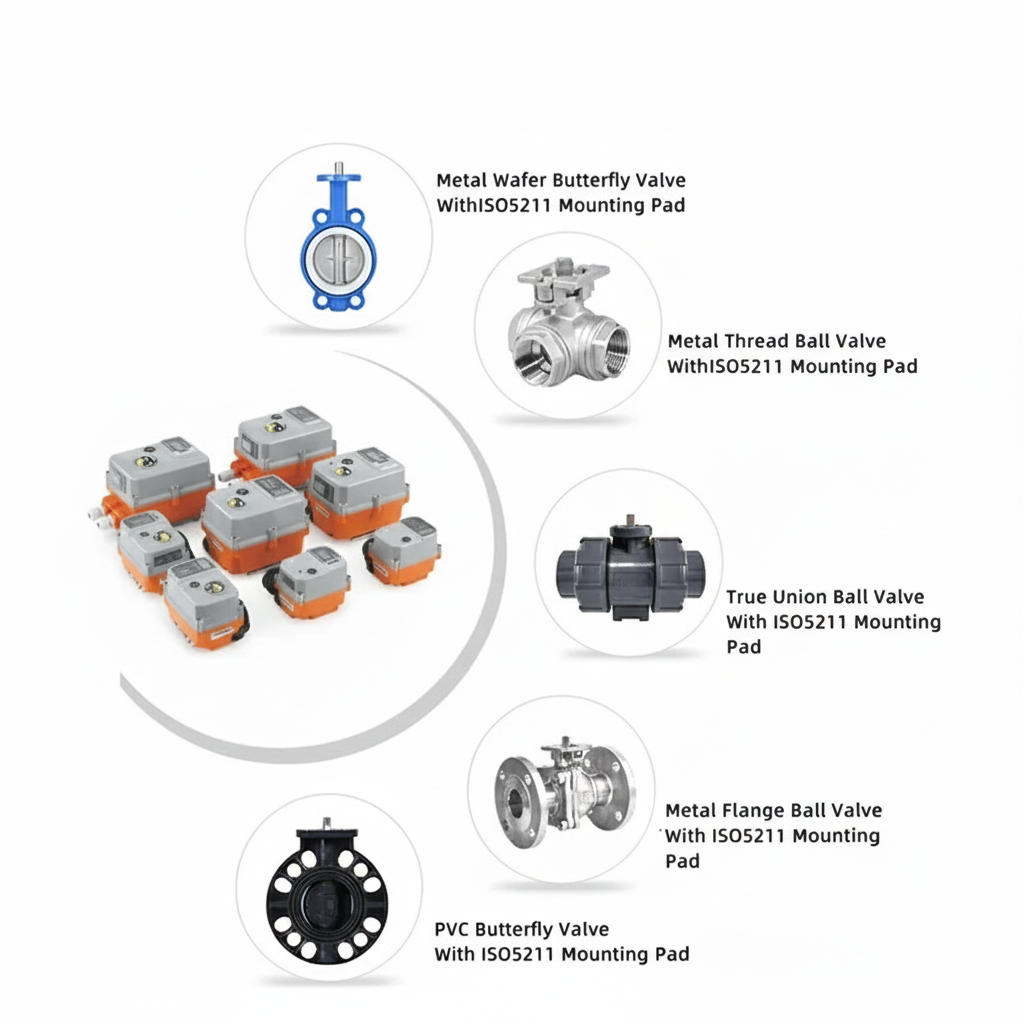

Suitable for ball & butterfly valves in harsh industrial environments
Available Types & Highlights
Normal Switch Type
Voltages: AC230/110/24V, DC24/12V
AC synchronous motor; service life ≈ 20,000 cycles
Multiple control mode options; not parallelable with same control contact
Smart Switch Type
Voltages: AC230V (95–265V), AC/DC24V
Brushless motor with overload protection; service life ≈ 20,000 cycles
Parallel operation supported (not with Normal Switch when same contact)
Smart Quick-Acting Type
Voltages: AC230V (95–265V), DC24V
Switching time ≈ 6s (AC) / ≈ 1s (DC)
Fault alarm relay; brushless motor with protection
Smart Bus Type (RS485 / Modbus)
Voltages: AC230V (95–265V), AC/DC24V
RS485 Modbus communication; supports 90° two-position and 180° three-way modes
Up to 32 units parallelable
Smart Regulation (Modulating) Type
Voltages: AC230V (95–265V), AC/DC24V
Control signals: 4–20mA, 0–10V, etc.; feedback 4–20mA
Position accuracy ±1% (software adjustable); relay alarm output
Smart Wireless LoRa Type
Voltages: AC230V (95–265V), AC/DC24V
RF433/868/915MHz LoRa communication; position accuracy ±1% (adjustable)
Typical Applications
Coal chemical, petrochemical, rubber, paper, pharmaceutical, water treatment, HVAC, power utilities, data centers, and any pipeline systems requiring fast valve switching or modulation.
Technical Snapshot
Case: ABS (Acrylonitrile Butadiene Styrene)
Temp range: -20°C to 80°C
Lifespan: 30k–50k cycles (model dependent)
Motor: AC synchronous or brushless DC (depending on type)
Communication: RS485 (Modbus) or LoRa (where applicable)
