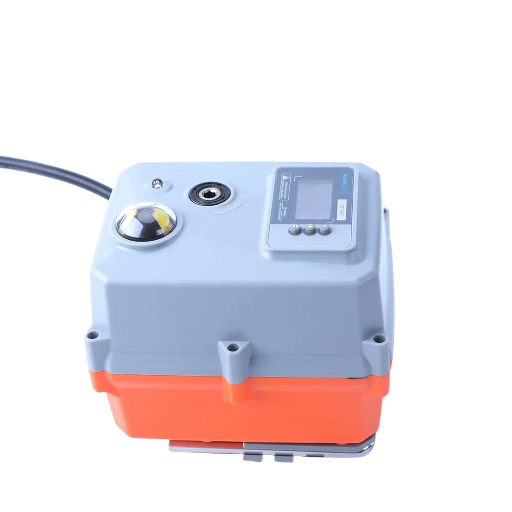

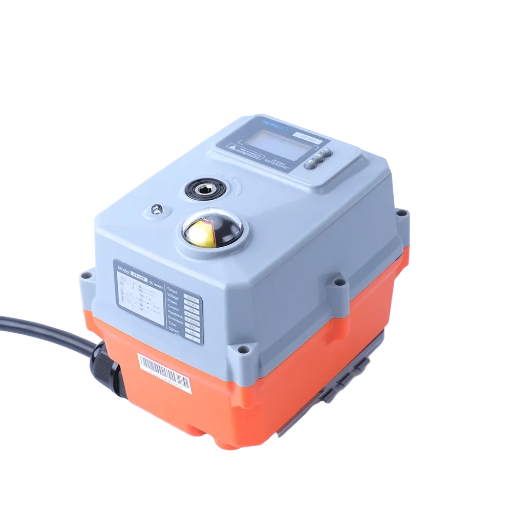

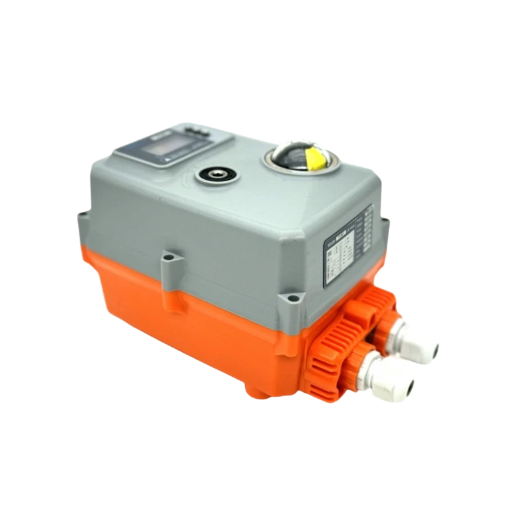

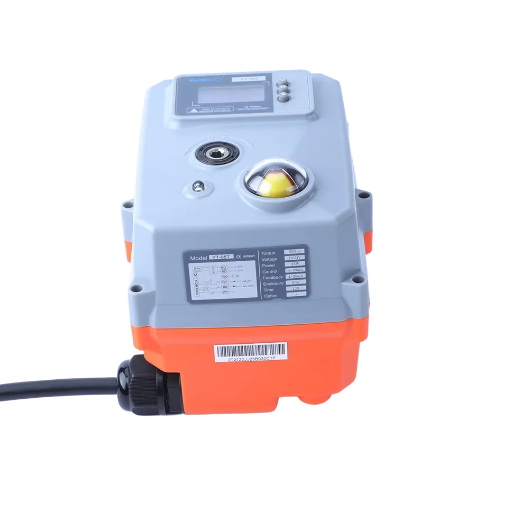

Ynto Electric Valve Actuator – YT-08/11 Series

Ynto Electric Valve Actuator – YT-08/11 Series

PT Karya Manaru Energi – Authorized Distributor Ynto in Indonesia

Product Description

The YNTO YT-08/11 Series Electric Valve Actuator is a compact, high-precision electric actuator designed for reliable and efficient automation of small valve applications. With torque outputs of 80 N·m (YT-08) and 110 N·m (YT-11), this series is suitable for various light to medium-duty industrial operations.

Developed with advanced engineering, the YT-08/11 Series offers multiple control options including Switch (On/Off), Modulating, Bus control, Timing, and Wireless operation. It is equipped with premium features such as an OLED LCD display, manual override button, brushless high-performance motor, power-off auto reset, high-speed switching, and wireless remote control, ensuring smart and reliable functionality.

The compact size and robust performance make it ideal for industries such as metallurgy, chemical plants, water supply systems, HVAC and refrigeration, military facilities, data centers, medical equipment, and more.

Key Features

• Torque Options: 80 N·m (YT-08) / 110 N·m (YT-11)

• Compact and lightweight design

• OLED LCD Display for clear operation and status monitoring

• Manual operation button for easy manual override

• High-performance brushless motor ensuring long service life

• Power-off automatic reset (fail-safe)

• High-speed switching performance

• Wireless remote control capability (optional)

• Multiple control modes: On/Off, Regulating, Bus, Timing, Wireless

Typical Applications

• Metallurgical Industry

• Chemical Industry & Petrochemical Plants

• Water Supply & Wastewater Treatment

• HVAC, Cooling & Refrigeration

• Power Generation

• Military and Defense Facilities

• Data Centers

• Medical Equipment

• General Industrial Automation Systems

Technical Specifications
