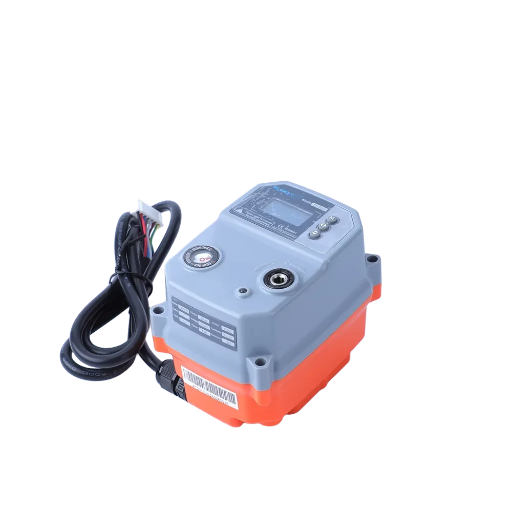

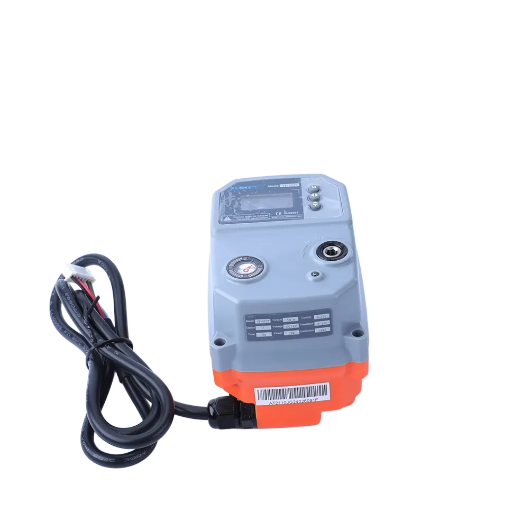

Ynto Electric Valve Actuator – YT-01 Series

Ynto Electric Valve Actuator – YT-01 Series

PT Karya Manaru Energi – Authorized Distributor Ynto in Indonesia

Product Overview

The YNTO YT-01 Series Electric Valve Actuator is the smallest and most compact model in YNTO’s electric actuator range. With a torque output of 10 N·m, this series is designed for very small valves and precision control applications where reliability, efficiency, and compactness are critical.

Despite its size, the YT-01 Series delivers powerful capabilities supported by YNTO’s advanced actuator technologies. It supports various control modes including On/Off switching, Modulating control, Bus communication, Timing control, and Wireless operation.

Equipped with an OLED LCD display, manual operation button, high-performance brushless motor, automatic power-off reset, high-speed switching, and optional wireless remote control, this model provides smart and seamless operation across various industries.

It is widely used in metallurgical systems, chemical processing, water supply, HVAC and cooling systems, military facilities, data centers, medical devices, and other industrial automation environments.

Key Features

• Torque Output: 10 N·m

• Ultra-compact and lightweight design

• OLED LCD display for clear status and configuration

• Manual override button for manual control when needed

• Brushless high-performance motor ensuring long service life

• Power-off automatic reset (fail-safe)

• Fast switching performance

• Optional wireless control

• Control modes: Switch (On/Off), Regulating, Bus, Timing, Wireless

Typical Applications

• Small and miniature valve automation

• Chemical dosing and small pipelines

• Laboratory automation

• Water treatment skids and small flow systems

• HVAC, cooling, and refrigeration equipment

• Medical and diagnostic devices

• Compact processing equipment

• General small-scale industrial automation

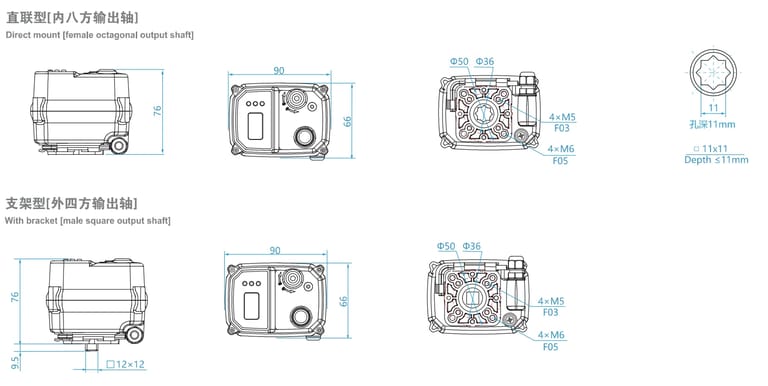

Technical Specifications
