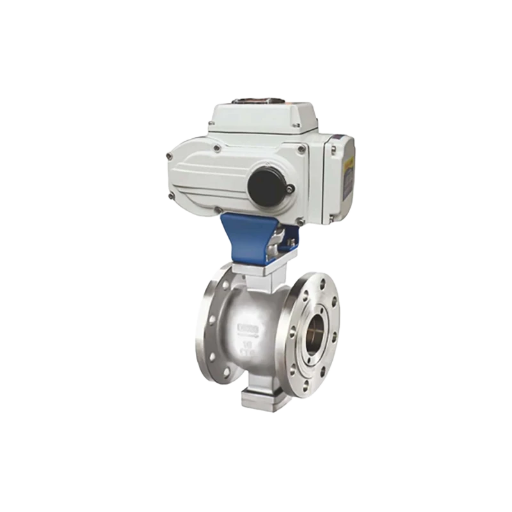

YNTO Electric Flanged V-Type Ball Valve
Rp123000.00
PT. Karya Manaru Energi, Authorized Distributor of Ynto in Indonesia, presents the YNTO Electric Flanged V-Type Ball Valve, engineered for precise regulation of slurries, media containing fibers, and fine solid suspensions. The valve features a V-shaped core that adjusts the flow cross-sectional area, while the relative rotation with the valve seat generates a shearing force to cut fibers and prevent jamming.
Designed for industrial automation systems, this valve delivers strong flow capacity, high regulation accuracy, excellent sealing performance, and a lightweight structure. It is widely used in industries such as paper making, food processing, petroleum, chemical, metallurgy, power, pharmaceuticals, and wastewater treatment. As a trusted Distributor of Electric Actuator Ball Valve and Agen Sole Ynto, PT. Karya Manaru Energi ensures high-quality, fully certified valves with reliable performance for demanding industrial applications.
Technical Specifications
General Parameters
Nominal Diameter: DN25–DN500
Nominal Pressure: PN10 (1.0 Mpa) – PN64 (6.4 Mpa)
Applicable Temperature: PTFE 150℃, PPL 200℃, Metal Hard Seal 425℃
Applicable Medium: Water, Oil, Steam, Acids, Alkalis
Connection Type: Flanged
Materials
Body Material: Cast Steel, Stainless Steel (304, 316, 316L), Duplex Steel
Core Material: Stainless Steel (304, 316, 316L), Duplex Steel
Stem Material: Stainless Steel or Duplex Steel
Seat Material: PTFE, High-Temperature PPL, Metal Hard Seal
Performance Features
V-shaped ball core for precise flow regulation
Shearing action prevents fiber clogging
High flow capacity with accurate control
Excellent sealing performance
Lightweight design for easy installation and maintenance
Applications
Industrial automation control systems
Paper making, food, petroleum, chemical, metallurgy, power, pharmaceuticals, wastewater treatment
