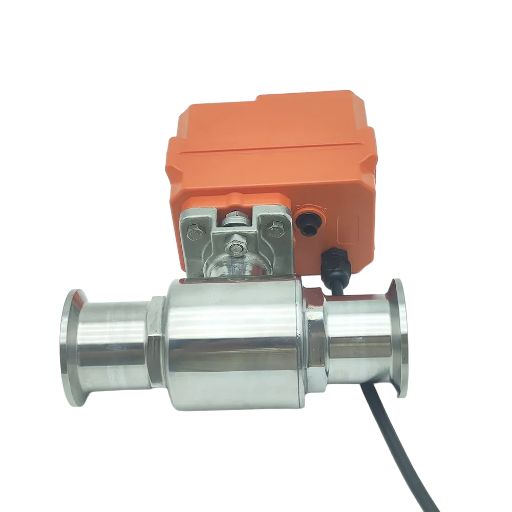

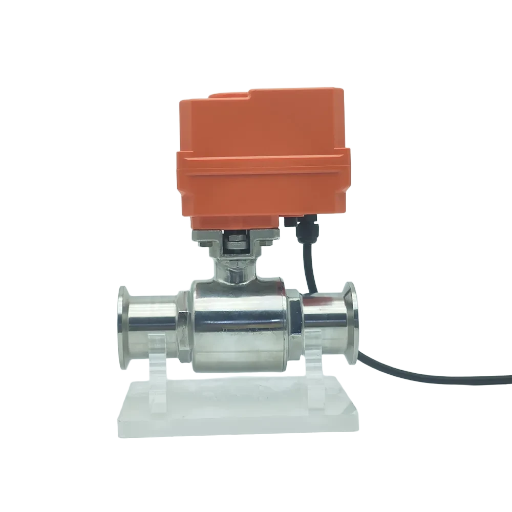

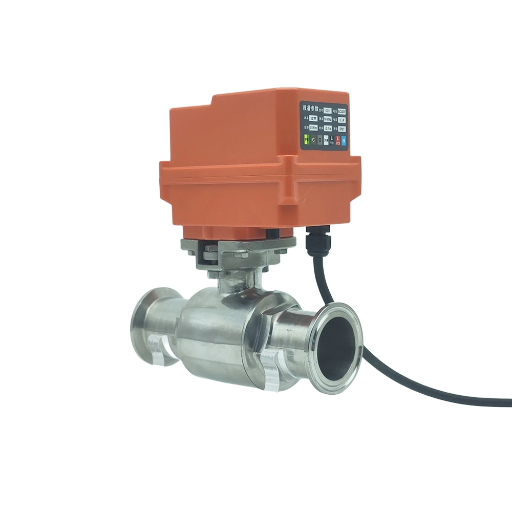

Ynto Electric Actuator with Stainless Steel 316L Ball Valve End Connection Clamp Type
Rp123000.00
Ynto Electric Actuator with Stainless Steel 316L Ball Valve Clamp Type
PT Karya Manaru Energi is the Authorized Distributor of Ynto in Indonesia.
Product Description
This electric stainless steel 316L clamp-type ball valve is designed for automated control of high-purity, corrosive, and sanitary process media. Manufactured from precision-cast AISI 316L stainless steel with tri-clamp sanitary connections, it ensures exceptional cleanliness, corrosion resistance, and compliance with strict CIP/SIP requirements.
The valve is paired with a smart Ynto electric actuator, delivering accurate positioning, stable operation, and long service life. Its compact structure, smooth flow path, and hygienic design make it an excellent choice for industries requiring sterile and contamination-free fluid handling.
Key Features
Premium 316L Stainless Steel Body
Austenitic AISI 316L construction with excellent chemical resistance
Suitable for high-purity acids, alkaline media, solvents, and saline solutions
Temperature range: –20°C to +180°C
Surface finishing Ra ≤ 0.8 μm (sanitary grade)
Tri-Clamp Sanitary Connection
Hygienic, dead-leg-free internal flow path
Fully compliant with DIN 32676 / SMS 1145 / 3-A / ASME BPE
Tool-free assembly and disassembly for fast maintenance
Ideal for processes requiring CIP/SIP cleaning
Smart Electric Actuation (Ynto Technology)
4–20 mA feedback with ±0.5% precision
IP67 or ATEX explosion-proof options
Brushless motor with built-in overload protection
Available in:
On/Off switch type
Modulating/regulating type
Bus communication type (Modbus/RS485)
Fast-acting type
Wireless LoRa type
Long Service Life & Easy Maintenance
Rated for up to 100,000 cycles
PTFE/EPDM/PPL sealing options
Modular actuator-valve design for quick servicing
ISO 5211 mounting compatibility
Technical Specifications
Parameter | Specification |
Size Range | DN15–DN50 (½"–2") |
Connection | Tri-Clamp (DIN 32676 / SMS) |
Body Material | AISI 316L Stainless Steel |
Inner Surface Finish | Ra ≤ 0.8 μm |
Seal Material | PTFE, EPDM, PPL |
Pressure Rating | PN16 (10 bar) |
Temperature | –20°C to +180°C |
Power Supply | AC220V, DC24V (AC380V optional) |
Actuator Options | Switch, Smart, Bus, Fast-Acting, Wireless LoRa |
Typical Applications
Biopharmaceutical: Sterile API transfer, vaccine lines
Food & Beverage: Dairy, juice, brewery CIP lines
Semiconductor: Ultra-pure water (UPW) systems
Chemical Industry: Corrosive reagent dosing
General Sanitary Processing: High-purity media control
Key Advantages
Hygienic design with polished sanitary finish
Industry-ready communication for SCADA/PLC systems
Superior corrosion resistance and long lifecycle
Full traceability with EN 10204 3.1/3.2 certificates
Designed for industries requiring ASME BPE-level quality
