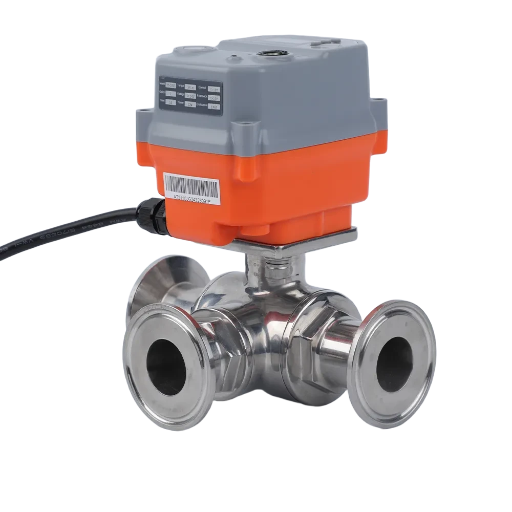

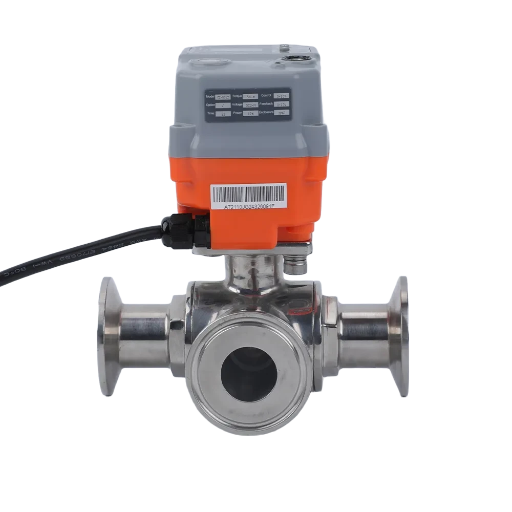

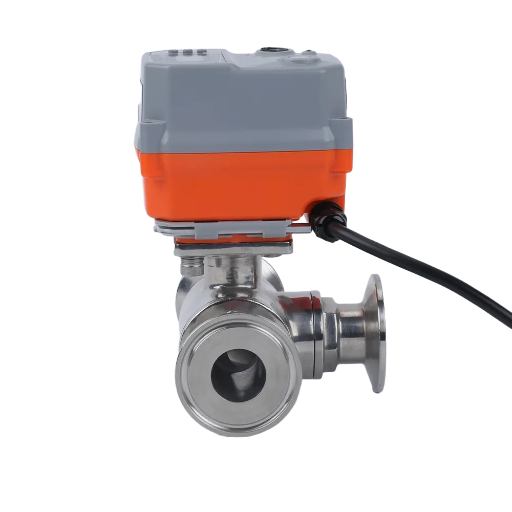

Ynto Electric 3-Way Clamp Ball Valve (316 Stainless Steel)

PT. Karya Manaru Energi, Authorized Distributor of Ynto in Indonesia, offers the Electric 316 Stainless Steel 3-Way Clamp Ball Valve, ideal for hygienic and precise fluid control in biopharma, food & beverage, and semiconductor industries. Crafted from AISI 316L stainless steel with tri-clamp sanitary connections, this valve ensures full CIP/SIP compliance (EHEDG-certified) and zero dead-leg design for optimal hygiene.

Equipped with high-precision electric actuation, it provides automated control with 4–20 mA feedback and Modbus RTU integration for PLC/DCS systems. As a leading Distributor of Electric Actuator Ball Valve and Agen Sole Ynto, PT. Karya Manaru Energi delivers reliable, durable, and fully certified valves to meet the most demanding industrial standards.

Technical Specifications

Material & Construction

• Body: AISI 316L Stainless Steel (1.4404)

• Casting Standard: ASTM A351 CF8M

• Surface Finish: Ra ≤0.4 μm (ASME BPE SF-4 compliant)

• Sanitary Connection: Tri-Clamp DIN 32676 / SMS / 3A certified

• Chemical Compatibility: HCl (37%), NaOH (30%), IPA (99.9%)

• Temperature Range: -29°C to 232°C (-20°F to 450°F)

• Pressure Rating: 10 bar @ 150°C (ASME B16.34 Class 150)

Electric Actuation

• Feedback: 4–20 mA + Modbus RTU

• Positioning Accuracy: <0.5% repeatability (IEC 60534-6 Class 1)

• Enclosure: IP66 / Type 4X (NEMA 4X / ATEX Ex d II CT6 optional)

• ISO 5211 actuator mounting for easy replacement

Flow Configuration

Sanitary & Maintenance Features

• Zero dead-leg flow path (3-A 72-03 validated)

• 360° clamp rotation for flexible installation

• Tool-free disassembly in 90 seconds (FDA 21 CFR 177.2600 compliant)

• 100,000-cycle tested (ISO 5208 Class VI)

• PTFE / metal-seated options (FDA/USP Class VI compliant)

Documentation & Certification

• Material Certificates (EN 10204 3.1)

• 3D Particle Analysis Reports (ISO 21501-4)

• FAT Protocols (ISA-88 / S88 standards)
