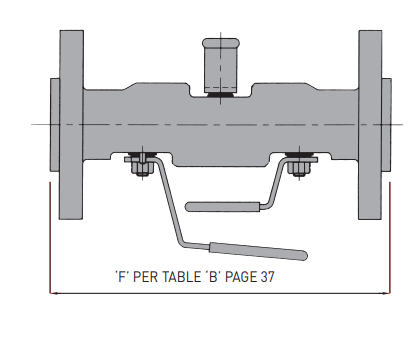

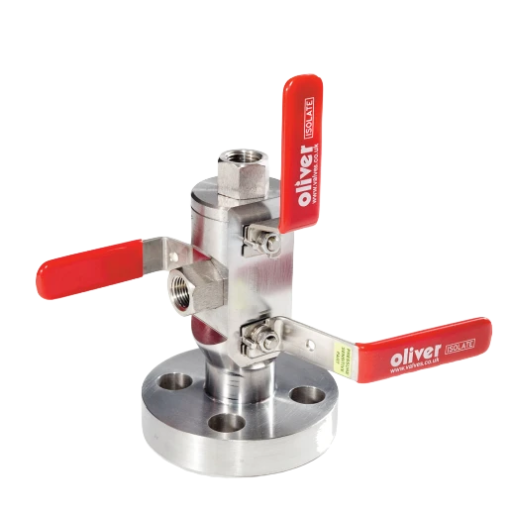

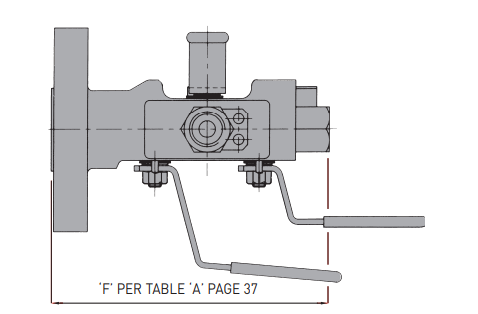

Oliver F Type Double Block & Bleed Valve – Flanged, Forged Duplex Body
Rp123000.00
The F Type Double Block & Bleed (DBB) Valve is a compact forged-body manifold integrating three in-line ball valves—two for isolation and one for venting. Designed for high-integrity isolation, the F Type configuration is ideal for applications where space and weight are limited but full-bore flow and robust operation are required.
Manufactured from a single-piece forged body with controlled grain flow, this valve type provides enhanced mechanical strength and leak-tight performance. It is particularly suited for offshore and process-critical environments and is available with a variety of body and trim materials, including Duplex stainless steel, with optional fire-safe and NACE compliance.
Technical Specifications
Parameter | Specification |
Manufacturer | Oliver Valves |
Model | F Type Double Block & Bleed (DBB) |
Valve Configuration | 3 In-line Ball Valves (2 Isolation + 1 Vent) |
Body Design | One-piece drop forged body, grain flow controlled |
Body Material | ASTM A182 F51 (Duplex Stainless Steel) |
Flange Material | ASTM A182 F51 |
Size Range | DN15 to DN80 (1/2” to 3”) |
Pressure Class Range | Class 150 to 2500 |
Seat Material | PTFE |
Seal & Gland Packing | PTFE / Graphite |
Ball Valve Bore Options | 10mm (CV 6.3), 14mm (CV 11.7) |
Operation | Quarter-turn lever |
Vent Connection | 1/2” NPT Female |
Outlet Connection | Flanged or threaded (configurable) |
Certifications | Firesafe (API 607, API 6FA, BS 6755 Part 2), NACE MR-01-75 |
Safety Features | Blok-Lok anti-disassembly system, optional handle locking |
Applications | Pressure instrumentation, sampling, chemical injection, drain, compact hook-ups |
