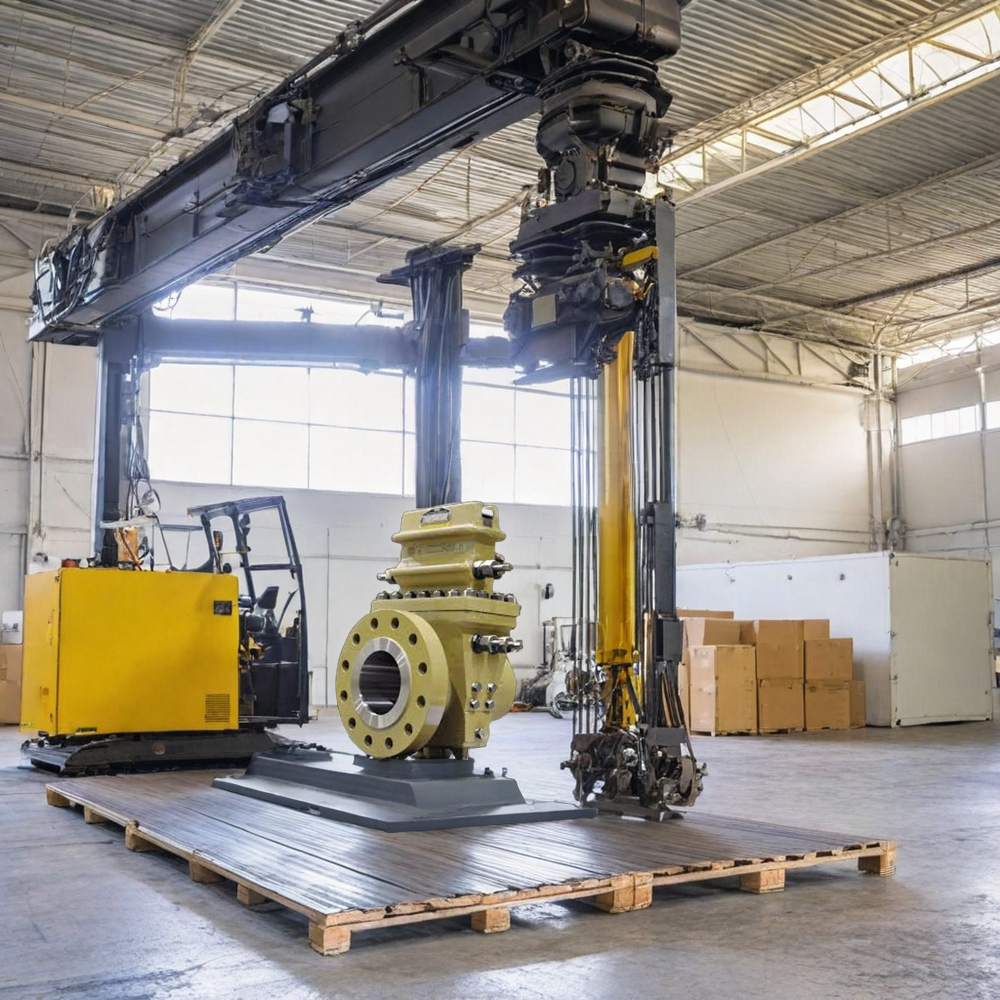

Daniel Senior Orifice Fitting

Product Description

The Daniel® Senior™ Orifice Fitting is a dual-chamber differential pressure flow meter widely recognized for its accuracy, reliability, and ease of maintenance. It is the most installed orifice fitting globally for natural gas measurement, with over one million units in service.

Designed to meet API 14.3 and ISO 5167 standards, the dual-chamber design allows for safe, efficient orifice plate changes under pressure—without interrupting flow. This eliminates the need for complex bypass piping or additional isolation valves.

The unit ensures precise orifice plate alignment and sealing, even under high differential pressure conditions. Its construction is optimized for harsh environments, including sour gas applications, thanks to a range of corrosion-resistant materials.

Key Features

• Dual-chamber design for plate changes without shutting down the flow.

• Metal-to-metal plate alignment ensures compliance with API/ISO standards.

• Field-repairable for reduced downtime and maintenance costs.

• Available in wide material selection: WCB, LCC, 316 SS, Duplex.

• NACE trim for sour gas and corrosive environments.

• Slide valve options: hard-seat (with grease) or soft-seat (clean gas only).

• Pressure taps: four pairs standard (2"–24", ANSI 600).

• Orientation: installable in horizontal or vertical downflow positions.

• Hydrostatically tested and meets/exceeds API 14.3 sealing requirements.

Typical Applications

• Natural gas pipelines

• Gas processing plants

• Onshore and offshore production

• Floating production storage (FPSO)

• CO₂ injection systems

• Gas distribution systems

  Technical Specifications

  Parameter	Specification
  Line Sizes	2" to 24" (Standard: 2"–12" ANSI 600; larger sizes and ratings available)
  Pressure Ratings	ANSI 150 to 2500 (consult factory for above ANSI 600)
  Temperature Range	Standard: -20°F to +200°F (-29°C to +93°C); Optional: -50°F to +200°F
  Process Connections	FN/RF, FN/RTJ standard; FF/RF, FF/RTJ optional
  Differential Taps	API 14.3 (AGA3) standard; ISO 5167 optional
  Seal Type	Dual-face seal rings; one ring per line size up to Sch 30
  Lubrication	Daniel grease sticks (tested up to 1400 psig)
  Materials	Body: WCB, LCC, 316 SS, Duplex; Trim: NACE (2"-8", 600#), A Trim (others)
  Plate Carrier Sizes	Fixed metal alignment for 2" to 8" sizes
  NPT Ports	0.50", 0.75", or 1.00" depending on size




  Dimensions and Weights

  • Weights: Vary by size and pressure class (e.g., 2" ANSI 600 ≈ 105 lb; 16" ANSI 900 ≈ 2,260 lb).

  • Orifice Plate Thickness: 0.12" to 0.38" depending on size

  • Clearances: Designed for easy maintenance and plate removal

  • Standard Line Bores: Sch 40, 80, 160 (consult factory for others)
