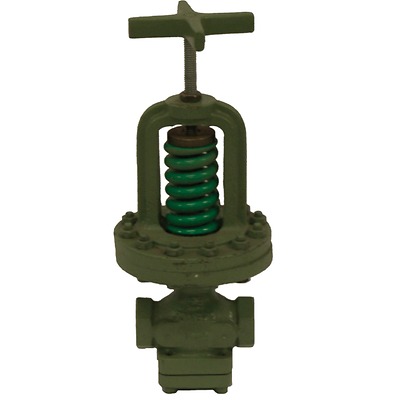

D Series Pressure Reducing Pilot
Rp123000.00
The Spence D Series Pressure Reducing Pilot, in combination with a Type E main valve, is designed to reduce steady or fluctuating initial pressure to a consistent and adjustable delivery pressure. This normally closed, packless pilot construction ensures dependable performance and can operate alongside other pilot configurations for versatile system applications. With spring pressure ranging from 30 inches vacuum to 300 PSI, the D Series delivers precise and reliable pressure control.
Key Features
Durable Thick-Walled Bodies: Provides enhanced structural integrity for long-lasting performance.
Low Resistance to Flow: Optimized for improved pump and hose service efficiency.
Specifications
Available Configurations:
D138: Single back check valve with 2 x 2-1/4 (MNPT x ACME) connections.
D139: Single back check valve with 3 x 3-1/4 (MNPT x ACME) connections.
D140: Double back check valve with 2 x 2-1/4 (MNPT x ACME) connections.
D141: Double back check valve with 3 x 3-1/4 (MNPT x ACME) connections.
Temperature Range: -20 to 160°F (-29 to 71°C).
Spring Pressure Range: 30 inches vacuum to 300 PSI.
