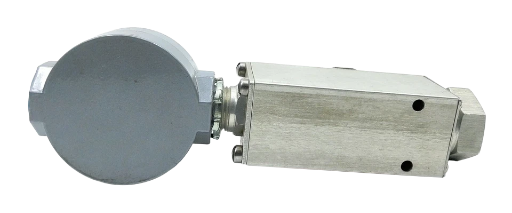

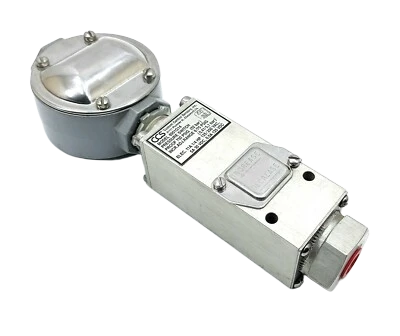

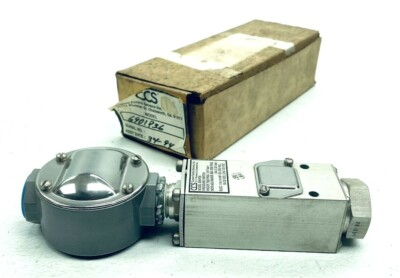

CCS Pressure Switch Model 6901GZM20
Rp123000.00
Description
The CCS Pressure Switch Model 6901GZM20 is a compact, adjustable dual-snap pressure switch designed for reliable performance in demanding industrial applications. It features stainless steel wetted parts, high proof pressure, and excellent repeatability, making it ideal for hydraulic, pneumatic, and general process control systems. This model uses CCS’s proven Dual-Snap® disc spring mechanism, ensuring precise actuation, long life, and resistance to shock, vibration, and temperature variations.
Technical Specifications
Parameter | Description |
Manufacturer / Brand | Custom Control Sensors, Inc. (CCS) |
Model | 6901GZM20 |
Type | Adjustable Pressure Switch |
Operating Principle | Dual-Snap® Disc Spring Mechanism |
Pressure Connection | 1/2" Stainless Steel Pressure Port |
Wetted Parts | 316 Stainless Steel with Viton Diaphragm |
Adjustable Pressure Range | 300 to 1000 psig (20.7 to 69 bar) |
Proof Pressure | 3000 psig (17 bar) |
Switch Type | SPDT (Standard) or DPDT “M” Option |
Electrical Rating | 11A, 1/4 HP at 125/250 VAC; 5A at 30 VDC; 0.5A at 125 VDC |
Enclosure Rating | NEMA 4 and 13 (Weatherproof); CSA Certified for non-hazardous locations |
Ambient Temperature Range | –30°F to +160°F (–34°C to +71°C) |
Repeatability | High repeatability due to Dual-Snap® design |
Weight | Approx. 15 oz (425 g) |
Mounting | External adjustment screw |
Approvals | CSA Certified, conforms to UL standards |
Key Features
Compact, rugged construction for industrial use
High proof pressure up to 3000 psig
Dual-Snap® mechanism provides precise on/off action without chatter
Resistant to vibration and temperature changes

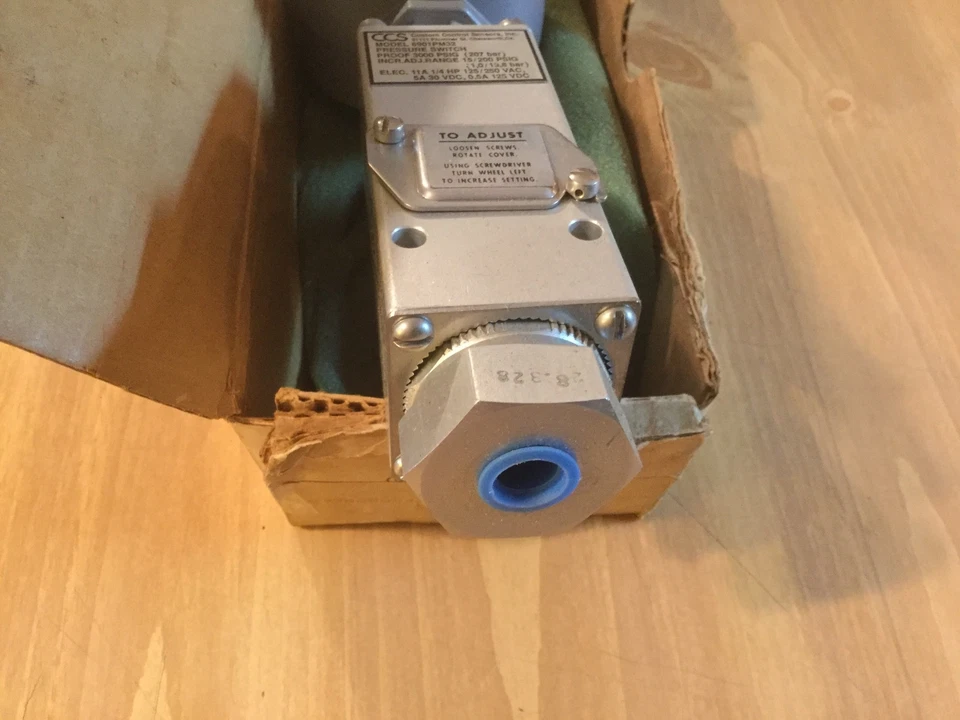

Field-adjustable setpoint
Long mechanical and electrical life
