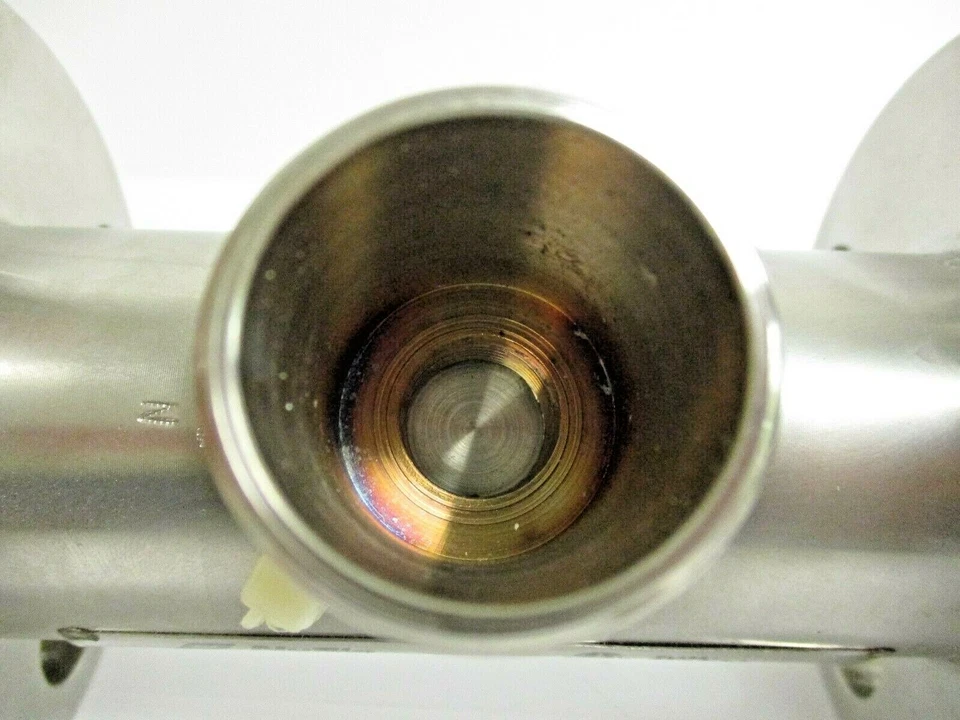

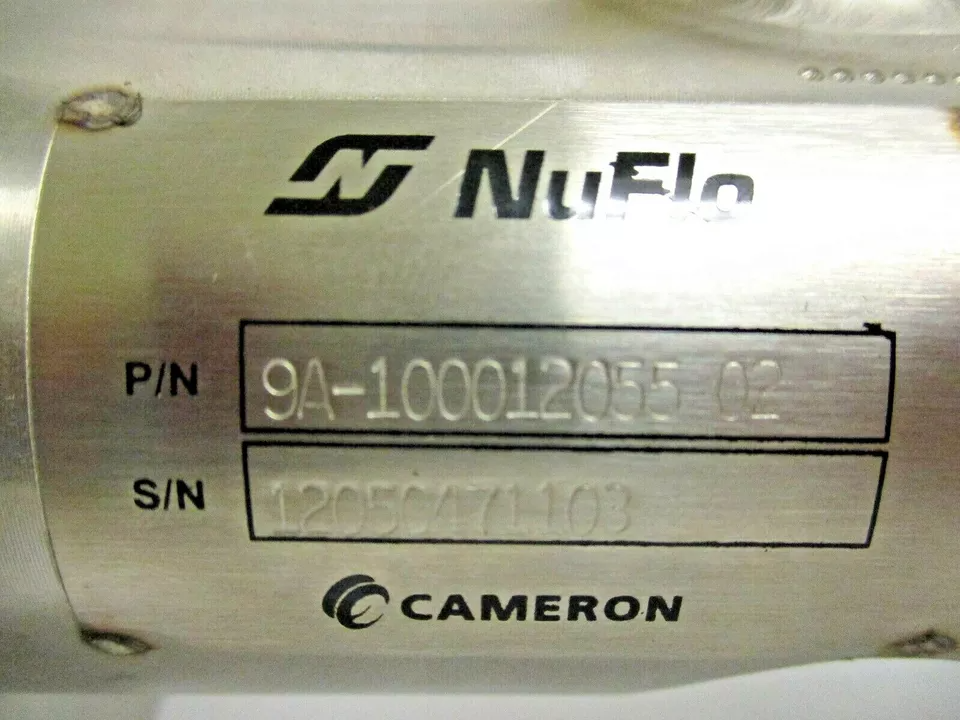

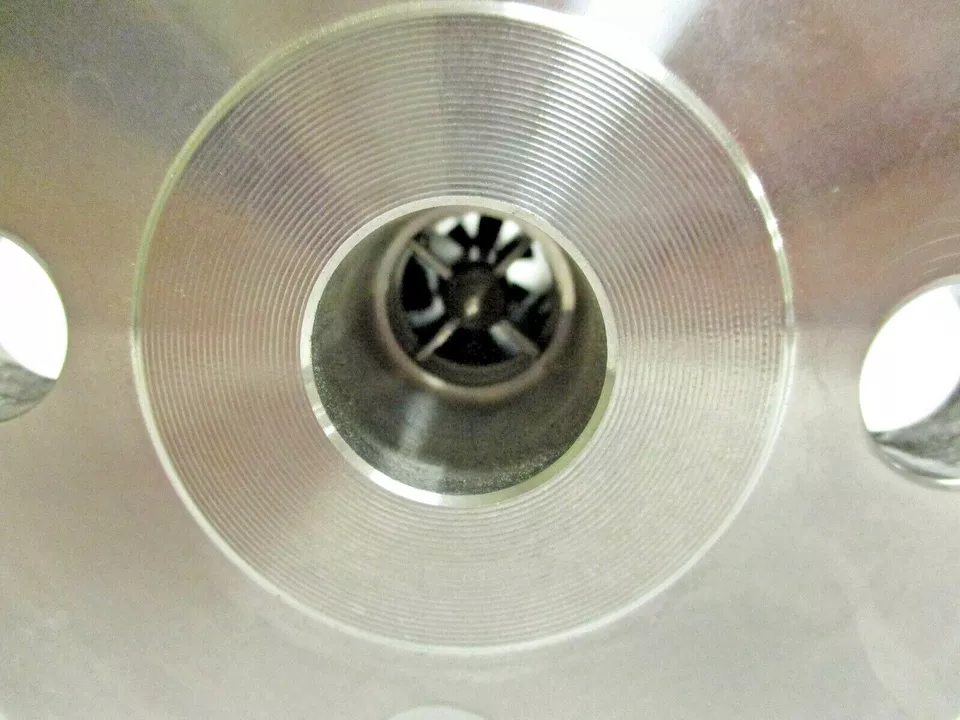

Cameron NuFlo Turbine Flow Meter 9A-100012055-02
Rp123000.00
The Cameron NuFlo Turbine Flow Meter, Part Number 9A-100012055-02, is a 1-inch, 150# ANSI-rated, between-flange liquid turbine flowmeter from the EZ-IN Series. Designed for precision liquid flow measurement, this meter features a stainless steel construction and a high-speed rotor that produces a frequency signal proportional to flow rate. It is ideal for clean liquid applications in oil & gas, petrochemical, water injection, and other industrial process systems. With its compact design and simple installation between raised face flanges, it ensures minimal pressure loss and long service life under proper operating conditions.
Technical Specifications
Item | Details |
Manufacturer / Brand | Cameron (NuFlo Measurement Systems) |
Part Number | 9A-100012055-02 |
Series | EZ-IN® Series |
Type | Liquid Turbine Flow Meter |
Meter Bore Size | 1 inch |
End Connection / Flange Rating | ANSI Class 150, Between-Flange (Raised Face) |
Body Material | Stainless Steel (typical) |
Measurement Principle | Axial turbine with magnetic pickup |
Signal Output | Frequency (pulses per unit volume) |
Nominal Flow Range | 5 to 50 GPM (1.14 to 11.36 m³/h) |
Calibration Factor | 900 pulses per gallon (typical) |
Max Output Frequency | 750 pulses/sec |
Pressure Drop at Max Flow | 20 psi (138 kPa) |
Working Pressure | Up to 285 psi at -20 to 100°F (ANSI 150 rating) |
Temperature Range | -20°F to 400°F (-29°C to 204°C) depending on pickup coil |
Accuracy | ±1.0% of reading (Standard Grade) |
Repeatability | ±0.1% |
Magnetic Pickup Compatibility | 2295367-01 (to 250°F) or 2296313-01 (to 450°F) |
Installation Orientation | Horizontal or vertical (flow upward) |
Application | Oil & gas, chemical injection, water, general liquid flow |
Compliance | ANSI B16.5, ASME B31.3, NACE MR0175 (optional) |
