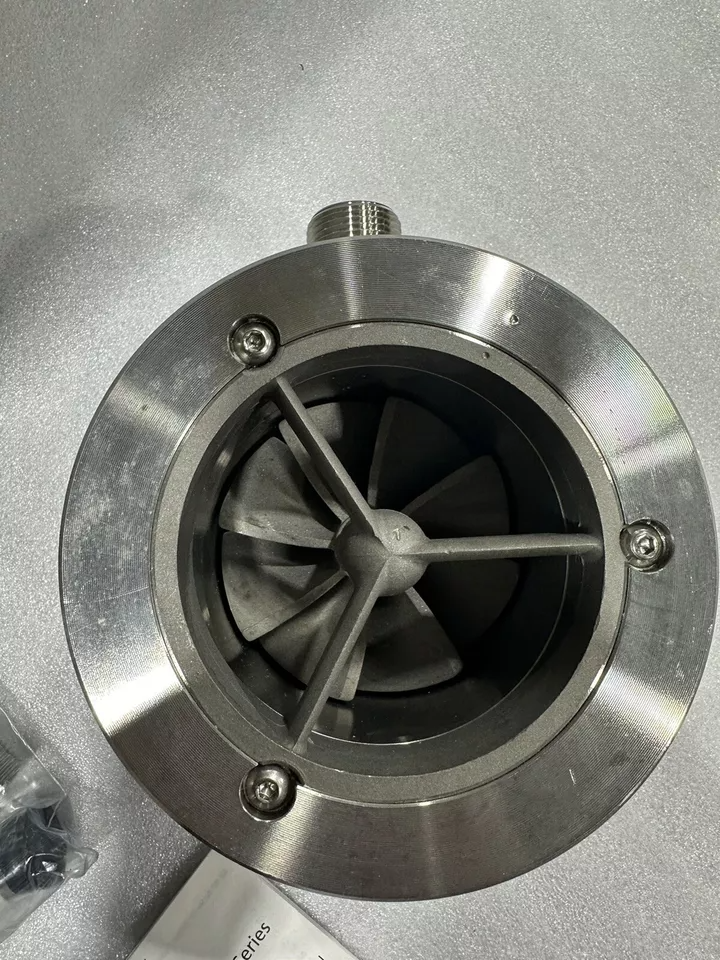

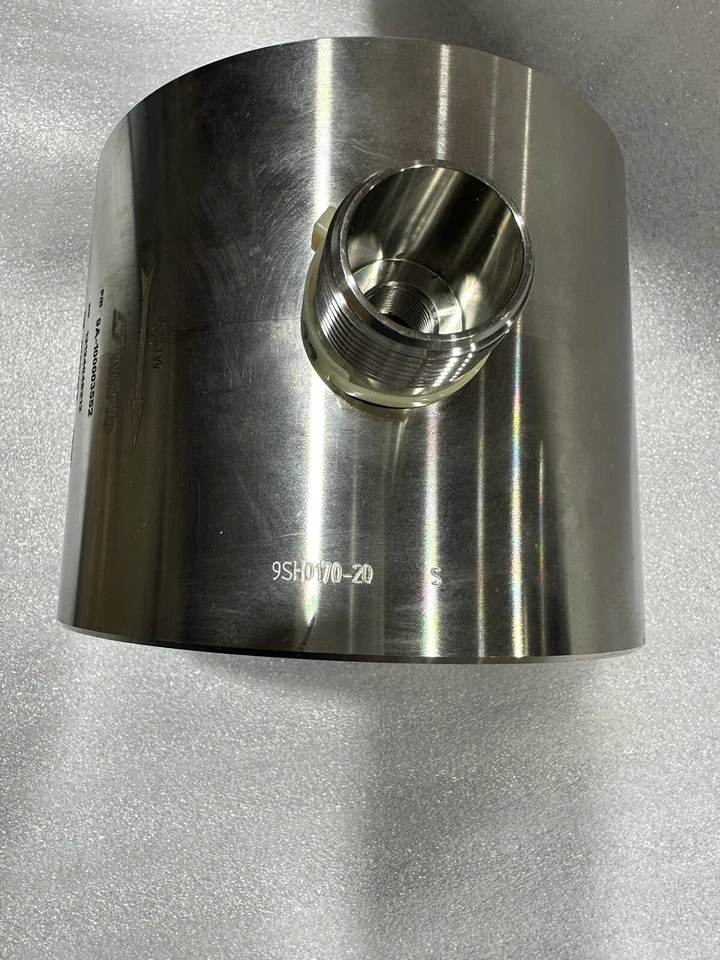

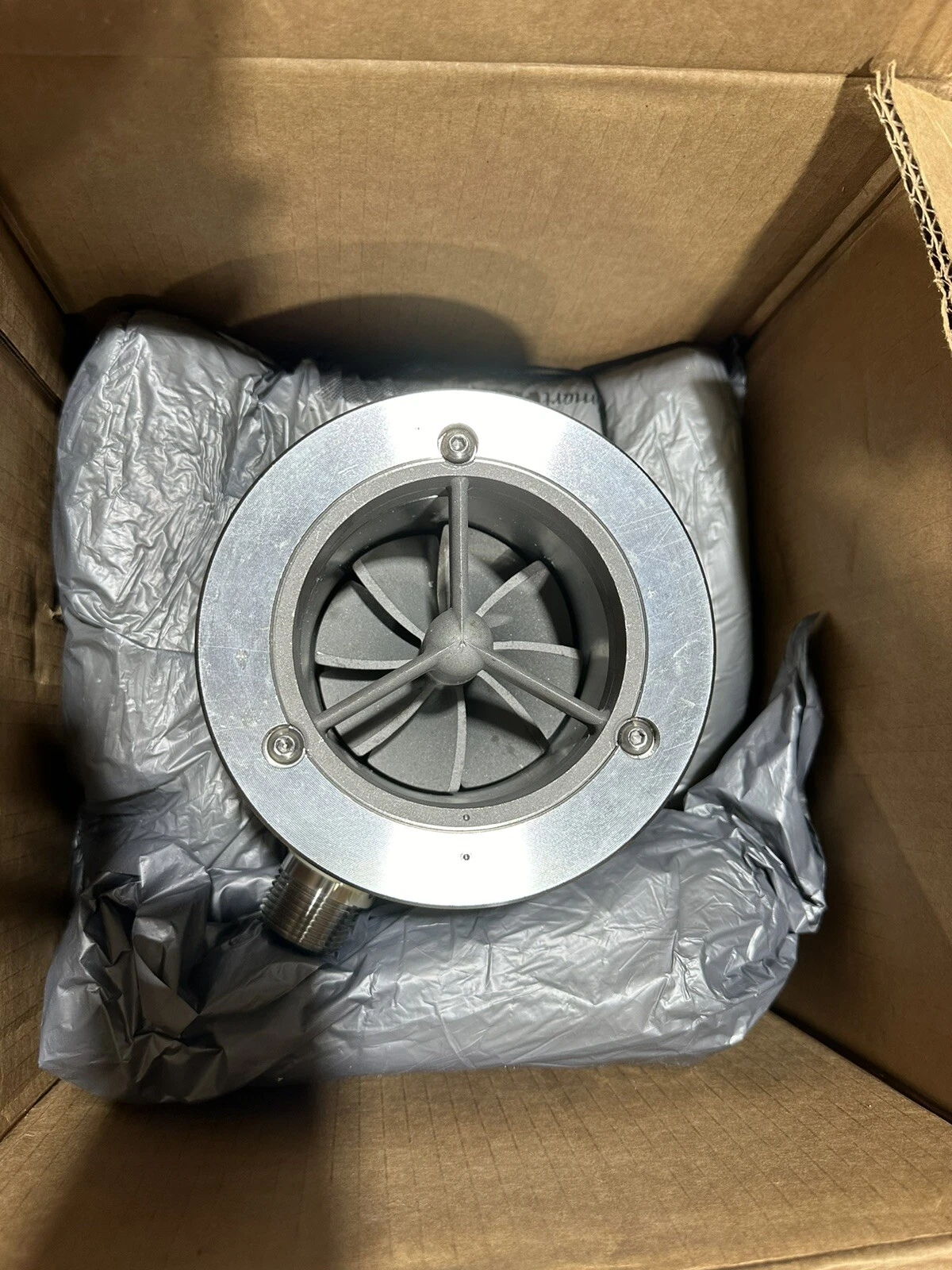

Cameron NuFlo Turbine Flow Meter 9A-100003552
Rp123000.00
The Cameron NuFlo Turbine Flow Meter, part number 9A-100003552, is a precision-engineered flow measurement device designed for accurate volumetric flow measurement of clean liquids in industrial and oil & gas applications. This meter belongs to the EZ-IN Series and is designed for between-flange installation in ANSI-rated pipelines. Utilizing a high-speed turbine rotor and magnetic pickup sensor, it generates a pulse signal directly proportional to the flow rate, ideal for integration with electronic flow totalizers and monitoring systems.
Technical Specifications
Item | Details |
Manufacturer / Brand | Cameron (NuFlo Measurement Systems) |
Part Number | 9A-100003552 |
Series | EZ-IN® Series |
Type | Liquid Turbine Flow Meter |
Installation Type | Between Flange (ANSI Raised Face or Ring Joint) |
Meter Bore Size | 2 inch |
Body Material | Typically Stainless Steel |
Measurement Principle | Axial turbine with magnetic pickup |
Signal Output | Frequency pulse output |
Nominal Flow Range | 40 to 400 GPM (9.09 to 90.85 m³/h) |
Calibration Factor | ~55 pulses per gallon |
Maximum Output Frequency | 365 pulses/sec |
Pressure Drop at Max Flow | 22 psi (152 kPa) |
Working Pressure | Depends on flange class — up to 6,170 psi (CL2500) |
Operating Temperature | -20°F to 450°F (-28.8°C to 232°C) with suitable pickup |
Accuracy | ±1.0% (Standard), ±0.5% (Industrial grade optional) |
Repeatability | ±0.1% |
Compatible Pickup Coil | 9A-100002077 (–67 to 250°F), 9A-100002076 (–67 to 450°F) |
Applicable Standards | ASME B31.3, ANSI B16.5, NACE MR0175 / ISO 15156 |
Mounting Orientation | Horizontal or vertical (flow upward) |
Applications | Oil & gas, chemical processing, water injection, batching |
