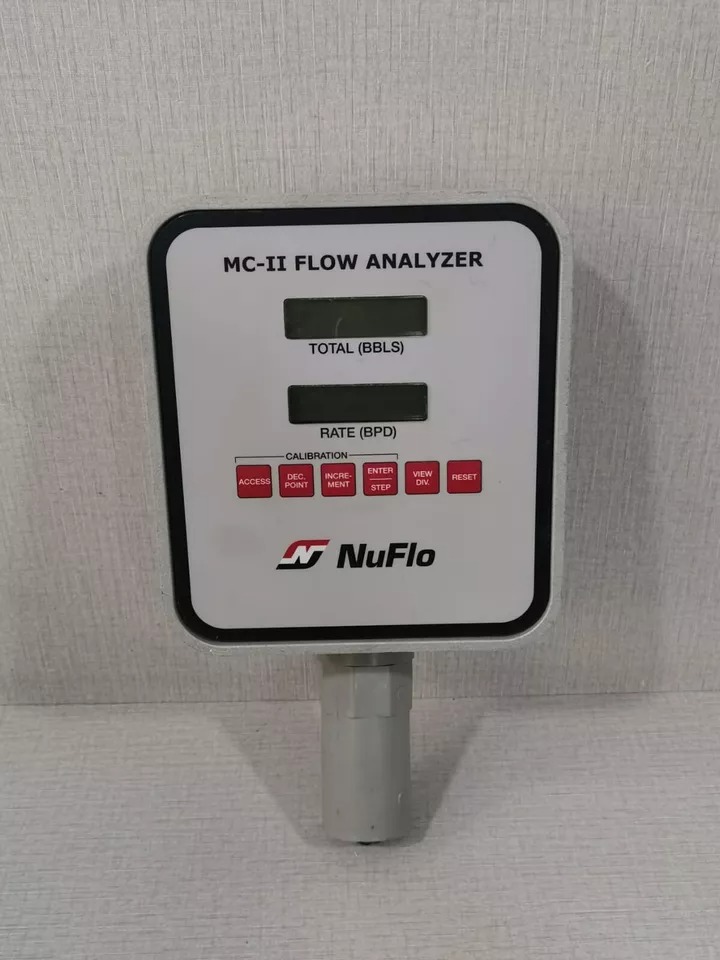

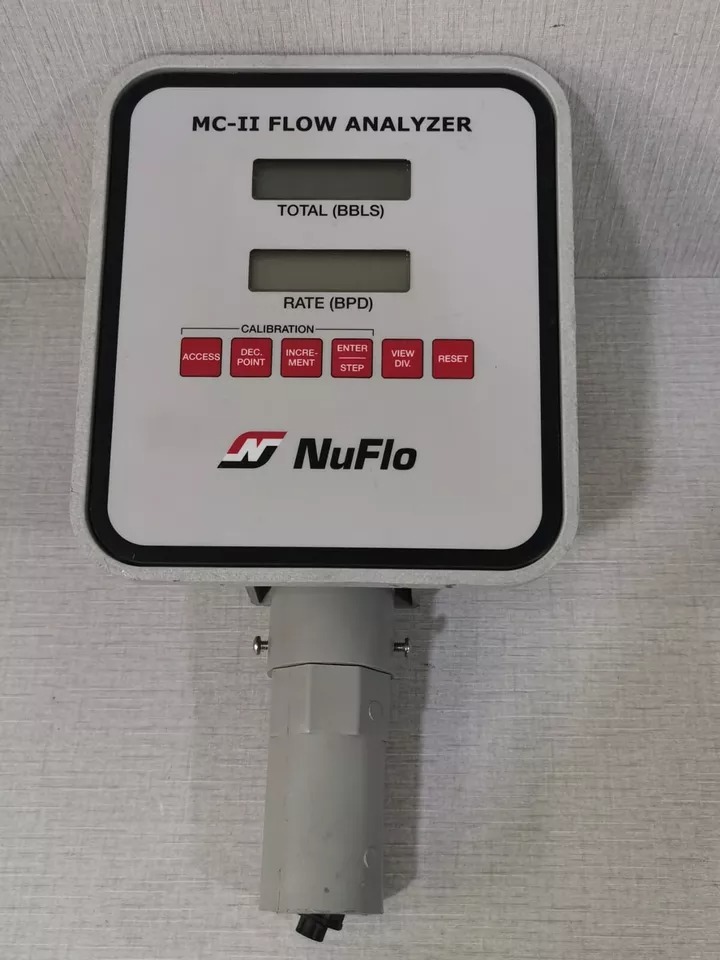

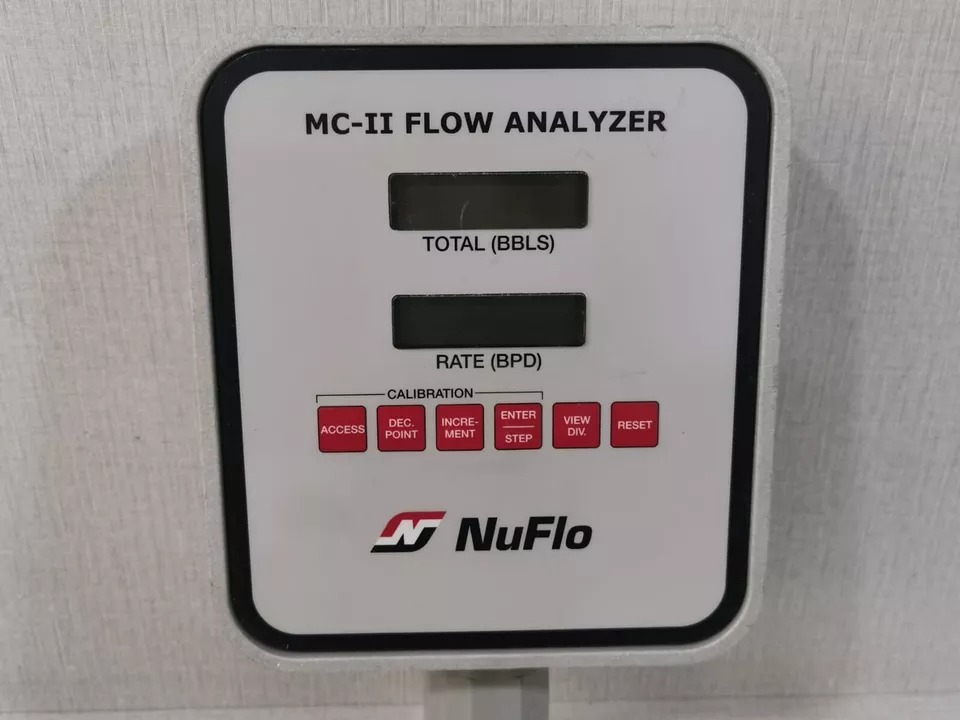

Cameron NuFlo MC-II Flow Analyzer

The NuFlo MC-II Flow Analyzer is a versatile, high-performance device designed for accurate and reliable flow measurement across various industrial applications. With a robust design and advanced functionality, this analyzer ensures seamless integration with flow meters to provide real-time monitoring and data acquisition for liquids and gases.

Its compact and durable construction makes it ideal for deployment in challenging environments, including oil and gas fields, chemical processing plants, and water management systems. The MC-II Flow Analyzer is equipped with advanced data logging capabilities, customizable outputs, and an intuitive interface, offering operators a dependable solution for process optimization and flow analysis.

Specifications

Measurement Capabilities:

1. Flow Rate: Instantaneous flow measurement with high accuracy.

2. Totalized Flow: Tracks cumulative flow over operational periods.




Display:

1. High-contrast LCD with alphanumeric and graphical data presentation.

2. Displays flow rate, totalized flow, and diagnostic alerts.


Accuracy:

1. ±0.5% of reading for standard flow conditions.


Signal Input/Output:

1. Inputs:

   • Pulse signals from turbine or other compatible flow meters.

2. Outputs:

   • Scaled pulse output.

   • 4-20 mA analog signal.

   • Serial communication via Modbus protocol.


Power Supply Options:

1. Battery-operated: Long-lasting battery for remote locations.

2. External Power: 12-24 VDC input for continuous operation.


Environmental Specifications:

1. Operating Temperature: -40°C to +85°C (-40°F to +185°F).

2. Enclosure Rating: NEMA 4X / IP66 for weatherproof and dust-tight operation.

3. Hazardous Area Certifications:

   • ATEX, IECEx, and CSA for use in explosive environments.


Material and Design:

1. Enclosure: Rugged aluminum or optional stainless steel for corrosive environments.

2. Compact and lightweight for easy installation and transport.


Mounting Options:

1. Panel-mounted or wall-mounted configurations.


Key Features:

1. Large, easy-to-read display for field operators.

2. Built-in data logging for flow history and trend analysis.

3. Alarm settings for high or low flow conditions.

4. Compatibility with various NuFlo and third-party flow meters.


Applications:

1. Oil and Gas: Monitoring production, injection, and transfer operations.

2. Chemical Processing: Accurate flow measurement for critical processes.

3. Water Management: Flow analysis for treatment plants and distribution systems.

4. Industrial Manufacturing: Monitoring and controlling liquid and gas flows.
