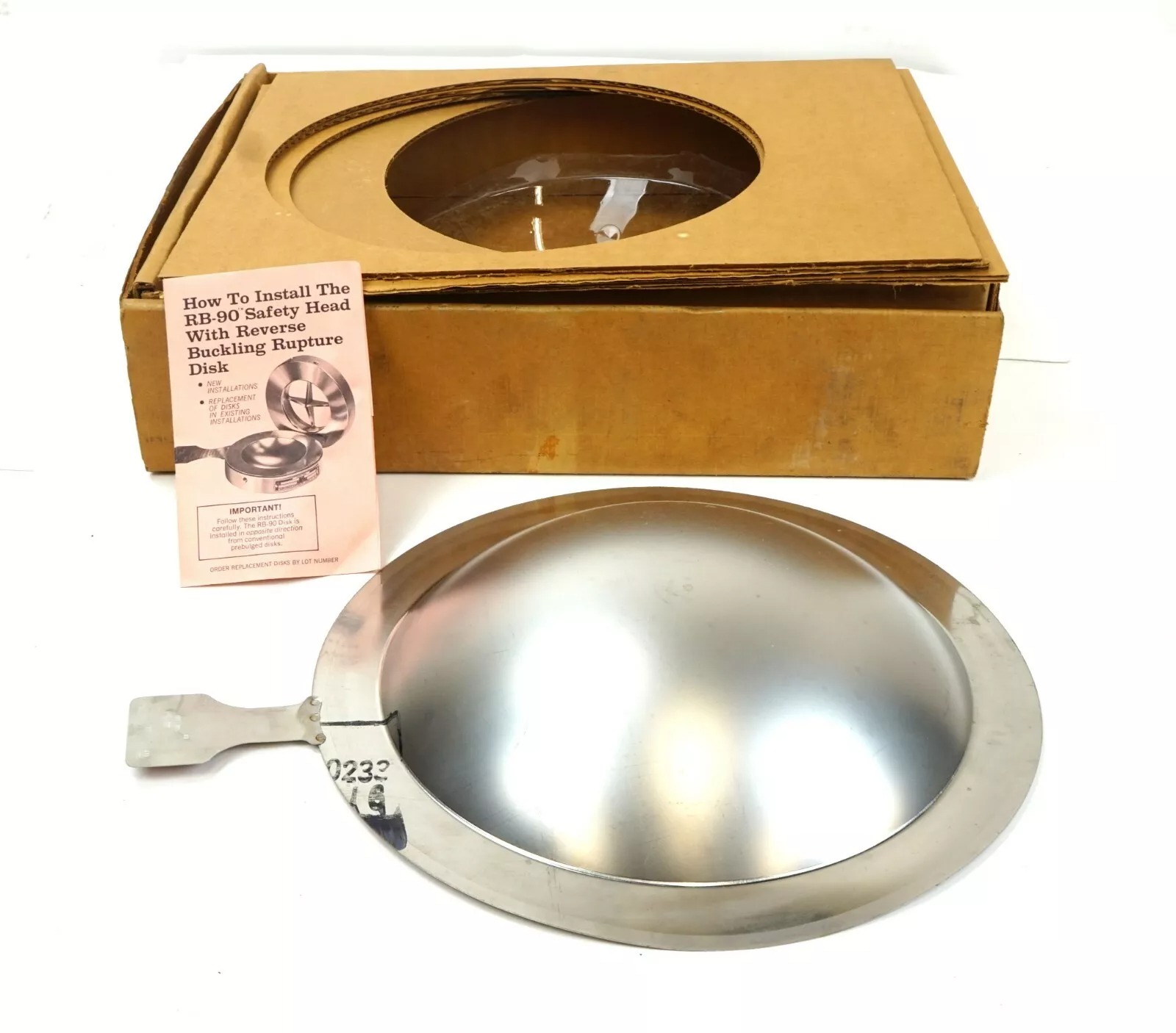

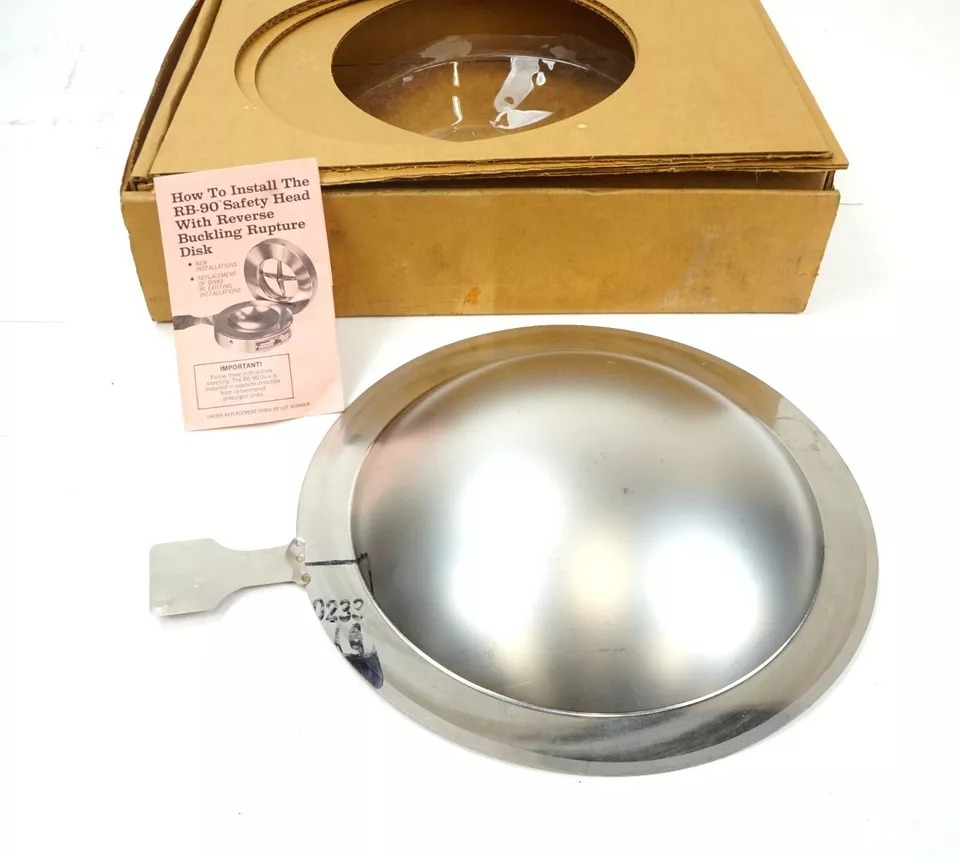

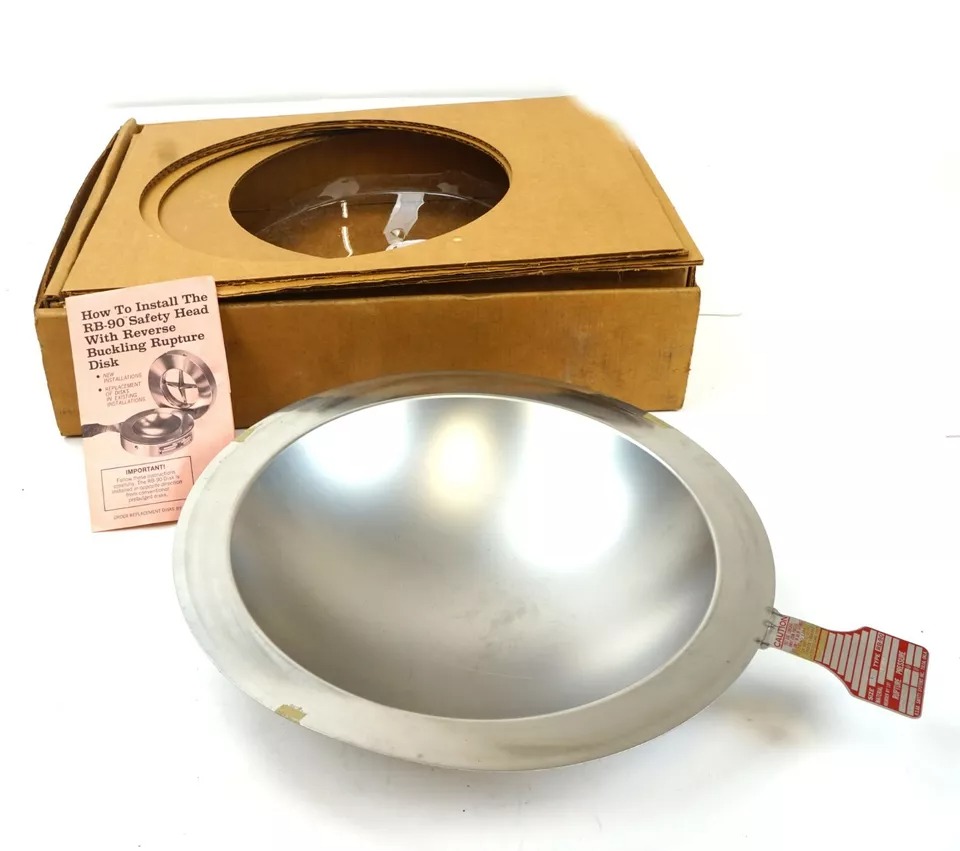

BS&B RB-90 Safety Pressure Relief Rupture Disk

The BS&B RB-90 Safety Pressure Relief Rupture Disk is a high-performance rupture disk designed to protect vessels, pipelines, and systems from overpressure conditions. The RB-90 rupture disk features a robust design that provides a quick, reliable, and controlled burst response to relieve pressure in the event of an overpressure situation. It is engineered with precision for safety-critical applications in industries such as chemical processing, pharmaceuticals, food production, and oil & gas.

This rupture disk is constructed with a combination of 316 stainless steel and FEP (Fluorinated Ethylene Propylene), providing excellent resistance to corrosive environments and high-performance capabilities under extreme temperatures. The RB-90 model is engineered to handle a broad range of pressure applications, with a pressure setting of 108/111 PSI at standard conditions. The material selection ensures durability and long-term reliability in challenging environments.

The RB-90 rupture disk is designed to activate and relieve excess pressure quickly and efficiently, preventing potential damage to the equipment and ensuring the safety of personnel. After activation, it is a one-time-use device and must be replaced.

Specifications

• Manufacturer: BS&B Safety Systems

• Model: RB-90

• Material:

  • 316 Stainless Steel: For corrosion resistance and strength in high-pressure environments

  • FEP (Fluorinated Ethylene Propylene): For superior chemical resistance and reliability in harsh environments

• Pressure Rating:

  • Available in a range of 108/111 PSI

  • Custom pressure settings available depending on application requirements

  • Tolerance: ±5% of set pressure

• Temperature Rating:

  • Operational temperature range: -40°F to 350°F (-40°C to 177°C)

  • Temperature stability within the rated range to ensure reliable performance

• Burst Type: Non-reclosing, once activated, the rupture disk vents excess pressure permanently

• Burst Pressure Range:

  • Available in sizes and pressure ratings ranging from 10 PSI to 300 PSI depending on requirements

  • Custom burst pressures can be manufactured as per customer specifications

• Size Range:

  • Available in standard sizes ranging from 1" to 24" depending on system requirements and application

  • Sizes are customizable to fit specific equipment needs

• Design Standards:

  • Manufactured in accordance with ASME, API, and other relevant standards for pressure relief devices

• Sealing: Metal-to-metal seal for reliable, leak-tight operation

• Activation Pressure Tolerance: ±5% of set burst pressure for precise relief

• Service Life: Single-use, designed to be replaced after activation

• Installation: Can be installed in a variety of orientations (horizontal or vertical) as required by the application

• Certifications: ATEX, UL, and other industry-specific certifications for use in hazardous environments

• Flow Area: Available with different flow area configurations to meet system design requirements

Key Features

• High Performance: The RB-90 rupture disk provides quick, reliable pressure relief, preventing overpressure events and minimizing the risk of equipment damage or failure.

• Durable Construction: Made from corrosion-resistant 316 stainless steel and FEP, the disk offers enhanced durability and performance in aggressive chemical environments.

• Wide Pressure and Size Range: Available in a wide range of pressure settings (from 10 to 300 PSI) and sizes (from 1" to 24"), ensuring compatibility with various industrial applications.

• Precise Burst Pressure: Accurate and consistent burst pressures with a tolerance of ±5% of set pressure for reliable performance in critical applications.

• Safe and Easy Installation: Simple and quick to install, with multiple installation orientations (horizontal and vertical) for versatile application in pressure systems.

Applications

The BS&B RB-90 Safety Pressure Relief Rupture Disk is ideal for use in:

• Chemical Processing Plants: Protecting reactors, pipelines, and vessels from overpressure conditions.

• Oil & Gas Industries: Safety relief in storage tanks, separators, and gas pipelines.

• Pharmaceutical and Food Production: Safeguarding pressure vessels and storage tanks containing sensitive substances.

• Power Generation: Protecting boilers, reactors, and other critical equipment in power plants.

• Water and Wastewater Treatment: Pressure relief for treatment vessels and pumps.
