BETTIS Type CBB 725-SR80
Rp123000.00
BETTIS Type CBB 725-SR80

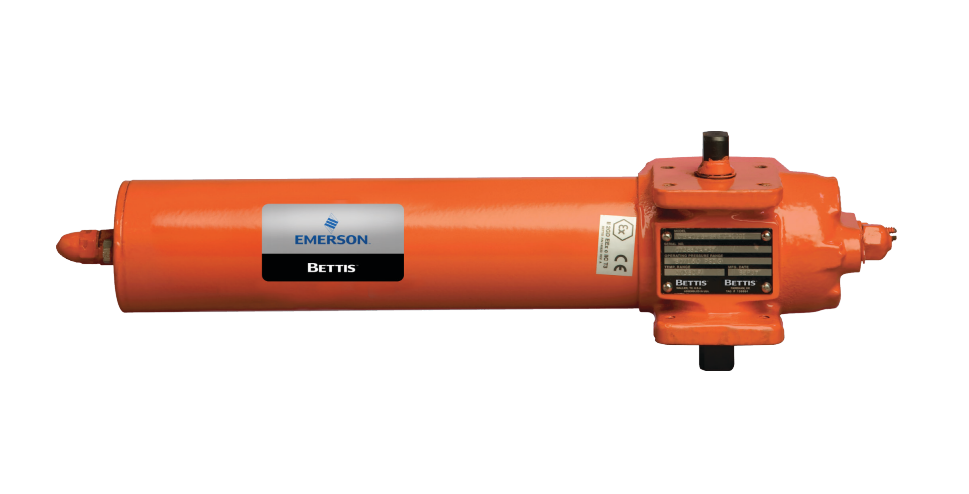

The Bettis Type CBB 725-SR80 is a heavy-duty spring-return pneumatic actuator engineered for reliable and precise quarter-turn valve automation. Designed to deliver consistent torque output and dependable fail-safe operation, this actuator is ideal for critical service applications in oil & gas, petrochemical, power generation, and industrial process systems.
With a robust ductile iron or carbon steel housing, the CBB 725-SR80 offers long-term durability in demanding environments. Its spring-return configuration ensures automatic fail-close or fail-open positioning upon loss of air supply. The actuator features a high-capacity power cylinder, precision-machined drive components, and adjustable travel stops for accurate end-of-stroke alignment. The design supports compatible mounting interfaces for a wide range of rotary valves.
Technical Specifications – BETTIS CBB 725-SR80
Actuation Type
Spring-Return Pneumatic Actuator
Model: CBB 725-SR80
Quarter-turn operation
Volume
Total usable air volume (inboard/outboard): 327 cu. in.
Metric equivalent: 5,358.6 cu. cm
Pressure Ratings
Maximum Operating Pressure (MOP): 124 psig
Equivalent: 8.6 bar
Maximum Allowable Working Pressure (MAWP): 135 psig
Equivalent: 9.3 bar
Approximate Weight
Ductile Iron Housing: 103.8 lb (≈ 47.1 kg)
Carbon Steel Housing: 107.4 lb (≈ 48.7 kg)
Construction
Housing Material Options:
Ductile Iron
Carbon Steel
Heavy-duty power cylinder and spring cartridge assembly
Corrosion-resistant drive components
Ports & Mounting
Air Supply Port: 3/8" NPT
Accessory Mounting Pad: Compatible with industry-standard interfaces
Valve Mounting Pattern: Square bolt pattern with opposed shaft orientation

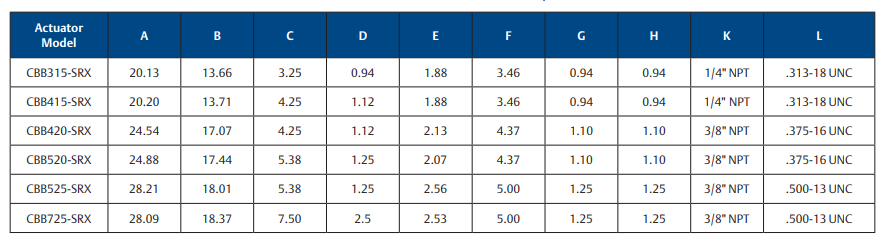

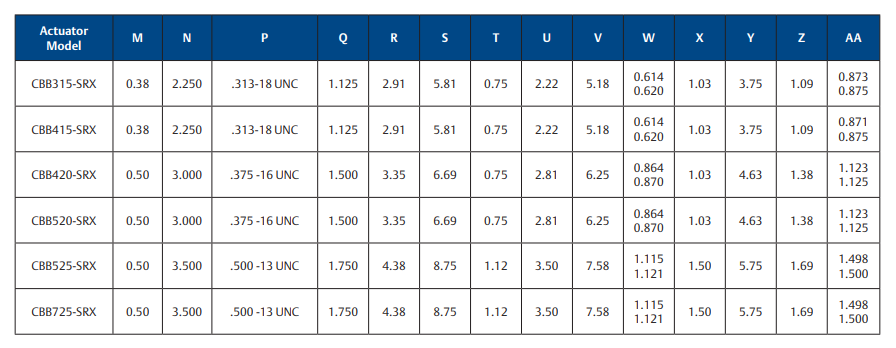

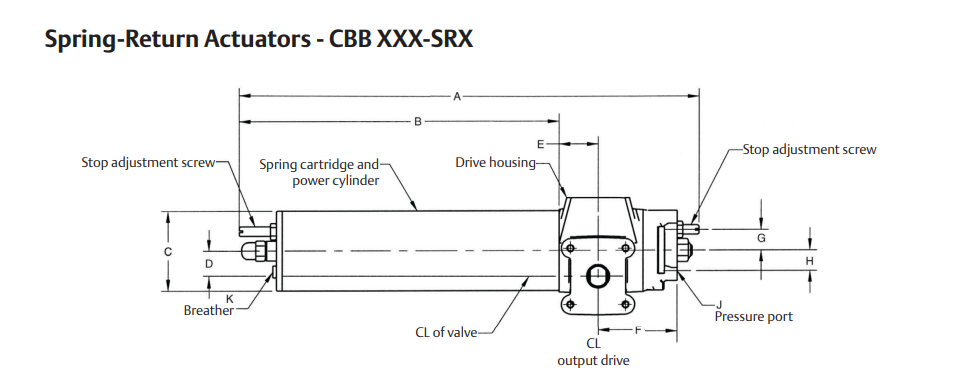

Dimensions (Key Points, Spring-Return Version)
Overall Length (A): 28.09 in
Height (B): 18.37 in
Cylinder Diameter (C): 7.50 in
Rod End Dimension (D): 2.50 in
Drive Hub Width (N): 0.50 in
Mounting Hole Pattern (Q): 4.38 in
Operational Features
Adjustable travel stops for precise end-position control
Fail-safe (spring-return) action: configurable for fail-open or fail-close
Smooth and stable torque output throughout the stroke
Suitable for high-cycle automation
Compatible with manual override options (M3/HW assembly)
Applications
Ball valves
Butterfly valves
Plug valves
Critical shutdown and fast-acting pneumatic control systems
Harsh outdoor or corrosive industrial environments
