BelGAS P79 High Flow Air Relay
Product Description
The BelGAS P79 High Flow Precision Air Relay is engineered to deliver exceptional accuracy and stable pressure control in demanding industrial applications. Featuring a 1:1 ratio design, the P79 provides low droop performance, fine adjustment sensitivity, and superior output stability. Its rolling diaphragm ensures enhanced sensitivity and consistent accuracy, while the balanced pintle reduces the effects of supply pressure fluctuations on output pressure.
For valve control applications, a specialized version of the P79 is available, equipped with soft exhaust seats to reduce air consumption, an increased deadband to prevent reaction to minor valve oscillations, and an adjustable integral bypass valve that can be tuned for optimum valve responsiveness.
Typical uses include volume boosting, valve motor loading, and other systems requiring precise pneumatic signal reproduction across a wide operating temperature range.
Technical Specifications
General
Model: BelGAS P79 High Flow Air Relay
Ratio: 1:1 Precision Relay
Function: High-accuracy pneumatic pressure control and signal reproduction
Applications:
Volume boosting
Valve motor loading
General precision air control
Operating Temperature Range: –40°F to +200°F (–40°C to +93°C)
Design Features

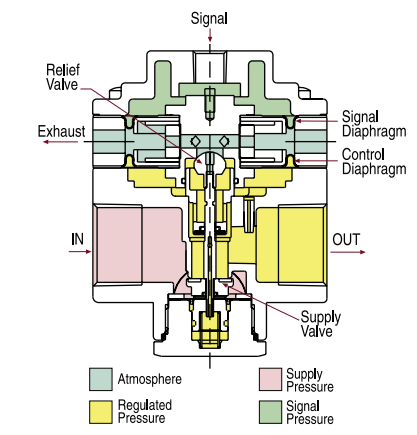

Rolling Diaphragm: Provides improved sensitivity and accuracy
Balanced Pintle Design: Minimizes output variations due to supply pressure changes
High Flow Capacity: Suitable for demanding pneumatic systems
Low Droop Performance: Ensures stable and predictable output pressure
Fine Adjustment Sensitivity: Ideal for precision control processes

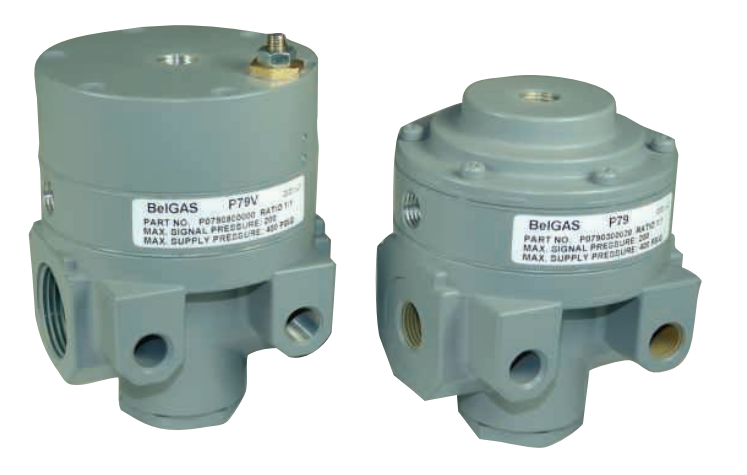

Available Versions
Standard P79
No-bleed, relieving diaphragm design
Equipped with integral bypass valve
Metal Seat P79
Relieving design with continuous bleed
No bypass valve
Offers better sensitivity
P79HR (High Relief Version)
Same features as the Metal Seat P79
Provides 25% higher exhaust capacity
