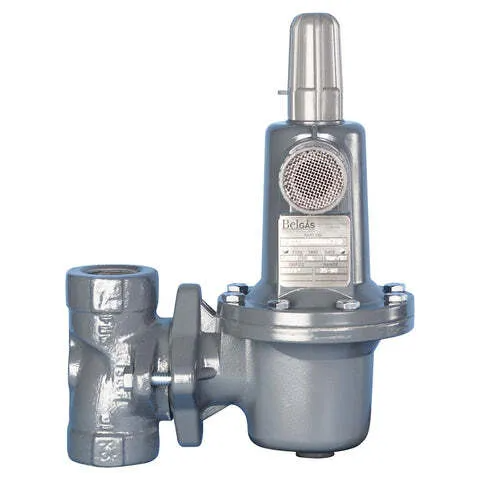

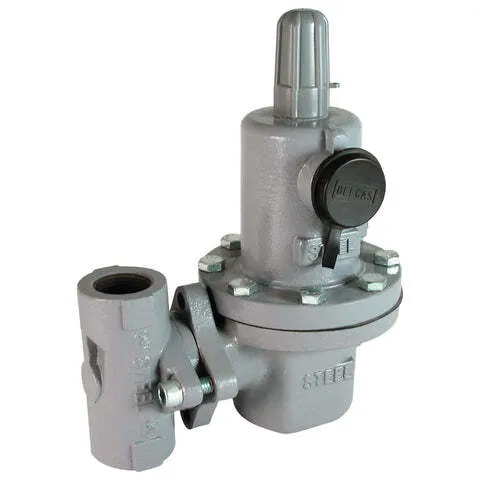

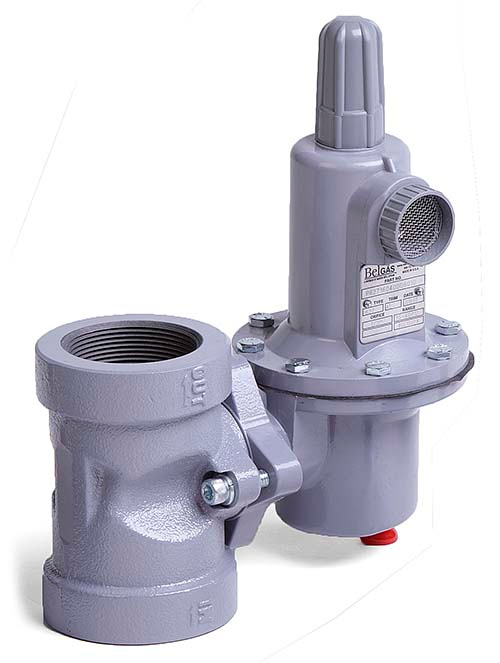

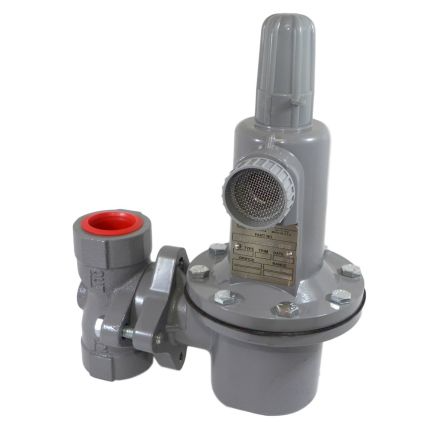

BelGAS 627 Series – P627 High Flow Gas Pressure Regulator
Rp123000.00
BelGAS 627 Series – P627 High Flow Gas Pressure Regulator
The BelGAS P627 Series is a spring-loaded, direct-operated gas pressure regulator engineered for both low- and high-pressure gas applications. Designed to deliver exceptional reliability and performance, the P627 is widely used across oil and gas, industrial, and energy sectors. Its rugged construction and versatile configuration options make it suitable for demanding environments where consistent pressure control and flow stability are critical.
The regulator is available in multiple material options, including aluminum, steel, and low-carbon cast (LCC) bodies, with corresponding bonnet and diaphragm cases. Its powder-coated epoxy exterior ensures excellent corrosion resistance, while the multi-position body and spring case design provides flexibility during installation. Additionally, the P627 can be configured for external pressure registration and is available in NACE-compliant materials for sour gas applications.
Technical Specifications
Type: Direct-operated, spring-loaded pressure regulator
Body Materials: Aluminum, Steel, or Low Carbon Cast (LCC)
Bonnet/Diaphragm Case Materials: Aluminum or Steel
Flow Capacity: Wide range, depending on model configuration
Pressure Range: Available for both low- and high-pressure applications
Maximum Inlet Pressure: Up to 400 psig (varies by model)
Outlet Pressure Range: Configurable depending on spring selection
Connection Sizes: 1/4” to 2” NPT (varies by version)
Temperature Rating: -20°F to +150°F (-29°C to +66°C)
Compliance: NACE MR0175/ISO 15156 (optional)
Finish: Durable powder-coated epoxy for enhanced corrosion protection
Mounting: Multi-position body and spring case for flexible installation
Key Features
Broad range of flow capacities for versatile application coverage
Corrosion-resistant powder-coated exterior for extended service life
Multi-position design for simplified installation and maintenance
Available in NACE-compliant construction for sour gas environments
Compatible with external pressure registration configurations
Typical Applications
Farm Tap Pressure Regulation
Monitoring and Overpressure Protection
Gas Distribution and Gate Regulation
Fuel Gas Control Systems
Gas Gathering and Transmission Lines
Pressure Reduction Stations
