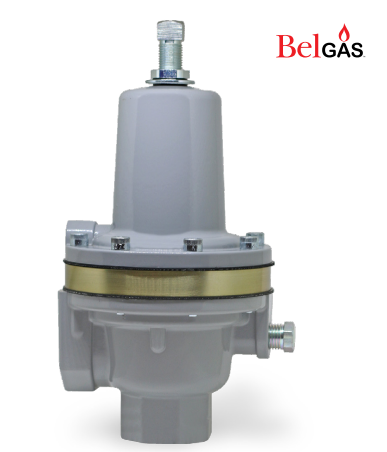

BelGAS P289RC Exhaust Booster

BelGAS P289RC Exhaust Booster

Product Description

The BelGAS P289RC is a high-capacity exhaust booster specifically engineered for applications requiring extremely fast and responsive pneumatic pressure control. Designed for use with large pneumatic actuators, surge valves, and recycle valves, the P289RC enhances system reaction time by rapidly exhausting air when differential pressure occurs between the controlling instrument and the actuator.

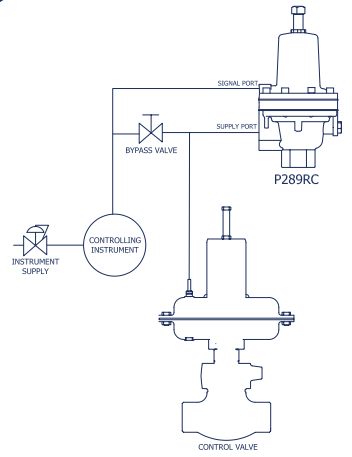

This booster amplifies the exhaust capability of the pneumatic control loop, making it ideal for compressor stations where fast operation is essential to manage sudden pressure changes or compressor surges. The device operates by utilizing the differential pressure between the spring case port and the outlet, opening proportionally as the differential increases. With a factory-set opening point of approximately 1.5 psig—non-adjustable in the field—the P289RC ensures stable and repeatable performance. Additionally, proper installation requires a bypass valve between inlet and outlet to maintain controlled operation.

Compact, durable, and constructed from corrosion-resistant materials, the P289RC provides dependable service in demanding industrial environments.

Technical Specifications

Performance

• Function: High-capacity exhaust booster for fast pressure release

• Port Size: 1" NPT

• Maximum Relief Inlet Pressure: 150 psig (8.6 bar)

• Factory Differential Opening: ~1.5 psig (non-adjustable)

• Maximum Exhaust Rate:

  • Cv = 22

  • 107,988 SCFH (standard cubic feet per hour)

Operating Conditions

• Temperature Range:

  • –20 to +150 °F (Nitrile / Neoprene elastomers)

  • 0 to +300 °F (Fluoroelastomer)

Approximate Weight

• 3 lbs (1.36 kg)

Materials of Construction

Body and Mechanical Components

• Body & Bonnet: Aluminum

• Stem: Aluminum

• Pistons (Large & Small): Zinc-plated steel

• Spring: Zinc-plated steel

• Spacer Tubes: Stainless steel

• Screens: Stainless steel

• Retaining Ring: Plated steel

Elastomers

• Diaphragm: Nitrile or Fluoroelastomer

• O-Rings: Nitrile or Fluoroelastomer

• Gaskets: Composite and Neoprene

Part Matrix – P289RC (1" & 3/4" x 1")

• Body Size Options:

  • 07: 3/4" x 1" NPT

  • 08: 1" NPT

• Diaphragm Material:

  • 0: Nitrile

  • 1: Fluoroelastomer
