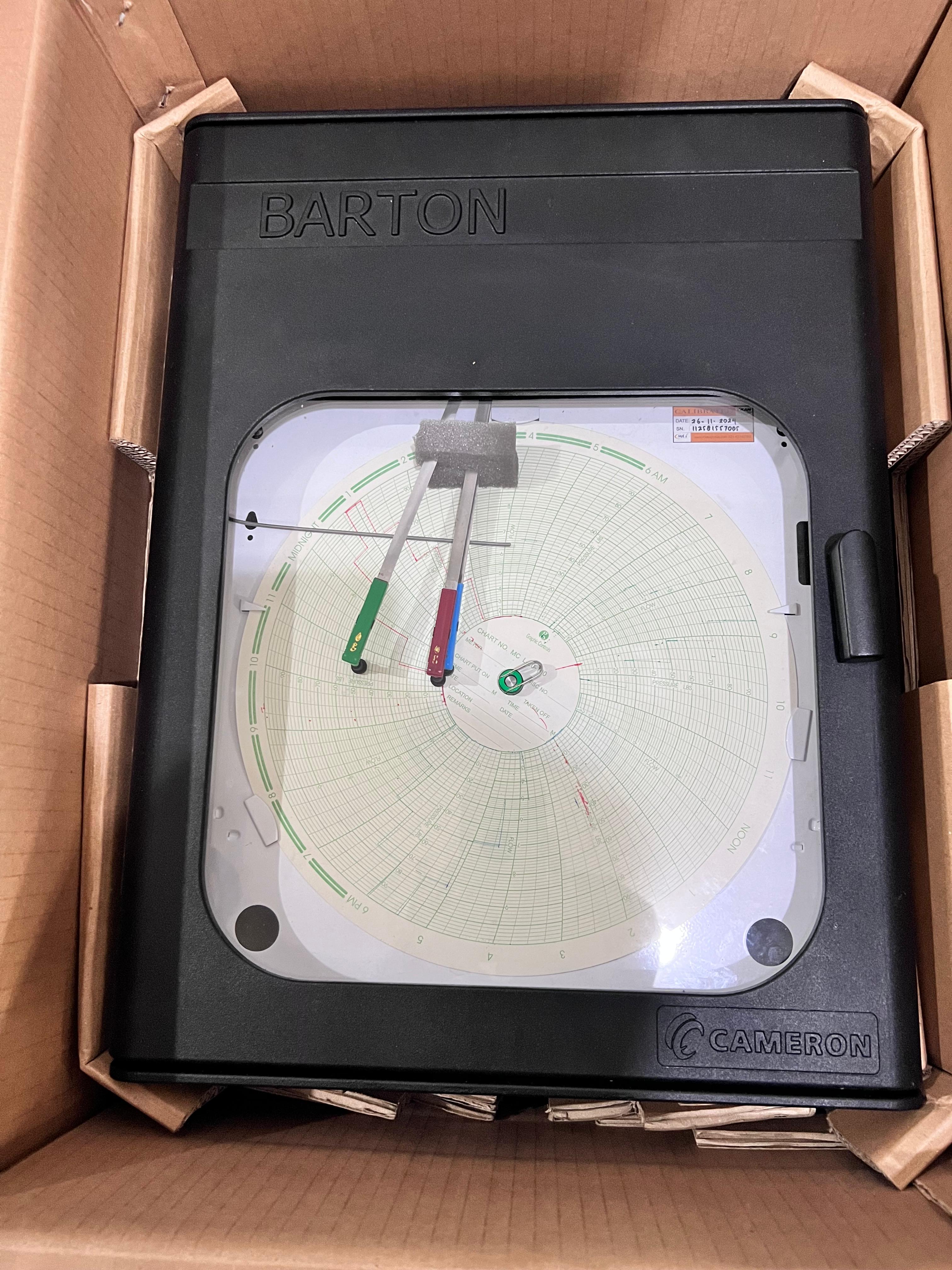

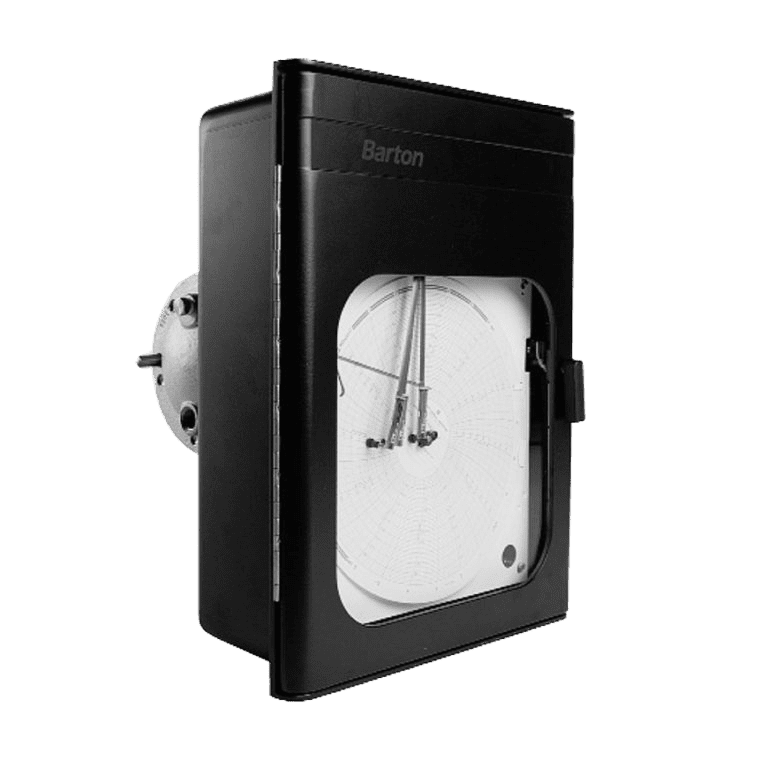

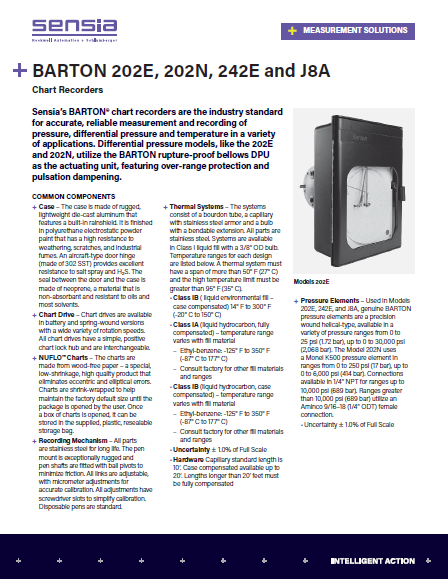

Barton Chart Recorder Model 242E – Sensia
Rp123000.00
The Barton Chart Recorder Model 242E – Sensia is a robust and versatile mechanical chart recorder designed for accurate measurement and recording of static pressure and temperature. It accommodates up to four sensing elements, allowing for simultaneous multi-variable recording on a 12-inch circular chart. The 242E unit operates completely mechanically and is available with either spring-wound or battery-operated chart drives, supporting time intervals from 60 minutes up to 31 days.
The recorder uses:
A helical Bourdon tube as the sensing element for static pressure,
A sealed thermal system with a mercury- or hydrocarbon-filled bulb and capillary system for temperature.
All sensing and recording components are mechanically linked to high-precision pen arms that transcribe data in real-time onto the chart, providing a permanent record for process monitoring or regulatory documentation.
Technical Specifications
Parameter | Specification |
Model Name | Barton Chart Recorder Model 242E – Sensia |
Measurement Functions | Static Pressure and Temperature |
Number of Pens | 1 to 4 pens (any combination of pressure and temperature) |
Chart Size | 12 inches (circular chart) |
Chart Drive Type | Spring-wound or battery-operated |
Chart Rotation Options | 60 minutes to 31 days |
Sensing Element – Pressure | Helical Bourdon tube |
Sensing Element – Temp. | Helical Bourdon tube actuated by mercury or hydrocarbon-filled sealed bulb system |
Pressure Ranges | 0–30 inHg vacuum to 0–30,000 psi |
Temperature Ranges | Class I: -200°F to 500°F (-129°C to 260°C) |
Class V: -40°F to 600°F (-40°C to 315°C) | |
Accuracy | ±1% of full scale (for both pressure and temperature) |
Capillary Tubing | Stainless steel armored capillary, 1/8" diameter |
Thermal Bulb Material | Stainless steel, 3/8" or 11/16" diameter (depending on class) |
Ambient Compensation | Class VA/IA – Fully compensated |
Class VB/IB – Case compensated | |
Case Construction | Die-cast aluminum with black polyurethane finish; hinged front with glass door |
Connection | 1/4-inch NPT female |
Mounting Options | Flush, panel, pipe (2-inch), or yoke mounting |
Pen Type | Disposable pens, color-coded by pen position and temperature class |
