Barksdale L1X-H204S Temperature Switch
Rp123000.00
Manufacturer / Brand: Barksdale
Type: Explosion-proof mechanical temperature switch (local mount, single setpoint)
Description

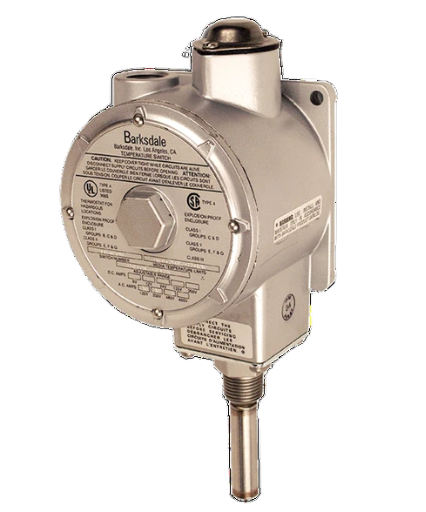

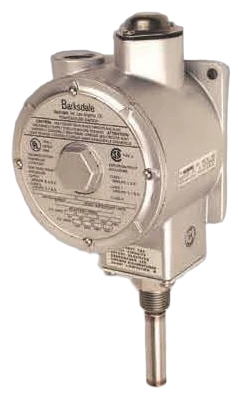

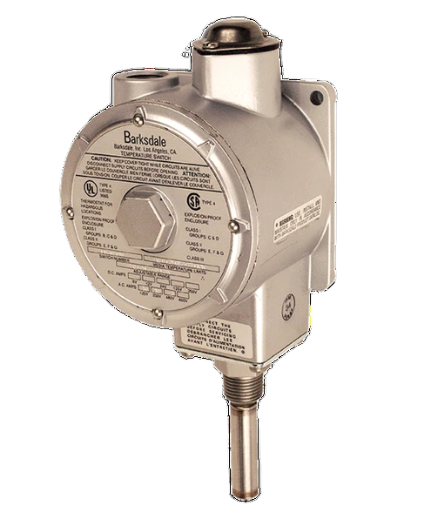

The Barksdale L1X-H204S is an explosion-proof mechanical temperature switch in the L1X series, intended for use in hazardous environments (Class I, Division 1 & 2). It provides a single setpoint SPDT (Single Pole Double Throw) switching action when a configured temperature threshold is reached. The “H204” range means it is adjustable over a span from –50 °F to +200 °F (–45 °C to +93 °C). The “S” denotes that wetted parts are stainless steel (304 SS) rather than copper. The unit incorporates a tamper-proof external adjustment knob, enclosed terminal strip, and rugged construction suitable for industrial and process control applications.
It is designed for direct mounting (local immersion) of the temperature sensor (no capillary), making it ideal for applications such as monitoring equipment temperature, safety alarms, or auxiliary control where robust and reliable switching is required in hazardous areas.
Key Features
Explosion-proof housing for hazardous locations (Class I Div 1 & 2)
Single SPDT switching action
Temperature adjustment range from –50 °F to +200 °F
Wetted parts made of stainless steel (304 SS)
Tamper-proof external adjustment
Enclosed terminal strip (3-pin) for wiring
High accuracy / repeatability (±1 %)
NEMA 4, 7, 9 / IP66 enclosure ratings
Rated for rugged industrial service and long cycle life
Technical Specifications
Parameter | Specification |
Switching Range (Setpoint Code H204S) | –50 °F to +200 °F (–45 °C to +93 °C) |
Wetted Material | 304 stainless steel (sensor / bulb) |
Switch Type | Single SPDT (one setpoint) |
Electrical Rating | 10 A @ 125 VAC / 250 VAC; 3 A @ 480 VAC |
Accuracy / Repeatability | Approximately ±1 % of mid-range |
Adjustment / Differential (Hysteresis) | Adjustable differential (varies depending on switch type) |
Enclosure / Protection | Explosion-proof, NEMA 4, 7, 9 / IP66 |
Mounting / Sensor Type | Local immersion (no remote capillary) |
Terminal Connection | 3-pin enclosed terminal strip |
Temperature Limits (Sensor / Media) | Maximum media/sensor temperature up to ~250 °F (varies with model) |
Operating Life | Designed for at least 1,000,000 cycles under normal conditions |
Certifications / Approvals | UL, CSA listing for temperature regulators in hazardous locations; optional ATEX versions |
Weight | Approx. 4 lbs (1.8 kg) |
