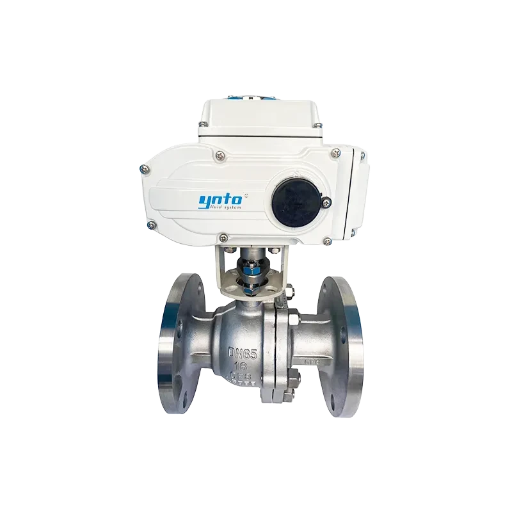

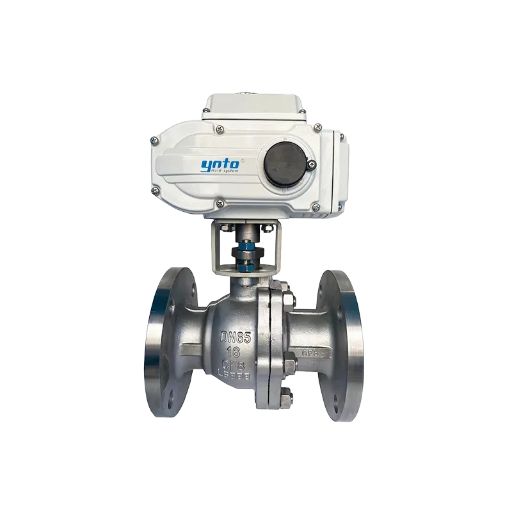

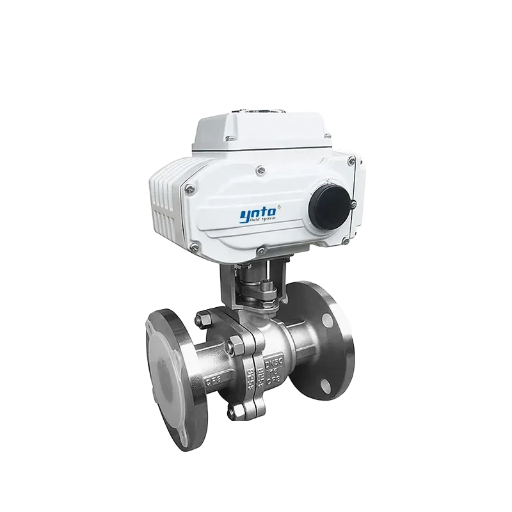

YNTO AC220V / 24VDC 4–20 mA Electric Actuator
Two-Piece Flanged 2-Way Electric Ball Valve (Water Flow Control – Q941F/H16)
Product Description
The YNTO Two-Piece Flanged 2-Way Electric Ball Valve (Q941F/H16) is a high-performance water and process flow control valve designed for automated industrial applications. This valve operates with a 90° rotary motion and is driven by a reliable YNTO electric actuator supporting AC220V or 24VDC power supply with 4–20 mA control signal, making it suitable for both ON/OFF and modulating control systems.
Featuring excellent sealing performance, high flow capacity, and low flow resistance, the valve adopts a full-bore design where the internal diameter matches the pipeline diameter, minimizing pressure drop. Its simple two-piece construction ensures easy maintenance and long service life. The valve is capable of handling water, oil, steam, acids, alkalis, and fibrous media, making it a versatile solution for demanding industrial environments.
This electric flanged ball valve is widely used in petroleum, chemical processing, metallurgy, light industry, paper mills, power plants, water treatment, and refrigeration systems, where precise and reliable flow control is required.
Technical Specifications
Product Type
Electric Actuated Ball Valve
Two-Piece, 2-Way Design
Model: Q941F / Q941H16
Actuator
YNTO Electric Actuator
Power Supply: AC 220V / DC 24V
Control Signal: 4–20 mA
Operation: 90° Rotary Motion
Nominal Diameter
DN15 – DN200
Nominal Pressure Rating
PN10 (1.0 MPa) to PN64 (6.4 MPa)
Applicable Temperature
PTFE Seat: up to 150 °C
PPL Seat: up to 200 °C
Metal Hard Seal: up to 425 °C
Applicable Media
Water
Oil
Steam
Acids
Alkalis
Connection Type
Flanged Connection
Body Material
Cast Steel
Stainless Steel: 304 / 316 / 316L
Duplex Stainless Steel
Ball (Core) Material
Stainless Steel: 304 / 316 / 316L
Duplex Stainless Steel
Stem Material
Stainless Steel
Seat / Sealing Material
PTFE (Polytetrafluoroethylene)
High-Temperature PPL
Metal Hard Seal (optional)
Key Features & Benefits
Excellent sealing for strict shut-off requirements
Full-bore design with minimal flow loss
Supports 4–20 mA signal for precise flow control
Suitable for high pressure and high temperature applications
Simple structure with easy maintenance
Long operational life and stable performance
Supplied by PT. Karya Manaru Energi, an Authorized Distributor Electrical Actuator Valve, Authorized Distributor Control Valve, and Authorized Distributor Pneumatic Actuator, as well as an Authorized Distributor YNTO in Indonesia. We provide reliable valve automation solutions for industrial flow control systems with professional technical support and competitive delivery.
