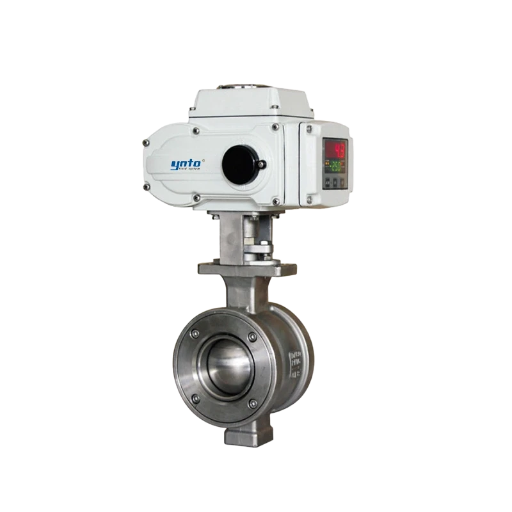

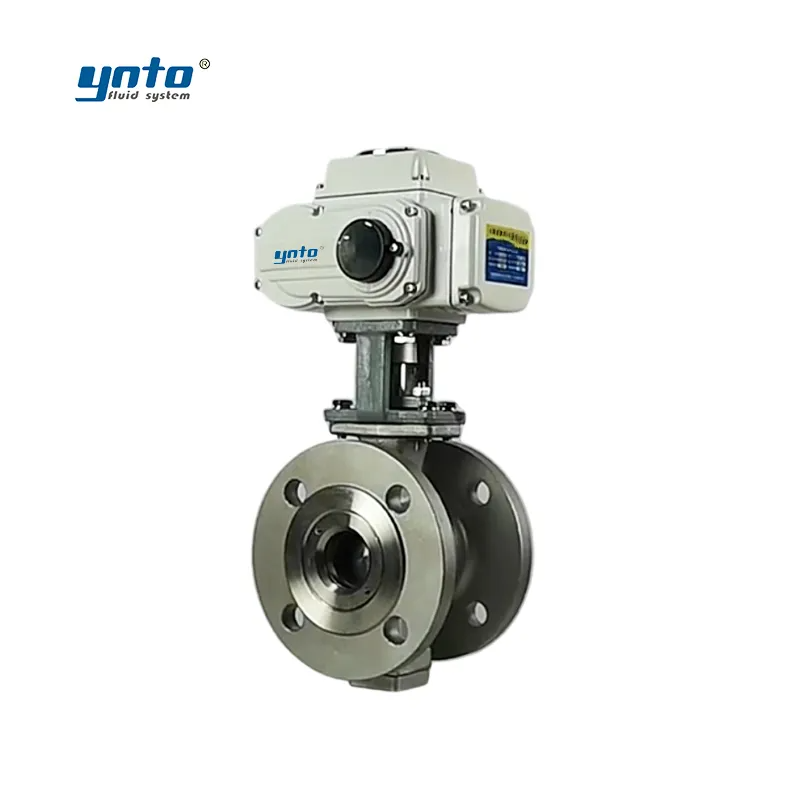

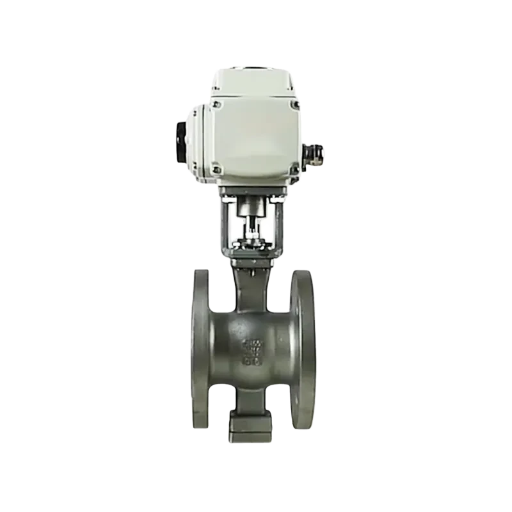

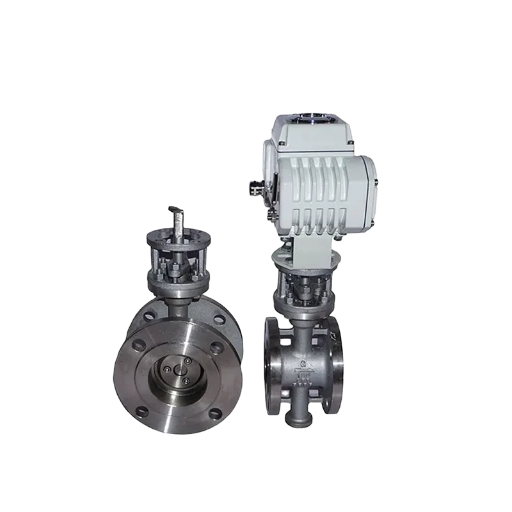

YNTO White Electric Actuator Stainless Steel Wafer-Type V-Port Ball Valve
Rp123000.00
YNTO White Electric Actuator Stainless Steel Wafer-Type V-Port Ball Valve
PT. Karya Manaru Energi, Authorized Distributor of Ynto in Indonesia, offers the YNTO White Electric Actuator Wafer-Type V-Port Ball Valve, designed for precise flow regulation in demanding industrial applications. The valve features a V-shaped core that adjusts the flow area, and its relative rotation with the seat generates shear force to cut fibers and prevent clogging.
This valve provides strong flow capacity, high regulation accuracy, excellent sealing performance, and lightweight construction. It is ideal for slurries, fiber-containing media, and media with fine solid particles. Widely used in industrial automation control systems, it serves industries such as papermaking, food processing, petroleum, chemical, metallurgy, power, pharmaceuticals, and wastewater treatment. As a trusted Distributor of Electric Actuator Ball Valve and Agen Sole Ynto, PT. Karya Manaru Energi ensures reliable, fully certified valves for critical process control applications.
Technical Specifications
General Parameters
Nominal Diameter: DN15–DN200
Nominal Pressure: PN10 (1.0 Mpa) – PN25 (2.5 Mpa)
Applicable Temperature: PTFE 150℃, PPL 200℃, Metal Hard Seal 425℃
Suitable Medium: Water, Oil, Steam, Acids, Alkalis
Connection Type: Wafer / Flanged
Materials
Valve Body: Cast Steel, Stainless Steel (304, 316, 316L), Duplex Steel
Valve Core: Stainless Steel (304, 316, 316L), Duplex Steel
Stem Material: Stainless Steel or Duplex Steel

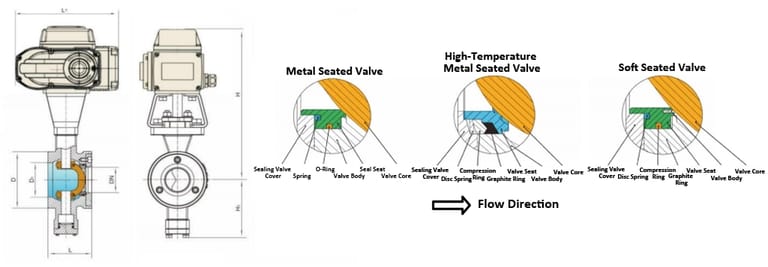

Seat Material: PTFE, High-Temperature PPL, Metal Hard Seal
Performance Features
V-shaped ball core for precise flow regulation
Shearing action prevents fiber clogging
High flow capacity and regulation accuracy
Excellent sealing performance
Lightweight and easy to install
Applications
Industrial automation systems
Papermaking, food, petroleum, chemical, metallurgy, power, pharmaceuticals, wastewater treatment
