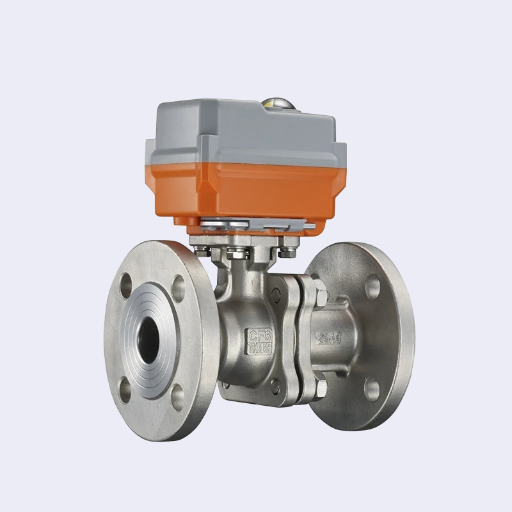

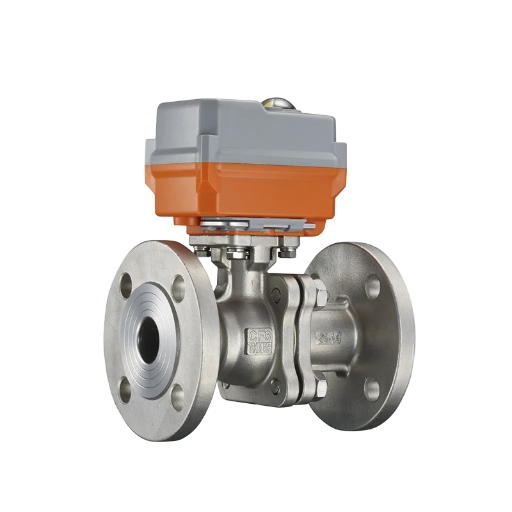

YNTO Two-Piece Flanged Stainless Steel Electric Ball Valve (SUS304 / SUS316)
Rp123000.00
YNTO Two-Piece Flanged Stainless Steel Electric Ball Valve (SUS304 / SUS316)
Product Description
The YNTO Two-Piece Flanged Stainless Steel Electric Ball Valve (Q941F/H16) is a high-performance 90° rotary valve designed for reliable on/off control and tight shut-off applications. Manufactured from premium stainless steel materials (SUS304 / SUS316 / 316L) and equipped with a robust YNTO electric actuator, this valve delivers excellent sealing performance, high flow capacity, and minimal pressure loss.
The full-bore design ensures that the valve bore diameter matches the pipeline diameter, significantly reducing flow resistance. With a simple internal structure, low maintenance requirements, and long service life, this electric flanged ball valve is ideal for handling gas, liquid, steam, and fibrous media under demanding industrial conditions.
Widely applied in oil & gas, chemical processing, metallurgy, power plants, paper mills, light industry, and refrigeration systems, this valve is a reliable solution for automated flow control systems requiring precise and secure operation.
Technical Specifications
Product Type
Electric Flanged Ball Valve, Two-Piece Design
Model: Q941F / Q941H16
Nominal Diameter
DN15 – DN200
Nominal Pressure Rating
PN10 (1.0 MPa) up to PN64 (6.4 MPa)
Applicable Temperature Range
PTFE Seat: up to 150 °C
PPL Seat: up to 200 °C
Metal Hard Seal: up to 425 °C
Applicable Media
Water
Oil
Steam
Acids
Alkalis
Connection Type
Flanged Connection
Body Material
Cast Steel
Stainless Steel: 304 / 316 / 316L
Duplex Stainless Steel
Ball (Core) Material
Stainless Steel: 304 / 316 / 316L
Duplex Stainless Steel
Stem Material
Stainless Steel (standard, material matched to body)
Seat / Sealing Material
PTFE (Polytetrafluoroethylene)
High-Temperature PPL
Metal Hard Seal (optional)
Actuation
YNTO Electric Actuator
90° Rotary Operation
Suitable for strict sealing and automated control systems
Key Advantages
Excellent sealing performance for demanding applications
Full-bore design with low flow resistance
High pressure and temperature capability
Simple structure with easy maintenance
Long service life and stable operation
Suitable for gas, liquid, steam, and corrosive media
This product is supplied by PT. Karya Manaru Energi, an Authorized Distributor of Electrical Actuator Valves, Control Valves, and Pneumatic Actuators, and an Authorized Distributor of YNTO products in Indonesia. We deliver reliable valve automation solutions for critical industrial applications with professional technical support and competitive lead times.
