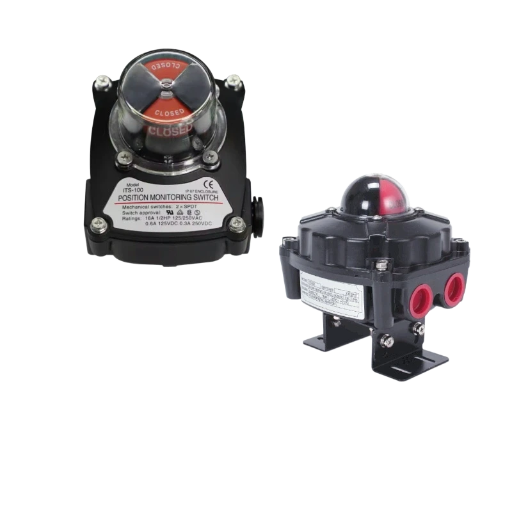

YNTO ITS100 / ITS300 Explosion Proof Limit Switch Box
Rp123000.00
Product Description
YNTO ITS100 / ITS300 Explosion Proof Limit Switch Box is a robust valve position monitoring device designed for both on-site and remote indication of valve open/close status. Engineered for use in hazardous environments, the ITS100/300 series features an explosion-proof enclosure with a high protection rating of IP67, ensuring reliable performance under harsh industrial conditions.
The limit switch box complies with ISO 5211, NAMUR, and IP protection standards, enabling seamless integration with pneumatic actuators and automated valve systems. Multiple enclosure and switch options—including mechanical and proximity switches—allow users to select the most suitable configuration for their application.
With its durable die-cast aluminum housing, clear visual indication, and flexible wiring options, the ITS100/300 series delivers safe, accurate, and long-lasting valve position feedback for critical industrial operations.
Key Features
Explosion-proof limit switch box for hazardous area applications
IP67 protection for dust-tight and waterproof performance
Suitable for on-site and remote valve position indication
Dual-axis visual indicator for full-angle position display
Fully compliant with NAMUR standard for maximum interchangeability
Anti-drop bolt on the top cover for safe maintenance
Die-cast aluminum alloy enclosure with polyester coating
Mechanical switch or proximity switch options available
Spring-loaded cam adjustment without special tools
Multiple terminal blocks with up to 8 standard contacts
Flexible cable entry options, customizable upon request
Technical Specifications
General Information
Model: ITS100 / ITS300
Type: Explosion Proof Limit Switch Box
Function: Valve Position Indication (Open / Close)
Operation: Rotary Type
Mounting Standard: ISO 5211 / NAMUR
Protection Rating: IP67
Electrical Configuration
Switch Type Options:
Mechanical Limit Switch
Proximity Switch
Terminal Block:
8 Standard Contacts (Expandable Options Available)
Mechanical & Enclosure
Housing Material: Die-Cast Aluminum Alloy
Surface Coating: Polyester Powder Coating
Visual Indicator: Two-Dimensional, Full-Angle Display
Cover Safety: Anti-off bolt design
Cable Entry
Standard Entry:
Double G 3/4" Cable Entries
Optional:
4 Cable Entry Custom Configuration
Other Thread Standards Available
Environmental Suitability
Installation Area: Hazardous Areas
Application: Pneumatic Actuator Valve Automation
Applications
Oil & Gas Facilities (Onshore & Offshore)
Petrochemical and Chemical Plants
Power Plants
Hazardous Area Process Automation
Pneumatic Valve Automation Systems
Industrial Control and Instrumentation
