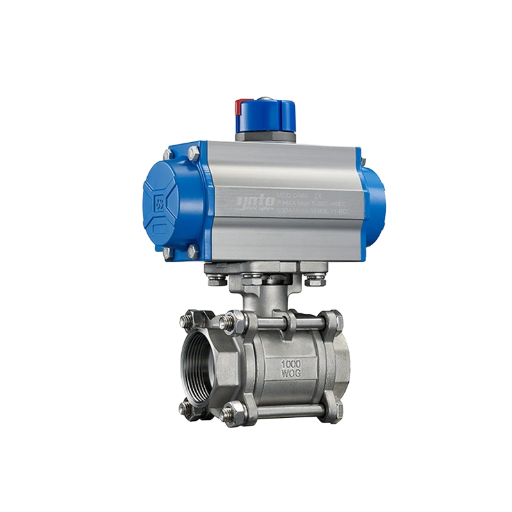

YNTO Integrated Stainless Steel Pneumatic Three-Piece Threaded Ball Valve

Product Description

YNTO Integrated Stainless Steel Pneumatic Three-Piece Threaded Ball Valve is a high-performance quarter-turn valve engineered for industrial automation and demanding process applications. Featuring an integrated three-piece body design, this valve offers excellent strength, compact construction, lightweight handling, and reliable long-term performance.

The pneumatic three-piece ball valve provides a large flow capacity with minimal pressure drop, making it ideal for media that are viscous, particle-laden, or fibrous. Its modular structure allows easy disassembly, inspection, and maintenance without removing the valve body from the pipeline.

Widely applied in oil & gas, petrochemical, power generation, chemical processing, food & beverage, environmental protection, paper-making, HVAC systems, and research facilities, this valve ensures safe, precise, and efficient flow control under various operating conditions.

PT. Karya Manaru Energi, as an Authorized Distributor and Main Distributor of YNTO in Indonesia, supplies this valve with full technical support for industrial and energy-sector projects.

Key Features

• Integrated three-piece valve structure with compact and lightweight design

• Low fluid resistance for high-efficiency flow performance

• Easy disassembly and maintenance without pipeline removal

• Precision-machined ball with smooth bore to prevent media buildup

• Excellent sealing performance for high leak-tightness requirements

• Flexible connection options: threaded, butt-weld, clamp, and external thread

• Suitable for viscous, corrosive, particle-containing, and fibrous media

• Pneumatic actuator-ready for automated ON/OFF control

Technical Specifications

General Data

• Valve Type: Pneumatic Three-Piece Ball Valve

• Operation: Pneumatic Actuated (Quarter-Turn)

• Design: Integrated Three-Piece Construction

• Nominal Diameter: DN25 – DN80

• Nominal Pressure:

  • PN16 (1.6 MPa)

  • PN25 (2.5 MPa)

  • PN64 (6.4 MPa)

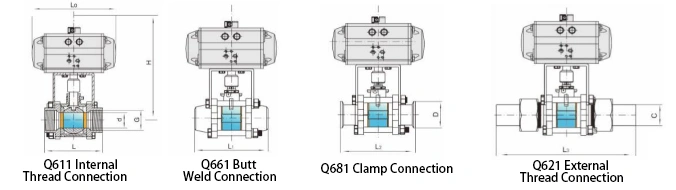

Connection Types

• Internal Thread Connection

• Butt Welding Connection

• Clamp Connection

• External Thread Connection

Materials of Construction

Operating Conditions

• Applicable Media:

  • Water, oil, steam

  • Corrosive fluids (e.g. nitric acid)

• Operating Temperature:

  • -29°C to 180°C (Enhanced PTFE)

  • -29°C to 180°C (PPL)

Applications

• Oil & Gas Processing Facilities

• Petrochemical Plants

• Power Plants

• Chemical & Process Industries

• Food & Beverage Processing

• Environmental & Water Treatment Systems

• HVAC and Industrial Automation Systems
