YNTO High-Performance White Three-Way Flanged Ball Valve
Rp123000.00

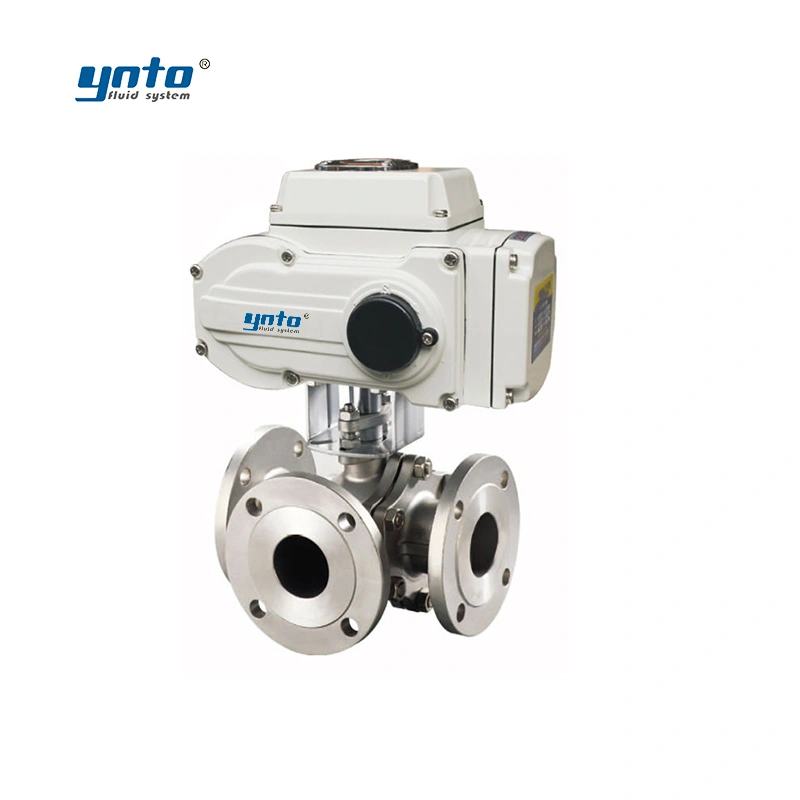

YNTO High-Performance White Three-Way Flanged Ball Valve
PT. Karya Manaru Energi, Authorized Distributor of Ynto in Indonesia, offers the YNTO High-Performance White Three-Way Flanged Ball Valve, designed for reliable flow control and easy installation in industrial pipeline systems. Available in T-type (Q945F) and L-type (Q944F) configurations, this valve allows precise switching, diverting, and mixing of fluids. The T-type is ideal for changing the flow direction between two perpendicular channels, while the L-type supports diverting or merging flows efficiently.
Engineered for durability and high performance, it is widely used across industries including water treatment, food processing, textiles, papermaking, energy, petrochemical, metallurgy, mining, and steel. As a trusted Distributor of Electric Actuator Ball Valve and Agen Sole Ynto, PT. Karya Manaru Energi provides certified, high-quality valves suitable for demanding industrial automation applications.
Technical Specifications
General Parameters
Nominal Diameter: DN15–DN200
Nominal Pressure: PN10 (1.0 Mpa) – PN25 (2.5 Mpa)
Applicable Temperature: PTFE 150℃, PPL 200℃, Metal Hard Seal 425℃
Suitable Medium: Water, Oil, Steam, Acids, Alkalis
Connection Type: Flanged
Materials
Valve Body: Cast Steel, Stainless Steel (304, 316, 316L), Duplex Steel
Valve Core: Stainless Steel (304, 316, 316L), Duplex Steel
Stem Material: Stainless Steel or Duplex Steel
Seat Material: PTFE, High-Temperature PPL, Metal Hard Seal
Performance Features

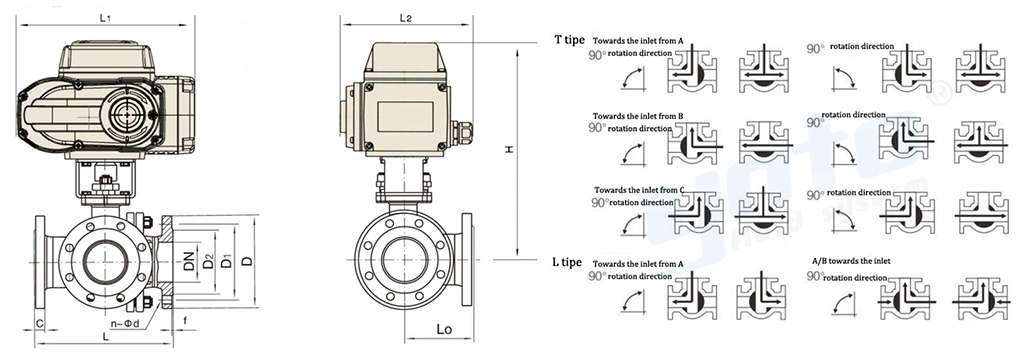

Available in T-type and L-type configurations for flexible flow control
Reliable sealing performance
Durable construction for high-pressure and high-temperature media
Suitable for easy installation and maintenance
Applications
Pipeline systems in water, food, textile, paper, energy, petrochemical, metallurgy, mining, and steel industries
Flow direction switching, diverting, or mixing fluids
