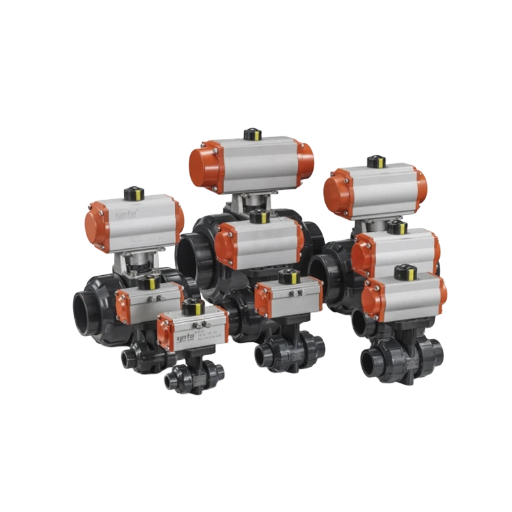

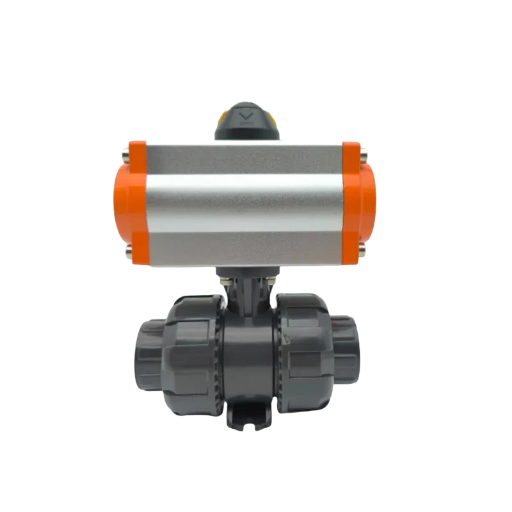

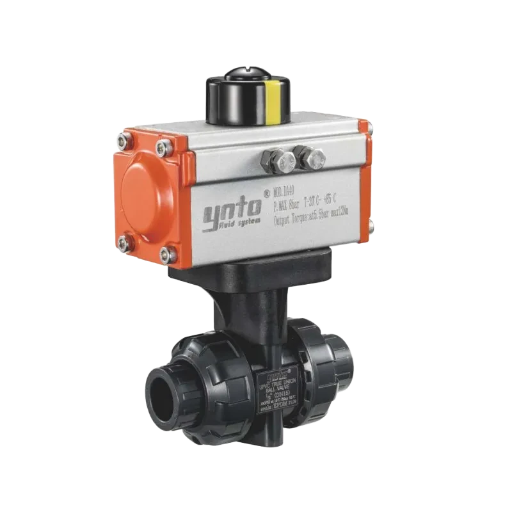

YNTO Double Union Pneumatic Plastic Ball Valve
Optional Valve Body: UPVC (PVC-U), CPVC, PPH, PVDF
Rp123000.00
YNTO Double Union Pneumatic Plastic Ball Valve
Optional Valve Body: UPVC (PVC-U), CPVC, PPH, PVDF
Product Description
The YNTO Double Union Pneumatic Plastic Ball Valve is a lightweight, corrosion-resistant quarter-turn (0–90°) valve engineered for aggressive and high-purity media. With double-union construction, it enables quick installation, easy removal, and simplified maintenance without disturbing the pipeline.
Available in UPVC (PVC-U), CPVC, PPH, and PVDF, this valve delivers excellent chemical resistance, aging resistance, and reliable sealing—making it ideal for environmental protection, water & wastewater treatment, PCB equipment, electroplating, chemical processing, semiconductor manufacturing, energy systems, and chlor-alkali plants. Each valve is 100% pressure tested prior to shipment to ensure dependable performance.
Product Features
CNC-machined valve body interior ensures accurate seat sealing and precise concentricity of through-holes.
Precision-finished ball (rough turning → fine turning → polishing) for true roundness, smooth operation, and reduced leakage risk.
Dedicated boring processes for valve body and stem assembly holes ensure reliable sealing.
Reinforced threads (≥ 2-1/2") provide tighter nut-to-body fit and higher mechanical strength.
100% factory pressure testing guarantees quality and safety.
Technical Specifications
Valve Type
Double Union Pneumatic Plastic Ball Valve
Operation: 0–90° Quarter-Turn
Nominal Diameter
DN15 – DN100
Nominal Pressure
PN10, PN16
Actuator
AT Series Pneumatic Actuator
Cylinder Type: Double-acting / Single-acting (Normally Open / Normally Closed)
Air Supply Pressure
Double-acting: 4–8 bar
Single-acting: 5–8 bar
Media Temperature Range
PVC-U (UPVC): 0 to 55 °C
CPVC: 0 to 95 °C
PP-H: 0 to 90 °C
PVDF: –20 to 140 °C
Valve Body Material
PVC-U (UPVC), CPVC, PP-H, PVDF
Sealing Material
EPDM, FPM (Viton)
Connection Methods
Socket
Threaded (NPT, PT, BSPF)
Socket welding
Butt welding
Connection Standards
DIN, ANSI, JIS, CNS
Optional Accessories
Solenoid valve
Air filter regulator
Valve position feedback signal (limit switch)
Pneumatic positioner, etc.
Key Advantages
Excellent resistance to corrosion and chemicals
Lightweight construction with easy installation and maintenance
Double-union design for fast line disassembly
Smooth operation and tight shut-off
Broad temperature coverage with multiple plastic materials
Reliable automation with AT series pneumatic actuators
Typical Applications
Water & wastewater treatment
Chemical and chlor-alkali processing
PCB and electroplating lines
Semiconductor and high-purity systems
Energy and utility services
Supplied by PT. Karya Manaru Energi, a trusted Authorized Distributor Electrical Actuator Valve, Authorized Distributor Control Valve, and Authorized Distributor Pneumatic Actuator, and an Authorized Distributor of YNTO products in Indonesia. We deliver dependable valve automation solutions with professional technical support and responsive service.
