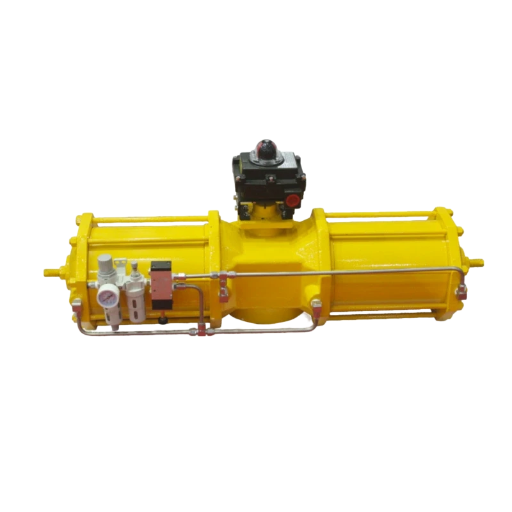

AW Pneumatic Actuator
30–300 Nm Torque | 90° / 180° Rotation | Automation for Oil & Gas & Water Treatment Systems
Product Description
The AW Pneumatic Actuator is a high-performance rotary pneumatic actuator designed for reliable valve automation in industrial control systems. Engineered for precise on/off and positioning control, it converts compressed air energy into rotary motion, making it ideal for actuating ball valves, butterfly valves, and plug valves.
Available in double-acting and single-acting (spring return) configurations, the AW actuator delivers stable torque output, fast response, and long service life, even in harsh environments. With rotation options of 90° or 180° and torque ranges from 30 to 300 Nm, it is widely used in oil & gas, chemical processing, water treatment, power generation, pulp & paper, and metallurgy.
Its robust double-cylinder, double-piston fork-drive design ensures smooth operation, high efficiency, and excellent durability for frequent cycling applications.
Working Principle
1. Actuation Method
Double-Acting (AWxx):
Uses compressed air on both sides of the pistons to open and close the valve. Ideal for applications requiring stable positioning and continuous control.Single-Acting / Spring Return (AWxxS):
Uses compressed air in one direction, with springs providing automatic return to the fail-safe position (normally open or normally closed) when air supply is lost.
2. Motion Conversion
Linear piston movement is converted into rotary motion through an internal fork-drive mechanism, delivering consistent torque across the stroke—particularly suitable for large-diameter ball and butterfly valves.
Technical Specifications
Actuator Type
Rotary Pneumatic Actuator
Double-Acting (AWxx)
Single-Acting / Spring Return (AWxxS)
Output Torque
30 – 300 Nm
Rotation Angle
Double-Acting: 90°
Single-Acting: 90°
Adjustable from both ends: ±5°
Operating Temperature
–20 °C to +60 °C
Air Supply
Medium: Filtered, dry, or lubricated clean air
Minimum Pressure: 0.4 MPa
Maximum Pressure: 1.0 MPa
Design Structure
Double cylinder, double piston, fork-drive mechanism
Cylinder inner wall hard chrome plated for high wear resistance
Oil-free shaft and guide rings to reduce friction and extend service life
Accessories (Optional)
Single or double solenoid valve
Limit switch box / position feedback transmitter
Electro-pneumatic positioner
Air filter regulator (air preparation unit)
Manual override mechanism
Key Advantages
High and stable output torque, suitable for large rotary valves
Fast response for high-frequency operation
Adjustable rotation angle for precise control
Explosion-proof operation (no electrical sparks)
Long service life with low maintenance requirements
Flexible automation with wide accessory compatibility
Industry Applications
Oil & Gas: Pipeline valves, storage tanks, flow isolation and safety control
Chemical Industry: Corrosive and hazardous media control
Water Treatment: Flow and pressure regulation in water supply and wastewater systems
Power Plants: Steam, cooling water, and auxiliary fluid control
Pulp & Paper & Metallurgy: High-temperature, dusty, and heavy-duty environments
Supplied by PT. Karya Manaru Energi, an Authorized Distributor Electrical Actuator Valve, Authorized Distributor Control Valve, and Authorized Distributor Pneumatic Actuator, providing reliable automation solutions for industrial valve systems. We support oil & gas, water treatment, and process industries with professional technical expertise and responsive service.
