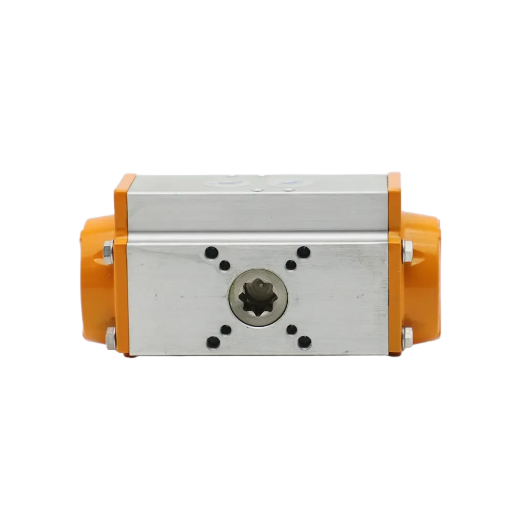

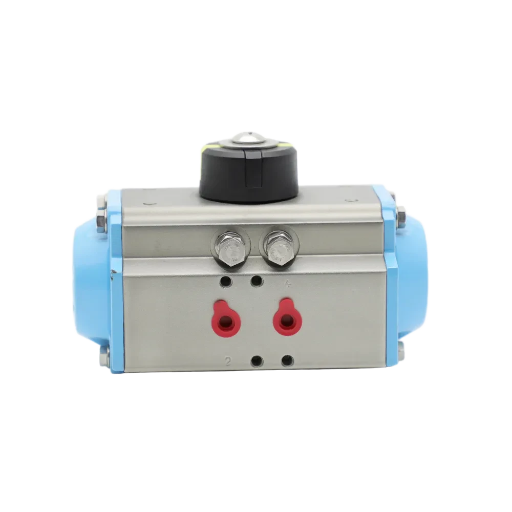

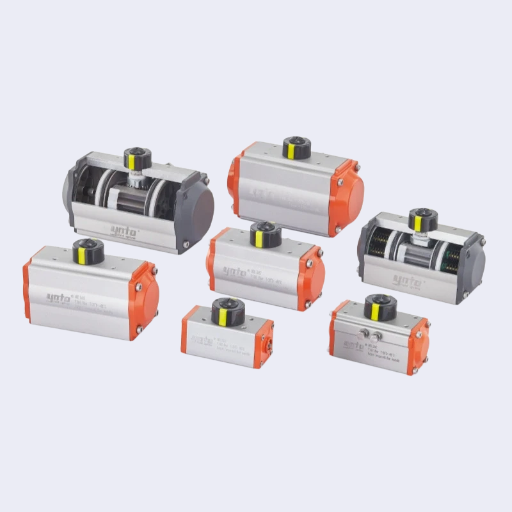

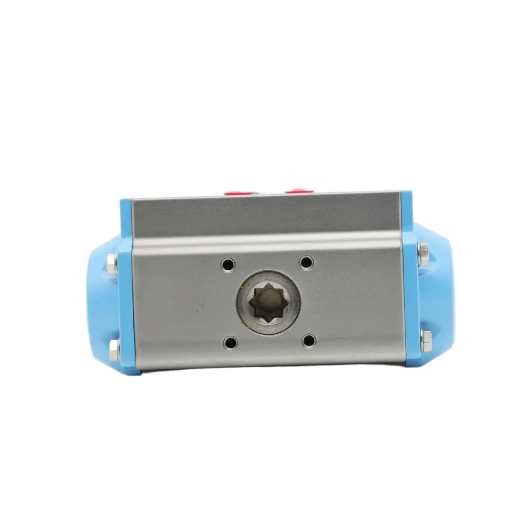

Ynto AT Pneumatic Actuator
Rp123000.00
AT Pneumatic Actuator
30–500 Nm Torque | 90° / 180° Rotation | IP67 Protection | Chemical & Pharmaceutical Automation Systems
Product Description
The AT Pneumatic Actuator is a robust and reliable rotary pneumatic actuator designed for industrial automation systems that require precise valve control. Powered by compressed air, the AT actuator delivers fast and accurate on/off or positioning control for rotary valves such as ball valves, butterfly valves, and plug valves.
With a torque range of 30–500 Nm, selectable 90° or multi-angle rotation, and IP67 environmental protection, the AT pneumatic actuator is well suited for demanding applications in oil & gas, chemical processing, power generation, water treatment, food, and pharmaceutical industries. Its compact aluminum body, low-friction internal design, and NAMUR-standard interface allow easy integration with automation accessories and control systems.
Working Principle
1. Actuation Modes
Double-Acting:
Compressed air is supplied alternately to both sides of the piston to drive valve opening and closing. When air supply stops, the valve remains in its last position, ideal for precise control applications.Single-Acting (Spring Return):
Uses compressed air in one direction and a pre-loaded spring for automatic return to a fail-safe position (normally open or normally closed) when air supply is lost.
2. Motion Conversion
Compressed air drives the piston inside the cylinder, rotating the output shaft to provide 90° standard rotation, with optional 120°, 135°, or 180° travel for special applications.
Technical Specifications
Actuator Type
Rotary Pneumatic Actuator
Double-Acting and Single-Acting (Spring Return)
Output Torque
30 – 500 Nm
Rotation Angle
Standard: 90°
Optional: 120°, 135°, 180°, and three-position type
Stroke Adjustment: ±5° at open and close positions
Protection Class
IP67
Operating Temperature
Standard: –20 °C to +80 °C
High / Low temperature versions available with special sealing materials
Air Supply
Clean, dry, or lubricated compressed air
Operating Pressure: 0.4 – 0.8 MPa (max. 1.0 MPa)
Body Material
High-strength extruded aluminum alloy
Internal surface finely ground and hard-anodized for wear resistance
Standards & Compliance
ISO 5211
DIN 3337
VDI / VDE 3845
NAMUR
Bearings & Seals
High-quality low-friction bearings
Long service life, low noise operation
Accessories (Optional)
NAMUR solenoid valve (direct mounting)
Limit switch box / position indicator
Electro-pneumatic positioner
Air filter regulator
Manual override
Key Advantages
High torque output with compact design
IP67 protection for harsh environments
Fast response and stable operation
Spark-free operation, ideal for explosive areas
Easy installation with NAMUR-standard accessories
Low maintenance and long service life
Suitable for hygienic and clean applications in food & pharmaceutical industries
Industry Applications
Oil & Gas: Flow isolation and pipeline control
Chemical Industry: Corrosive and hazardous media handling
Water Treatment: Flow and pressure regulation
Power Plants: Steam and cooling water control
Food & Pharmaceutical: Clean, sterile, and spark-free valve automation
Supplied by PT. Karya Manaru Energi, a trusted Authorized Distributor Electrical Actuator Valve, Authorized Distributor Control Valve, and Authorized Distributor Pneumatic Actuator, delivering reliable valve automation solutions for industrial, chemical, and pharmaceutical applications. We provide professional technical support and integrated automation solutions tailored to project requirements.
