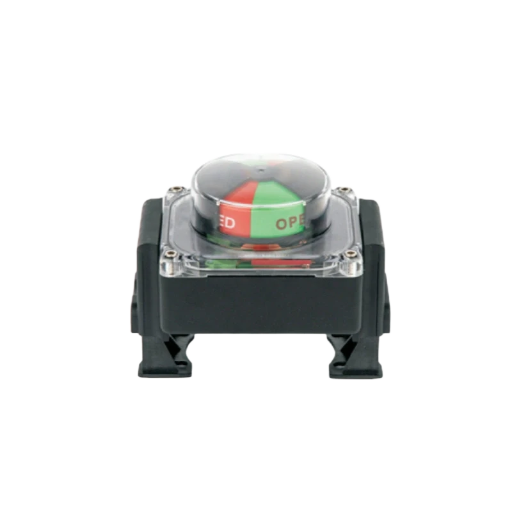

YNTO APL230 IP67 Waterproof Limit Switch Box
Rp123000.00
Product Description
YNTO APL230 IP67 Waterproof Limit Switch Box is a compact, economical, and reliable valve position monitoring device designed to indicate OPEN / CLOSE status and transmit ON / OFF signals to control systems. Featuring a durable plastic housing, the APL230 is well-suited for corrosive and humid environments where metal enclosures may be affected.
The limit switch box is constructed with a polyamide base and a transparent polycarbonate cover, providing excellent corrosion resistance and visibility of valve position. With its IP67 protection rating, the APL230 ensures dust-tight and waterproof performance, making it ideal for water treatment, desalination plants, and general industrial automation applications.
Designed as a ready-to-mount solution, the APL230 includes an integrated NAMUR mounting kit, enabling quick and easy installation on pneumatic actuators.
Key Features
Compact and economical limit switch box design
IP67 waterproof and dust-tight protection
Suitable for indoor applications and selected hazardous area installations
Corrosion-resistant plastic housing
Polyamide bottom enclosure with transparent polycarbonate cover
Flat lid or 3D visual position indicator options
Integrated NAMUR mounting kit for easy installation
One or two robust threaded cable entries
Simple and convenient terminal wiring
Reliable OPEN / CLOSE valve position indication

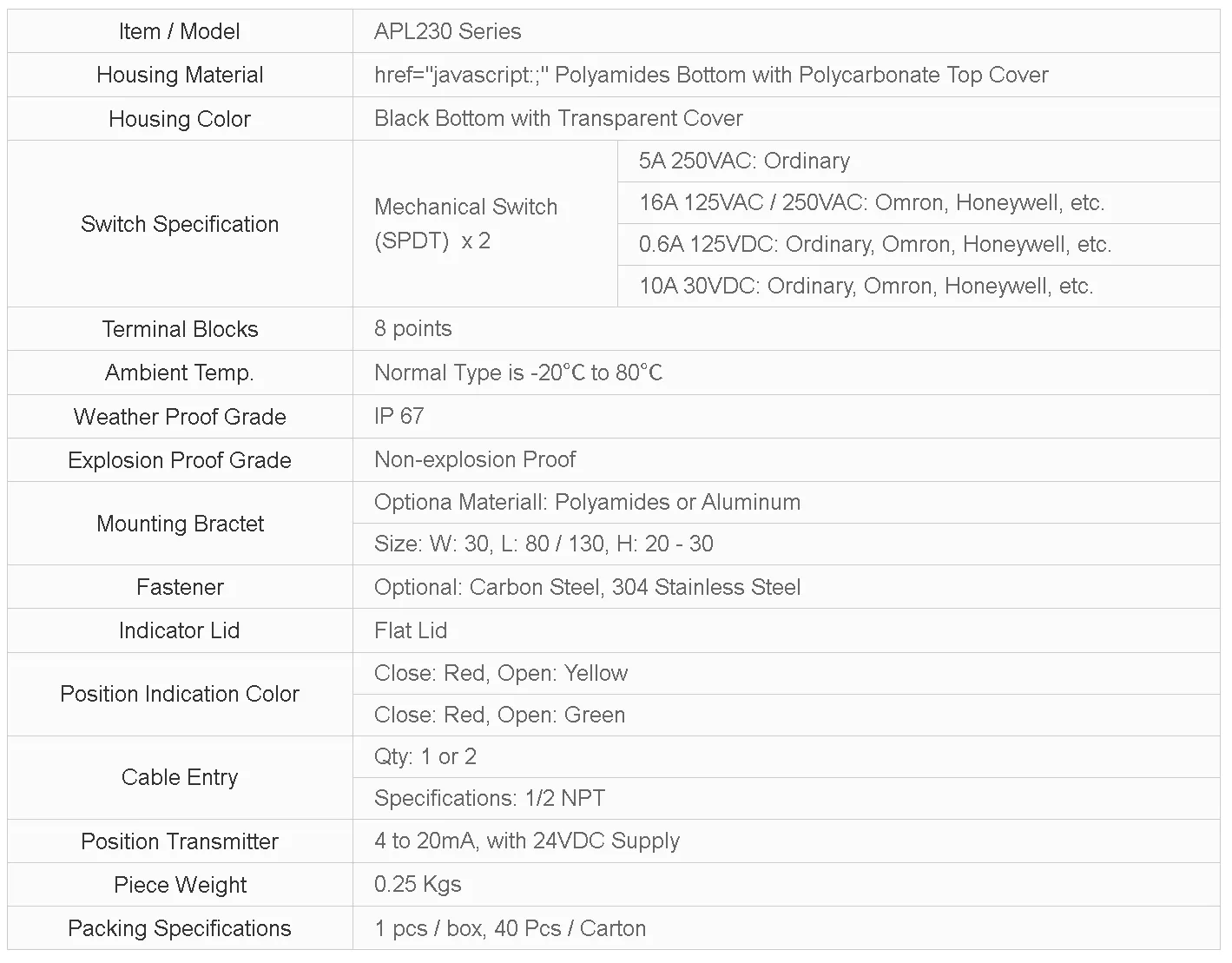

Technical Specifications
General Information
Model: APL230
Type: Waterproof Limit Switch Box
Function: Valve Position Indication (Open / Close)
Signal Output: ON / OFF
Protection Rating: IP67
Mounting Standard: NAMUR
Enclosure & Materials
Base Material: Polyamide
Cover Material: Transparent Polycarbonate
Indicator Type: Flat Lid or 3D Visual Indicator
Corrosion Resistance: Excellent (Suitable for salty and humid environments)
Installation & Wiring
Mounting: Integrated NAMUR mounting kit (Ready-to-mount)
Cable Entry:
One or Two Durable Threaded Cable Entries
Wiring: Terminal Block
Applications
Water Treatment Plants
Desalination Systems
Industrial Automation
HVAC Systems
General Valve Automation
