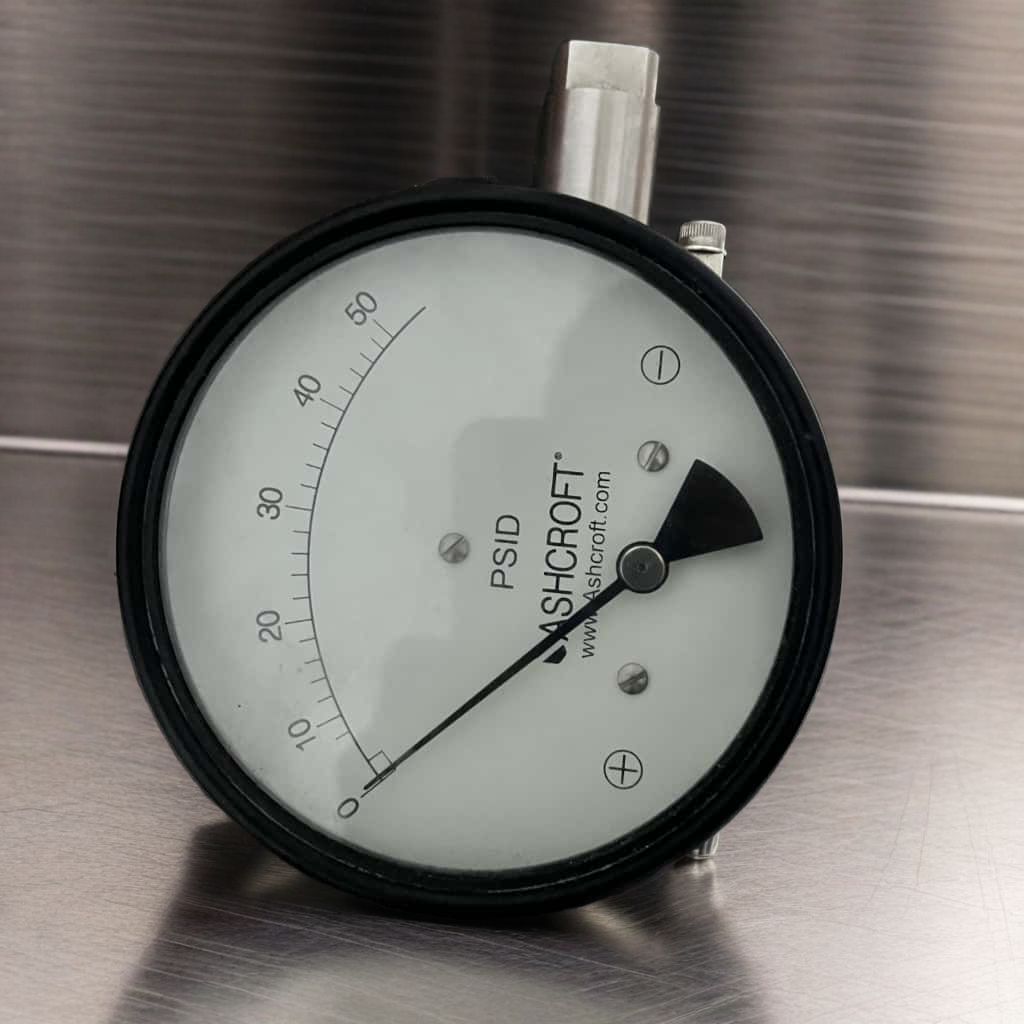

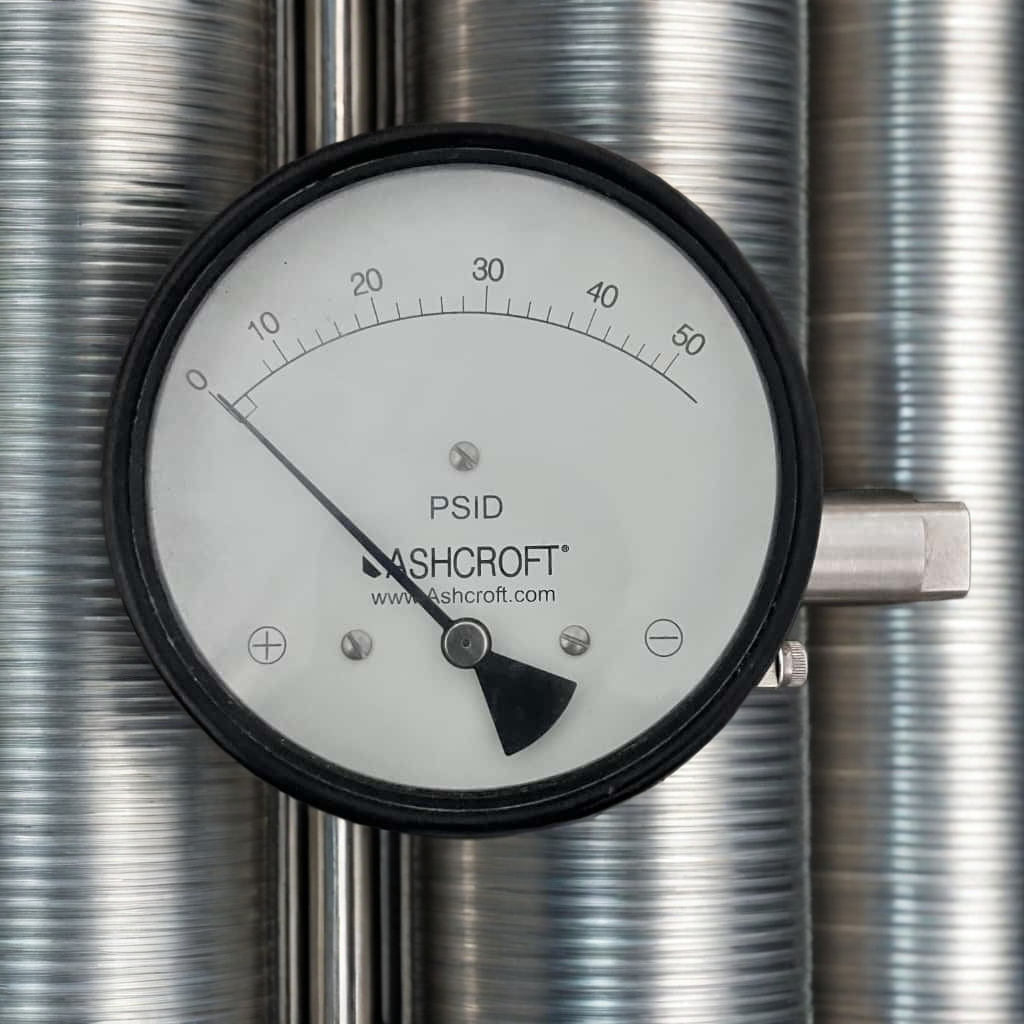

Ashcroft 1132 Differential Pressure Gauge
Rp123000.00
Ashcroft 1132 Differential Pressure Gauge
Description
The Ashcroft 1132 Differential Pressure Gauge is a diaphragm-type gauge designed to measure the difference between two pressures without allowing media migration. It provides accurate and reliable readings for monitoring flow, filtration, and level applications. The gauge features a robust design with magnetic pointer damping for smooth operation, and it can handle static pressures up to 1,500 psi. The 1132 Series offers excellent durability, compatibility with various media, and optional accessories such as reed switch contacts for control applications.
Specifications
Parameter | Specification |
Manufacturer / Brand | Ashcroft |

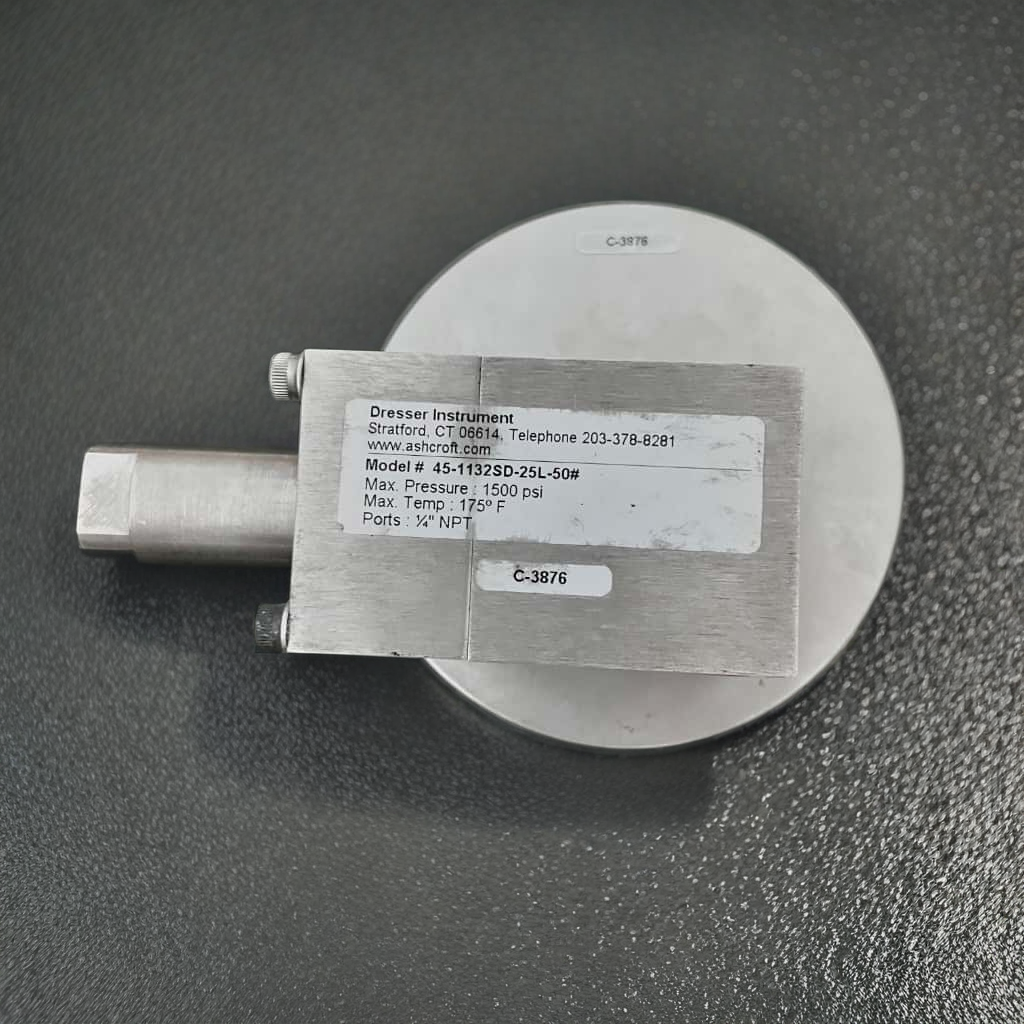

Model | 45-1132SD-25L-50 |
Type | Differential Pressure Gauge |
Maximum Static Pressure | 1,500 psi |
Maximum Process Temperature | 175 °F (80 °C) |
Process Connection / Ports | ¼″ NPT Female |
Accuracy | ±2 % of full scale |
Pressure Range (Differential) | Available from 0–1 psid to 0–60 psid |
Dial Sizes | 2½″, 3½″, 4″, 4½″, 6″ |
Mounting Options | Direct, pipe, surface, or panel mount |
Case Construction | Open-front case with isolated pressure chamber |
Ingress Protection | IP65 |
Window Material | Glass |
Wetted Parts | Stainless steel, aluminum, or brass with Buna, Viton, or EPDM diaphragms |
Pointer Damping | Magnetically damped for smooth indication |
Optional Features | Reed switch contacts for control and alarm applications |
