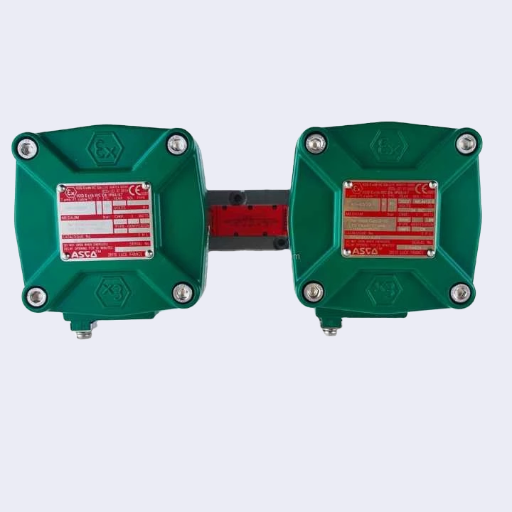

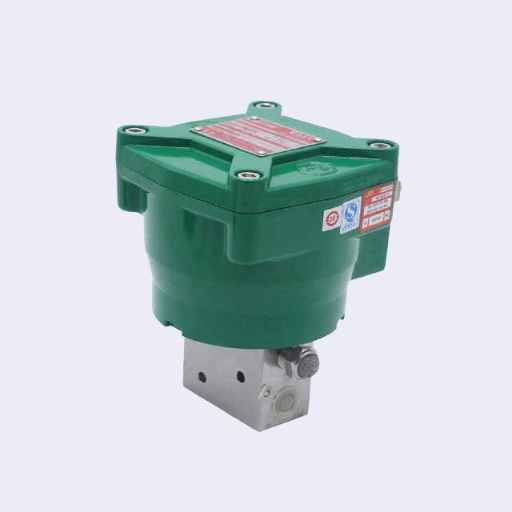

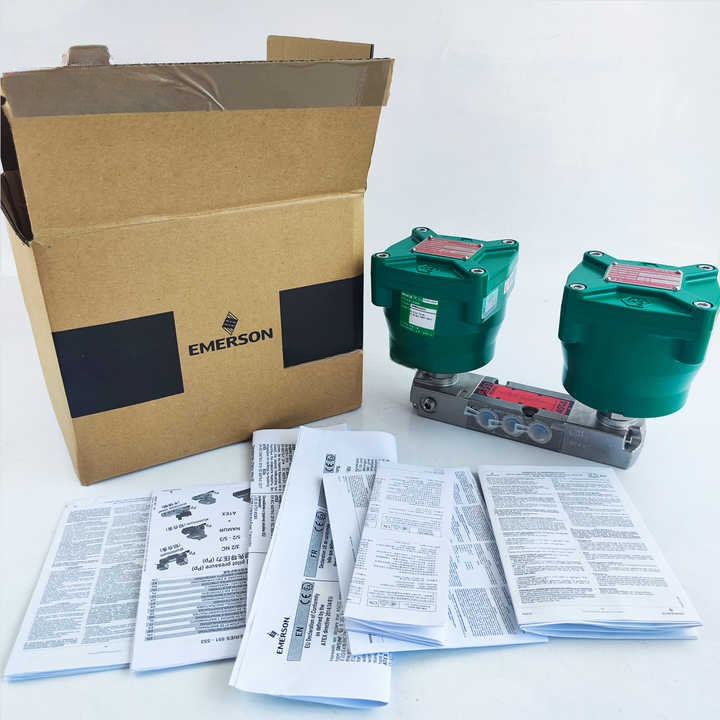

ASCO 24VDC NPTF 1/4" NF8551A322 Solenoid Valve

The ASCO 24VDC NPTF 1/4" NF8551A322 Solenoid Valve is a high-performance, direct-acting valve designed to control the flow of gases and liquids in various industrial applications. It is equipped with a 24V DC coil, providing efficient operation for systems requiring precise fluid control with low energy consumption. The valve is ideal for use in air, water, and other non-corrosive fluid applications where compactness, reliability, and cost-effectiveness are essential.

With a 1/4" NPTF (National Pipe Thread Fuel) threaded connection, the NF8551A322 is easy to integrate into a variety of pipeline systems. This solenoid valve offers fast response times, long service life, and is engineered to handle moderate pressure applications. Its durable construction and robust design make it suitable for a wide range of industrial environments.

Specifications

• Model: ASCO NF8551A322

• Valve Type: 2-way normally closed solenoid valve

• Coil Voltage: 24V DC

• Coil Power: Approximately 5.5 watts

• Connection Type: NPTF (National Pipe Thread Fuel)

• Connection Size: 1/4" NPTF

• Body Material: Brass or stainless steel (depending on application and media)

• Seal Material: NBR (Buna-N) or optional material depending on the fluid type

• Pressure Range:

  • Minimum Pressure: 0 psi (0 bar)

  • Maximum Pressure: 150 psi (10.3 bar)

• Temperature Range: -40°F to +140°F (-40°C to +60°C)

• Flow Capacity:

  • Cv: 0.25

• Enclosure Rating:

  • Coil Protection: IP65 (dust and water-resistant)

• Mounting: Can be mounted in any position for optimal performance

• Response Time: Typically less than 0.1 seconds

Key Features

1. Efficient Operation: 24V DC power supply ensures low energy consumption.

2. Reliable Performance: Ideal for controlling air, water, and non-corrosive liquids with excellent flow control.

3. Durable Construction: Brass or stainless steel body options offer resistance to corrosion and extended service life.

4. Compact Design: 1/4" NPTF connections make it suitable for space-limited installations.

5. Quick Response: Fast actuation times to ensure precise control in dynamic systems.

6. Flexible Mounting: Can be installed in any orientation, making it versatile for different system layouts.
