ARI Armaturen Control and Safety Valves

ARI TEMPTROL Thermal Closing Valve

Type: 22.772

The ARI TEMPTROL thermal closing valve is a precision-engineered temperature control solution designed for industrial and marine heating systems. It reduces the flow of fluid, gas, or vapor media as the sensor temperature rises, ensuring efficient heat regulation.

Key Features:

• Application: Heating systems for industrial and marine use

• Components: Bonnet valve, sensor, set-point indicator, capillary tube, actuator, and optional manual control

• Size Range: DN15 to DN200

• Kvs Value: Available in multiple options to suit flow requirements

• Material Options:

  • Carbon steel

  • Stainless steel

  • Cast iron

• Operation: Temperature-based automatic closing to optimize system performance

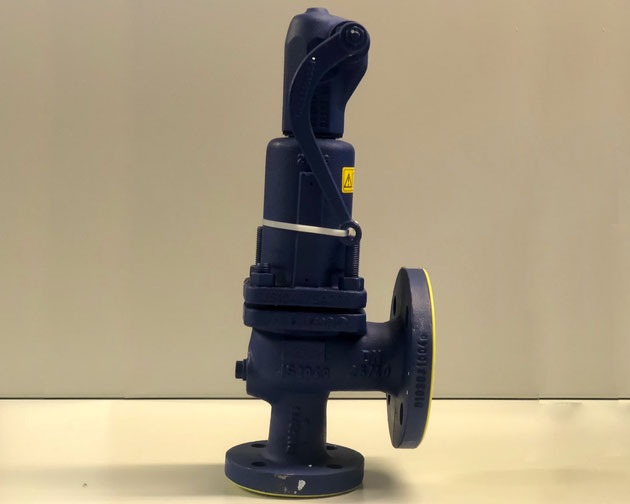

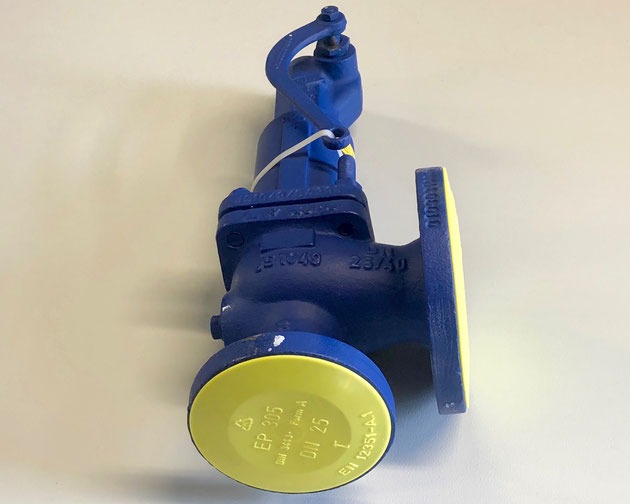

ARI-SAFE Full Lift Safety Valve

Type: 901

The ARI-SAFE full lift safety valve is a robust pressure protection device designed to prevent system overpressure. It ensures safe operation by relieving pressure when it exceeds the defined maximum limit.

Key Features:

• Application: Industrial systems requiring pressure relief

• Size Range: DN15 to DN250

• Pressure Ratings: Up to PN40

• Material Options:

  • Carbon steel

  • Stainless steel

  • Cast iron

• Operation: Automatically releases excess pressure to maintain system safety
