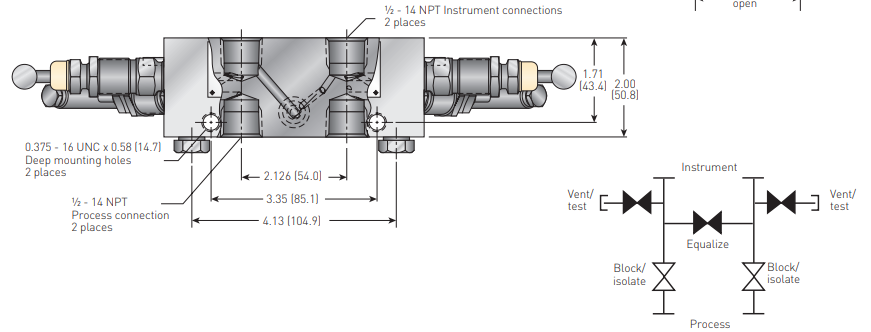

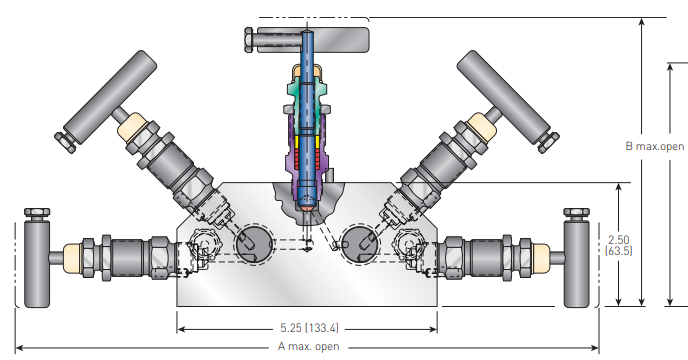

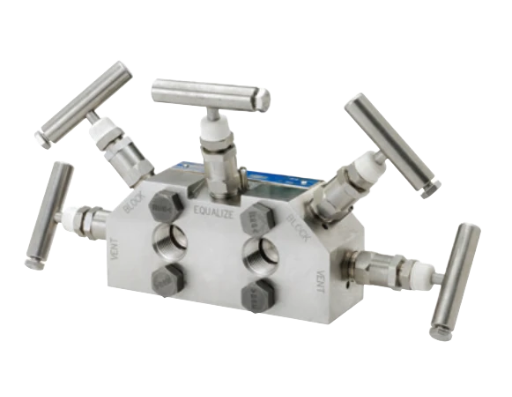

Anderson Greenwood MDP 5-Way Stainless Steel 316 Differential Pressure Manifold
Rp123000.00
The ANDERSON GREENWOOD MDP Differential Pressure Manifold is a 5-way manifold designed for use with differential pressure instruments. It facilitates isolation, venting, and equalizing functions to simplify instrument calibration and maintenance. The manifold body is constructed from high-quality stainless steel 316 (MC5G), providing excellent corrosion resistance and durability for demanding industrial applications.
Specifications
Parameter | Specification |
Model | MDP Differential Pressure Manifold |
Type | 5-Way Manifold |
Body Material | Stainless Steel 316 (MC5G) |
Pressure Rating | (Refer to catalog for exact rating, e.g., 6000 psi / 414 bar typical) |
Connection Size | (Specify per catalog, e.g., 1/4" or 1/2" NPT or as required) |
Port Connections | 5 Ports (Inlet, Outlet, Equalizer, Vent, Drain) |
Function | Isolation, Equalizing, Venting |
Temperature Range | (Refer catalog, typically -40°F to 400°F or -40°C to 204°C) |
Application | Differential Pressure Measurement in Process Industries |
Compliance / Standards | ASME B16.34, API 526 (if applicable) |
