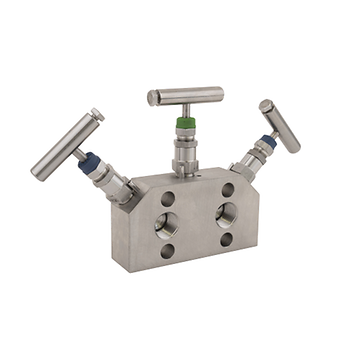

Anderson Greenwood MC3 3-Valve Manifold
Rp123000.00
The Anderson Greenwood MC3 3-Valve Manifold is a compact and reliable instrument manifold designed for use with differential pressure transmitters. It integrates two isolation valves and one equalizing valve, allowing for proper isolation, venting, and pressure equalization during calibration or maintenance. Manufactured from stainless steel 316, the MC3 manifold offers robust performance and corrosion resistance for use in demanding process environments.
Specifications
Parameter | Specification |
Model | MC3 |
Type | 3-Valve Differential Pressure Manifold |
Number of Valves | 3 (2 Isolation, 1 Equalizing) |
Body Material | Stainless Steel 316 |
Pressure Rating | Up to 6000 psi (414 bar) – depending on configuration |
Temperature Range | -54°C to 232°C (-65°F to 450°F) – with PTFE packing |

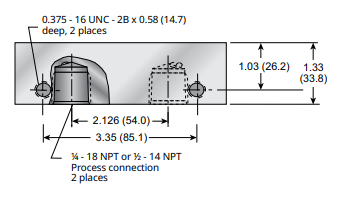

Connection Size | Typically 1/4" or 1/2" NPT (as per configuration) |
Mounting Style | Direct or remote mounting to transmitter |
Application | Differential pressure measurement and calibration |
Standards & Compliance | ASME B31.1, B31.3, and ANSI/FCI specifications |
